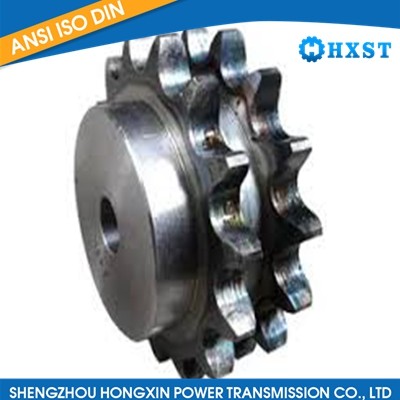

100B-2 Stock Sprocket

Description

100B-2 stock sprocket is a specific type of sprocket that features a standard configuration. Here are some key features of the 100B-2 stock sprocket:

Standard Sprocket Design: The "stock" designation indicates that the sprocket has a commonly used and readily available design.

100B-2 Designation: The "100B-2" designation specifies the specific model or part number for the stock sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 100B-2 stock sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Stock sprockets like the 100B-2 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Stock sprockets are commonly used in a wide range of power transmission systems across various industries. They are suitable for applications such as machinery, conveyors, agricultural equipment, or industrial machinery.

Product details

(Dimension : inch)

No. Teeth Outside Diameter Do Bore (Inches) Hub (Inches) Weight Lbs. (App) Stock d Rec. Max. Dia. BD Length Thru BL 8 3.770 1 1 1/4 2 7/16* 1 7/8 2.3 9 4.180 1 1 5/8 2 13/16* 1 7/8 3.2 10 4.600 1 1 7/8 3 1/4* 1 7/8 4.1 11 5.010 1 2 1/4 3 9/16* 1 7/8 5.3 12 5.420 1 2 1/4 4* 1 7/8 6.4 13 5.820 1 2 3/8 3 7/8 1 5/8 6.6 14 6.230 1 1/4 2 3/4 4 3/16 1 5/8 7.4 15 6.630 1 1/4 3 4 1/2 1 3/4 9.2 16 7.030 1 5/16 3 4 1/2 1 3/4 9.9 17 7.440 1 5/16 3 4 1/2 1 3/4 10.8 18 7.840 1 5/16 3 4 1/2 1 3/4 11.5 19 8.240 1 5/16 3 4 1/2 2 13.1 20 8.640 1 5/16 3 4 1/2 2 14.2 21 9.040 1 5/16 3 4 1/2 2 15.3 22 9.440 1 5/16 3 4 1/2 2 16.1 23 9.840 1 1/4 3 4 1/2 2 17.2 24 10.250 1 1/4 3 4 1/2 2 19.2 25 10.650 1 1/4 3 4 1/2 2 19.5 26 11.050 1 1/4 3 5/16 5 2 21.7 27 11.440 1 1/4 3 5/16 5 2 23.0 28 11.840 1 1/4 3 5/16 5 2 24.4 29 12.240 1 1/4 3 5/16 5 2 25.0 30 12.640 1 1/4 3 5/16 5 2 26.9 32 13.440 1 1/4 3 5/16 5 2 29.8 35 14.640 1 1/4 3 5/16 5 2 1/2 36.9 36 15.040 1 1/4 3 5/16 5 2 1/2 38.6 38 15.840 1 1/4 3 5/16 5 2 1/2 41.5 39 16.230 1 1/4 3 5/16 5 2 1/2 43.6 40 16.630 1 1/4 3 5/16 5 2 1/2 46.9 42 Related Products ANSI 35A-1 40T Plate wheels Sprocket ANSI 40A-3 17T Triplex Plate wheel chain sprocket UCC 200 Pillow Block Bearing 2 Plate & 2 Plain Universal Joint ANSI 35B-2 38T Double Chain Sprocket Large Diameter Duplex Chain Sprocket
