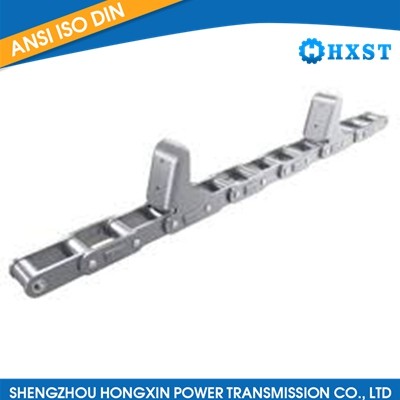

ZGS38 Combine Harvester Chain
  1. ZGS38 Combine Harvester Chain

ZGS38 Combine Harvester Chain

Product Item:HXPT-312

Model: ZGS38 Combine Harvester Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

ZGS38 Combine Harvester Chain
Send Inquiry Live chat

Description

ZGS38 Combine Harvester Chain

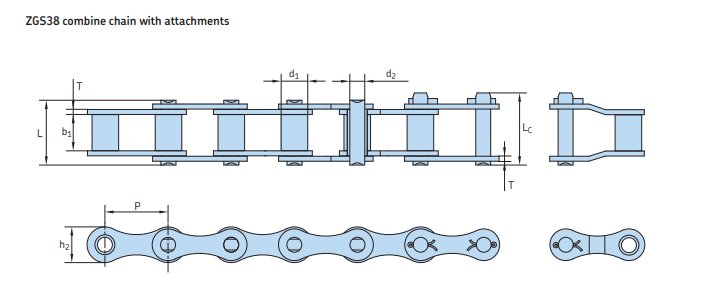

ZGS38 Combine harvester chain

Chain  no. Pitch Roller
Diameter
Width
Between
Inner plate
Pin
Diameter
Pin
Length
Plate
Diamension
Ultimate
Tensile
Strength
Average
Tensile
Strength
Weight
Per
Meter
p D1
Max
B1
min
D2
Max
L
Max
Lc
Max

H2
Max

T
Max

Q
Min
q
mm mm Mm Mm mm mm Mm mm KN/LB KN Km/m
ZGS38 38.00 16.00 22.00 9.00 39.00 43.00

21.5

3.0

8.00/1818

40.0/9091

2.00
