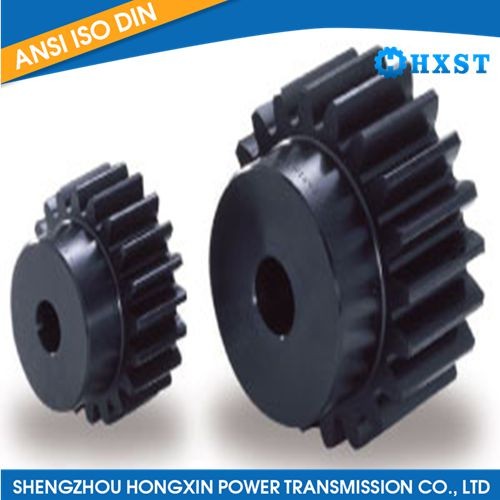

16DP Steel Stock Spur Gears 20°Pressure Angle   - Image 1
  1. 16DP Steel Stock Spur Gears 20°Pressure Angle   - Image 1

16DP Steel Stock Spur Gears 20°Pressure Angle

Product Item:HXST-1015

Model: 16DP Steel Stock Spur Gears 20°Pressure Angle

Material: These spur gears are typically made from high-quality steel material, known for its strength, durability, and resistance to wear and tear. Steel is a common choice due to its ability to hand

Size Range: 16DP Steel Stock Spur Gears are available in a range of sizes, allowing for flexibility in gear selection based on the specific application requirements. The sizes typically range from

Precision and Tolerance: These gears are manufactured with high precision and adhere to industry-standard tolerances. This ensures smooth operation, minimal backlash, and efficient power transmission

16DP Steel Stock Spur Gears 20°Pressure Angle , 16 dp gear , steel spur gears , 20 degree pressure angle
Send InquiryLive chat

Description

16DP Steel Stock Spur Gears with a 20° Pressure Angle are another type of gear commonly used in mechanical systems. Here is some information about them:

DP: DP stands for Diametral Pitch, which is a unit used to measure the size and spacing of gear teeth. In this case, the gears have a Diametral Pitch of 16, meaning there are 16 teeth per inch of gear diameter.

Steel: These gears are made of steel, a strong and durable material known for its high strength and resistance to wear and tear. Steel gears are widely used in various applications due to their reliability and durability.

Spur Gears: Spur gears are cylindrical gears with straight teeth that run parallel to the gear axis. They are designed to transmit motion and power between parallel shafts accurately and efficiently.

20° Pressure Angle: The pressure angle refers to the angle at which the gear teeth exert force on each other. A 20° pressure angle is a standard angle used in many gear designs. It determines the shape and profile of the gear teeth, allowing them to mesh smoothly and transmit power effectively.

These 16DP Steel Stock Spur Gears with a 20° Pressure Angle can be utilized in various applications such as machinery, automotive systems, industrial equipment, robotics, and more. They offer reliable and efficient power transmission while maintaining the durability and strength associated with steel gears.
