Product Item:HXPT-287

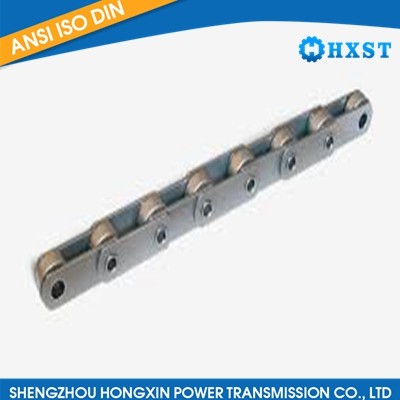

Model:Hollow Pin Chain
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
For food handling conveyors, Hollow Pin Chain are available in ANSI standard short pitch series (40HP - 80HP), double pitch series with standard rollers (C2040HP - C2080HP), and large rollers (C2042HP - C2082HP). Attachments or cross-rods can be inserted at any desired spacing, which provided great design versatility. Changes can be made without removing the chain from the conveyor.
|

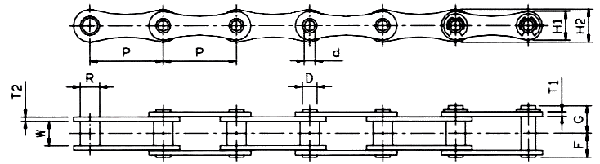

CHAIN NO. (ANSI) |
Pitch | Width | Roller | Plate | Pin |
Average Ultimate Strength kgf |
Approx Weight kg/m |
|||||||
|
P |
W | Dia |
Height |
Thickness |
Dia |
Lengths |
||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | d(min) | F | G | |||
| 40HP | 1/2" | 12.70 | 7.94 | 7.92 | 10.20 | 11.80 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.4 | 1300 | 0.5 |
| 50HP | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 0.8 |
| 60HP | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 2.40 | 2.40 | 8.12 | 5.99 | 12.40 | 14.25 | 3050 | 1.18 |
| 80HP | 1" | 25.40 | 15.88 | 15.88 | 20.80 | 24.00 | 3.10 | 3.10 | 11.27 | 8.02 | 16.30 | 17.75 | 5800 | 2.10 |
| 08BHP | 1/2" | 12.70 | 7.75 | 8.51 | 10.60 | 11.80 | 1.50 | 1.50 | 6.11 | 4.50 | 8.20 | 9.30 | 1500 |
0.63 |

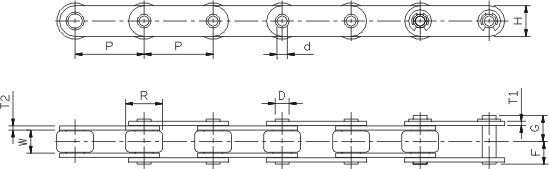

DOUBLE PITCH HOLLOW PIN CHAIN
|
CHAIN NO. (ANSI) |
Pitch | Width | Roller | Plate | Pin |
Average Ultimate Strength kgf |
Approx Weight kg/m |
||||||
|
P |
W | Dia | Height |
Thickness |
Dia |
Lengths |
|||||||
| inch | mm | mm | R | H | T1 | T2 | D | d(min) | F | G | |||
| C2040HP | 1" | 25.40 | 7.94 | 7.92 | 11.70 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.40 | 1300 | 0.45 |
| C2050HP | 1-1/4" | 31.75 | 9.53 | 10.16 | 14.60 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 0.74 |
| C2060HP | 1-1/2" | 38.10 | 12.70 | 11.91 | 17.10 | 2.40 | 2.40 | 8.12 | 5.99 | 12.40 | 14.25 | 3050 | 1.10 |
| C2080HP | 2" | 50.80 | 15.88 | 15.88 | 23.00 | 3.10 | 3.10 | 11.27 | 8.02 | 16.30 | 17.75 | 5800 | 1.95 |
|
CHAIN NO. (ANSI) |
Pitch | Width | Roller | Plate | Pin |
Average |
Approx Weight |
||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | |||||||
| inch | mm | mm | R | H | T1 | T2 | D | d(min) | F | G | |||
| C2042HP | 1" | 25.40 | 7.94 | 15.88 | 11.70 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.40 | 1300 | 0.78 |
| C2052HP | 1-1/4" | 31.75 | 9.53 | 19.05 | 14.60 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 1.23 |
| C2062HP | 1-1/2" | 38.10 | 12.70 | 22.23 | 17.10 | 2.40 | 2.40 | 8.12 | 5.99 | 12.40 | 14.25 | 3050 | 1.76 |
| C2082HP | 2" | 50.80 | 15.88 | 28.58 | 23.00 | 3.10 | 3.10 | 11.27 | 8.02 | 16.30 | 17.75 | 5800 |
3.14 |
|
CHAIN NO. (ANSI) |
Pitch | Width | Roller | Plate | Pin |
Average Ultimate Strength kgf |
Approx Weight kg/m |
|||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | d(min) | F | G | |||
| A2040HP | 1" | 25.40 | 7.94 | 7.92 | 10.10 | 11.70 | 1.50 | 1.50 | 5.58 | 4.00 | 7.90 | 9.40 | 1300 | 0.43 |
| A2050HP | 1-1/4" | 31.75 | 9.53 | 10.16 | 12.60 | 14.60 | 2.00 | 2.00 | 7.01 | 5.12 | 9.90 | 11.65 | 2000 | 0.72 |
HP chain standard is rollerless,R indicates bushing diameter.
