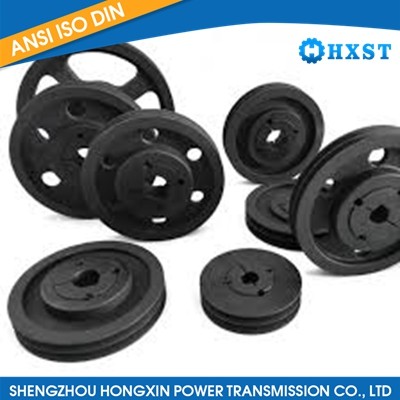

SPA-2 Taper Bore Pulley
  1. SPA-2 Taper Bore Pulley

SPA-2 Taper Bore Pulley

Product Item:HXPT-198

Model:SPA-2 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPA-2 Taper Bore Pulley
Send Inquiry Live chat

Description

Product details

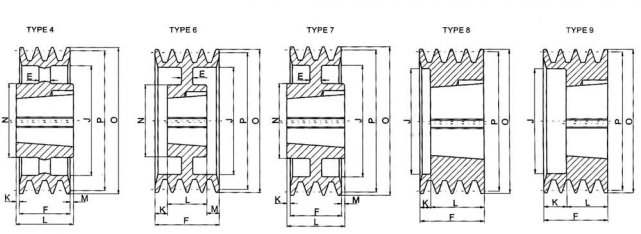

TAPER BORE PULLEYS SPA-2

SPA-2

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spa 63-2 63.0 68.5 9 1108 28 - 55 36 33 22 - -
spa 67-2 67.0 72.5 8 1108 28 - 35 37 13 22 - -
spa 71-2 71.0 76.5 8 1108 28 - 35 40 13 22 - -
spa 75-2 75.0 80.5 8 1108 28 - 35 44 10 25 - -
spa 80-2 80.0 85.5 8 1210 32 - 35 47 10 25 - -
spa 85-2 85.0 90.5 8 1210 32 - 35 50 10 25 - -
spa 90-2 90.0 95.5 8 1610 42 - 35 60 10 25 - -
spa 95-2 95.0 100.5 8 1610 42 - 35 64 10 25 - -
spa 100-2 100.0 105.5 8 1610 42 - 35 70 10 25 - -
spa 106-2 106.0 111.5 8 1610 42 - 35 76 10 25 - -
spa 112-2 112.0 117.5 8 1610 42 - 35 80 10 25 - -
spa 118-2 118.0 123.5 8 1610 42 - 35 86 10 25 - -
spa 125-2 125.0 130.5 8 1610 42 - 35 90 10 25 - -
spa 132-2 132.0 137.5 8 2012 50 - 35 98 3 32 - -
spa 140-2 140.0 145.5 8 2012 50 - 35 106 3 32 - -
spa 150-2 150.0 155.5 8 2012 50 - 35 116 3 32 - -
spa 160-2 160.0 165.5 8 2012 50 15 35 125 3 32 - -
spa 170-2 170.0 175.5 8 2012 50 15 35 135 3 32 - -
spa 180-2 180.0 185.5 6 2012 50 15 35 148 1.5 32 1.5 100
spa 190-2 190.0 195.5 6 2012 50 15 35 158 1.5 32 1.5 100
spa 200-2 200.0 205.5 7 2517 60 15 35 165 5 45 5 120
spa 224-2 224.0 229.5 7 2517 60 15 35 189 - 45 10 120
spa 250-2 250.0 255.5 7 2517 60 20 35 215 5 45 5 120
spa 280-2 280.0 285.5 7 2517 60 20 35 245 - 45 10 120
spa 315-2 315.0 320.5 4 2517 60 - 35 280 - 45 10 120
spa 355-2 355.0 360.5 4 2517 60 - 35 320 - 45 10 120
spa 400-2 400.0 405.5 4 2517 60 - 35 365 - 45 10 120
spa 450-2 450.0 455.5 4 2517 60 - 35 465 - 45 10 120
spa 500-2 500.0 505.5 4 3020 75 - 35 525 - 51 16 150
spa 630-2 630.0 635.5 4 3020 75 - 35 595 - 51 16 150
