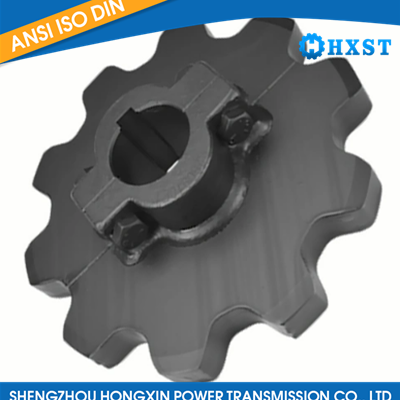

Assemble the sprocket of Engineer Cass Conveyor Sprocket
  1. Assemble the sprocket of Engineer Cass Conveyor Sprocket

Assemble the sprocket of Engineer Cass Conveyor Sprocket

Product Item:HXST-8012

ModeI:Assemble the sprocket of Engineer Cass Conveyor Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Assemble the sprocket of Engineer Cass Conveyor Sprocket
Send InquiryLive chat

Description

Assembling a Conveyor Sprocket:


Gather Components:

Collect the sprocket components including the sprocket wheel, hub, fastening hardware (such as bolts or set screws), and any additional components required for assembly.
Prepare the Shaft:

Ensure the conveyor shaft or drive shaft is clean and free of debris. Check the shaft dimensions to ensure proper fitment with the sprocket hub.
Position the Sprocket Wheel:

Place the sprocket wheel over the shaft, ensuring it aligns with the keyway or flat surfaces on the shaft if present.
Install the Hub:

Slide the hub onto the shaft, aligning it with the sprocket wheel. Ensure the hub fits snugly against the sprocket without any misalignment.
Secure the Sprocket and Hub:

Use the appropriate fastening hardware (such as bolts or set screws) to secure the sprocket wheel to the hub and the hub to the shaft. Tighten the fasteners to the manufacturer's specifications.
Check Alignment:

Verify that the sprocket wheel is aligned with the Conveyor Chain or belt for proper engagement. Ensure the sprocket rotates freely without any obstructions.
Tension Adjustment (if applicable):

If the conveyor system requires tension adjustment, follow the manufacturer's guidelines to set the correct tension on the conveyor chain or belt.
Test Operation:

Rotate the conveyor system by hand or activate the drive mechanism to ensure the sprocket rotates smoothly and the conveyor chain or belt moves without issues.
Final Inspection:

Conduct a final inspection to confirm that the sprocket is securely assembled, aligned correctly, and ready for operation in the conveyor system.
Please note that these steps are general guidelines and may vary based on the specific design and requirements of the conveyor sprocket and system. It's important to refer to the manufacturer's instructions and guidelines for the specific sprocket being assembled.
