100A-1 Plate Wheel Sprocket

Description

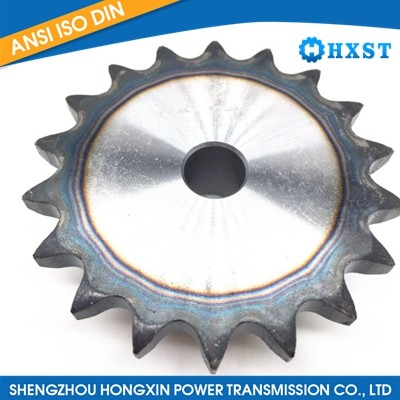

100A-1 plate wheel sprocket is a specific type of sprocket that features a plate wheel design. Here are some key features of the 100A-1 plate wheel sprocket:

Plate Wheel Design: The "plate wheel" designation indicates that the sprocket has a design where the teeth are formed directly on a flat plate. This design allows for easy attachment to various equipment or machinery.

100A-1 Designation: The "100A-1" designation specifies the specific model or part number for the plate wheel sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 100A-1 plate wheel sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Plate wheel sprockets like the 100A-1 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Plate wheel sprockets are commonly used in power transmission systems where precise positioning or easy mounting is required. The 100A-1 plate wheel sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.

Product details

(Dimension : mm)

Related Products

High Quality Press Machine for 1000t Customized Machine Good Molds

SPZ-4 Taper Bore Pulley

ANSI 35A-3 41T Plate wheels Triplex sprocket

#80 Roller Chain With A1 Attachment

45TI Equal Impact Idlers

ANSI 35A-2 37T Plate wheels double Sprocket

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d		Weight (kg)	Material	Teeth
Type	Teeth			Stock Bore	Min.
K100A	10	117	102.74	20	22	1.10	Mild Steel	10
	11	127	112.70	20	22	1.30		11
	12	138	122.67	20	22	1.60		12
	13	148	132.67	20	22	1.90		13
	14	158	142.68	20	22	2.15		14
	15	168	152.71	20	22	2.50		15
	16	179	162.74	20	22	2.83		16
	17	189	172.79	20	22	3.20		17
	18	199	182.84	20	22	3.60		18
	19	209	192.90	20	22	4.00		19
	20	220	202.96	20	22	4.40		20
	21	230	213.03	20	22	4.90		21
	22	240	223.10	20	22	5.35		22
	23	250	233.17	20	22	5.80		23
	24	260	243.25	20	22	6.40		24
	25	270	253.32	20	22	6.90		25
	26	281	263.40	20	22	7.50		26
	27	291	273.49	20	22	8.10		27
	28	301	283.57	20	22	8.70		28
	29	311	293.66	20	22	9.30		29
	30	321	303.75	26	28	10.00		30
	31	331	313.83	26	28	10.63		31
	32	341	323.92	26	28	11.35		32
	33	352	334.01	26	28	12.00		33
	34	362	344.11	26	28	12.80		34
	35	372	354.20	26	28	13.50		35
	36	382	364.29	26	28	14.40		36
	37	392	374.38	26	28	15.10		37
	38	402	384.48	26	28	16.00		38
	39	412	394.57	26	28	16.80		39
	40	422	404.67	26	28	17.70		40
	41	433	414.77	26	28	18.60		41
	42	443	424.86	26	28	19.50		42
	43	453	434.96	26	28	20.50		43
	44	463	445.06	26	28	21.45		44
	45	473	455.16	26	28	22.40		45
	46	483	465.25	26	28	23.40		46
	48	503	485.45	26	28	25.50		48
	50	524	505.65	26	28	27.70		50
	52	544	525.85	26	28	29.90		52
	54	564	546.05	26	28	32.30		54
	55	574	556.15	26	28	33.00		55
	60	625	606.66	26	28	39.90		60
	65	675	657.17	26	28	46.80
