Product Item:HXPT-144

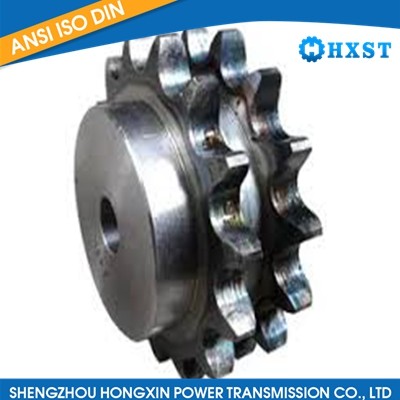

Model:160B-2 Stock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. Teeth |
Outside Diameter Do |
Bore (Inches) | Hub (Inches) |
Weight Lbs. (App) |
||
|
Stock d |
Rec Max. |
Dia. BD |
Length Thru BL |
|||
| 8 | 6.030 | 1 1/2 | 1 7/8 | 3 1/4 | 2 1/4 | 8.0 |
| 9 | 6.700 | 1 1/2 | 2 1/8 | 3 5/8 | 2 1/4 | 10.0 |
| 10 | 7.360 | 1 1/2 | 2 3/4 | 4 1/8 | 2 1/4 | 12.0 |
| 11 | 8.010 | 1 1/2 | 3 1/4 | 4 3/4 | 2 1/2 | 17.0 |
| 12 | 8.660 | 1 1/2 | 3 3/4 | 5 1/2 | 2 1/2 | 21.0 |
| 13 | 9.310 | 1 1/2 | 4 | 6 | 2 3/4 | 28.0 |
| 14 | 9.960 | 1 1/2 | 4 1/2 | 6 1/2 | 2 3/4 | 32.0 |
| 15 | 10.610 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 37.0 |
| 16 | 11.260 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 41.0 |
| 17 | 11.900 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 45.0 |
| 18 | 12.540 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 48.0 |
| 19 | 13.190 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 52.0 |
| 20 | 13.830 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 56.0 |
| 21 | 14.470 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 59.0 |
| 22 | 15.110 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 65.0 |
| 23 | 15.750 | 1 1/2 | 5 1/4 | 7 | 2 3/4 | 68.0 |
| 24 | 16.390 | 1 1/2 | 5 1/4 | 7 | 3 | 77.0 |
| 25 | 17.030 | 1 1/2 | 5 1/4 | 7 | 3 | 81.0 |
| 26 | 17.670 | 1 1/2 | 5 1/4 | 7 | 3 | 86.0 |
| 27 | 18.310 | 1 1/2 | 5 1/4 | 7 | 3 | 91.0 |
| 28 | 18.950 | 1 1/2 | 5 1/4 | 7 | 3 | 98.0 |
| 30 | 20.230 | 1 1/2 | 5 1/4 | 7 | 3 |
108 |
