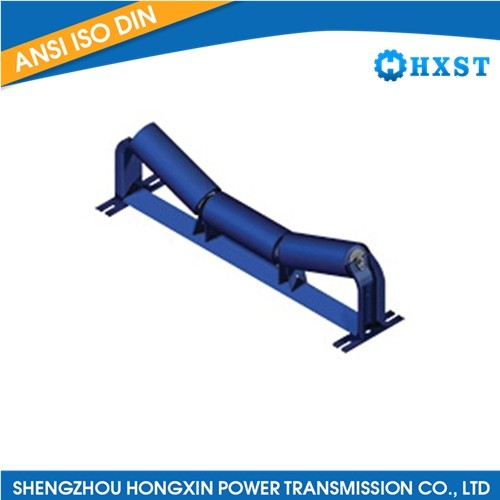

35U Unequal Steel Idlers

Product Item:HXST-1607

Model: 35U Unequal Steel Idlers

Material: The 35U Unequal Steel Idlers are primarily made from high-quality steel material. Steel provides excellent strength, durability, and resistance to wear and tear, making it suitable for deman

Load Capacity: These idlers are designed to handle various load capacities, depending on their size, construction, and application requirements. It's important to select the appropriate idler based on

Benefits: The 35U Unequal Steel Idlers offer several benefits, including improved belt alignment, reduced friction and wear, increased conveyor system efficiency, and extended belt lifespan. The steel

Description

35U Unequal Steel Idlers

The 35U Unequal Steel Idlers are a type of idler roller commonly used in conveyor systems. These idlers are specifically designed with an unequal roll diameter to handle uneven loads and provide support to the conveyor belt.

Here are some key features and characteristics of the 35U Unequal Steel Idlers:

Unequal Roll Diameter: The 35U idlers have a larger roll diameter on one end compared to the other. This design helps to distribute the load more evenly across the idler and minimize the impact force on the belt when it encounters unevenly distributed or heavy loads.

Steel Construction: These idlers are constructed using high-quality steel material, which ensures strength, durability, and resistance to wear and tear. The robust construction allows them to withstand heavy loads and harsh operating conditions.

Impact Resistance: The 35U idlers are built to handle impact forces generated by heavy or irregularly shaped materials. They are designed to absorb and dissipate the impact energy, protecting both the conveyor belt and the idler from damage.

Sealed Bearings: To enhance reliability and reduce maintenance needs, the 35U idlers are equipped with sealed bearings. Sealed bearings protect against contaminants such as dust, dirt, and moisture, ensuring smooth operation and prolonging the service life of the idlers.

Customizable Options: The 35U Unequal Steel Idlers can be customized to fit specific conveyor system requirements. They are available in various roll diameters, widths, and trough angles to accommodate different load capacities and belt widths.

These idlers play a critical role in providing support and minimizing the impact of uneven loads on conveyor belts, ensuring smooth and efficient operation of the conveyor system while extending its lifespan.
