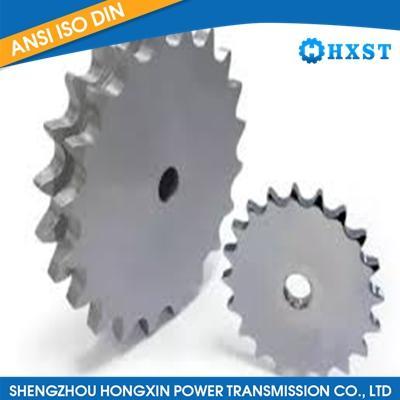

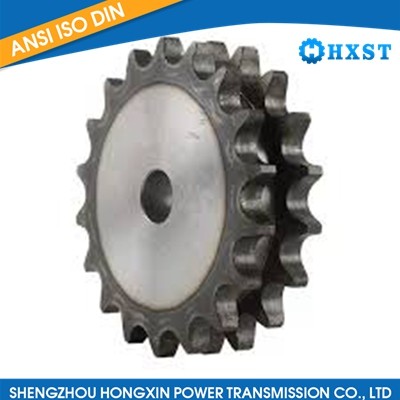

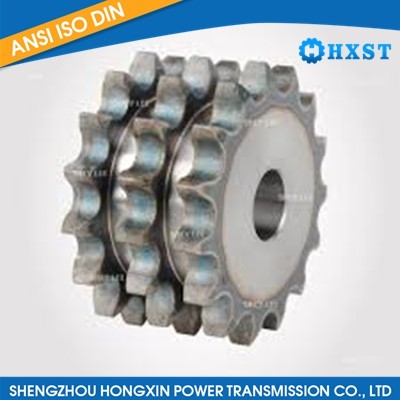

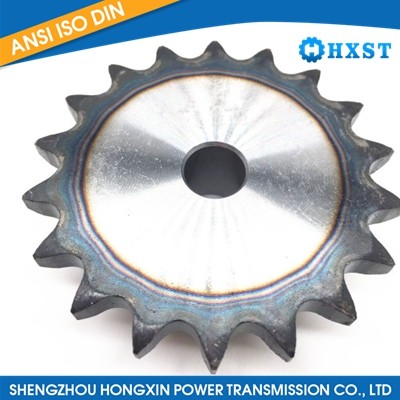

28A 1-2-3 Plate wheel Sprocket

Product Item:HXST-008

28A 1-2-3 Plate wheel Sprocket

C45, stainless steel, etc.

Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Standard export case, individual package (neutral or colorbox) available.

28a 1-2-3 plate wheel sprocket , plate sprockets , a plate sprocket
Send InquiryLive chat

DescriptionQuick Answers

28A-1-2-3 Platewheels Sprocket

28A single, double and triple plate wheel sprockets are manufactured to ISO/R 606 and DIN 8187 standards and are suitable for 1 3/4" × 1 1/4" roller chains. These sprockets are widely used in power transmission equipment, providing stable transmission, high precision and full interchangeability.

For quotations or further technical information, please contact us and we will be pleased to assist you.

Key Features

  • Single / double / triple stock bore plate sprocket
  • High-precision tooth profile
  • Interchangeable with standard brands
  • OEM service available

28A-1-2-3 Platewheels Dimensions

PLATEWHEELS 1 3/4" × 1 1/4" | For chain according to DIN 8187, ISO/R 606
Tooth radius r₃ 44 mm

28A 1-2-3 plate wheel sprocket detail highlighting roller chain engagement teeth


Chain Pitch: 44.45 mm
Internal width: 30.99 mm
Roller Φ: 27.94 mm
Radius width C 5 mm
Tooth width B₁ 29.4 mm
Tooth width b₁ 28.8 mm
Tooth width B₂ 88.4 mm
Tooth width B₃ 148 mm

Dimension Table by Number of Teeth

Z dₐ dₚ S (D₁) D (D₂) T (D₃)
8 132.0 116.15 20 25 25
9 148.4 129.96 20 25 25
10 162.3 143.85 20 25 25
11 176.3 157.77 25 25 30
12 189.5 171.74 25 25 30
13 204.2 185.74 25 25 30
14 218.2 199.76 25 25 30
15 232.3 213.79 25 25 30
16 246.3 227.84 30 30 30
17 260.0 241.91 30 30 30
18 274.0 255.98 30 30 30
19 289.0 270.06 30 30 30
20 303.0 284.15 30 30 30
21 317.0 298.24 30 30 30
22 331.0 312.34 30 30 30
23 345.0 326.44 30 30 30
24 359.0 340.55 30 30 30
25 373.0 354.66 30 30 40
26 387.0 368.77 30 30 40
27 401.4 382.88 30 30 40
28 416.0 397.00 30 30 40
29 430.0 411.12 30 30 40
30 444.0 425.24 30 30 40
31 458.0 439.37 30 30 40
32 472.0 453.49 30 30 40
33 486.0 467.62 30 30 40
34 500.0 481.75 30 30 40
35 514.0 495.88 30 30 40
36 529.0 510.01 30 30 40
37 543.0 524.14 30 30 40
38 557.0 538.27 30 30 40
39 571.0 552.40 30 30 40
40 585.0 566.54 30 30 40
45 656.0 637.22 30 30 40
50 726.0 707.91 30 30 40
57 825.0 806.89 40 40 40
60 869.0 849.32 40 40 40
76 1095.0 1075.60 40 40 40

What is 28A 1-2-3 Plate wheel Sprocket?

The 28A 1-2-3 Plate wheel Sprocket (Item No. HXST-008) from Shengzhou Hongxin Transmission Co., Ltd is a roller chain sprocket for 1 3/4" × 1 1/4" chains, manufactured to ISO/R 606 and DIN 8187 dimensions. It is offered in single, double and triple plate wheel configurations with a high-precision tooth profile and full interchangeability with standard brands. Standard material is C45 carbon steel, with stainless steel and other materials available on request. Surface treatment options include hardened teeth, black oxide, zinc plating and electrophoresis.

Applications

  • Power transmission equipment using 1 3/4" × 1 1/4" roller chains
  • Single, double and triple strand drive arrangements
  • Industrial machinery requiring stable, high-precision chain drives
  • Replacement of standard-brand plate wheel sprockets
  • OEM transmission assemblies

FAQ

What chain size does the 28A plate wheel sprocket fit?

It is designed for 1 3/4" × 1 1/4" roller chains and manufactured to ISO/R 606 and DIN 8187 standards.

Is the sprocket available in single, double and triple versions?

Yes. The 28A is offered as single, double and triple plate wheel sprockets with stock bore.

What materials and surface treatments are available?

Standard material is C45 steel, with stainless steel and other materials available. Surface treatment options include hardened teeth, black oxide, zinc plating and electrophoresis.

Can the sprocket be customized or supplied as OEM?

OEM service is available; please contact Shengzhou Hongxin Transmission Co., Ltd with your requirements for details.

How is the product packaged?

Standard export case packaging is used, with individual neutral or colorbox packaging available.
