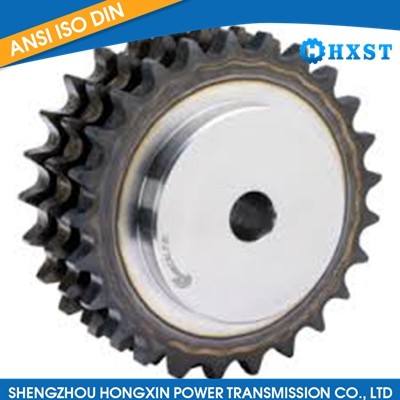

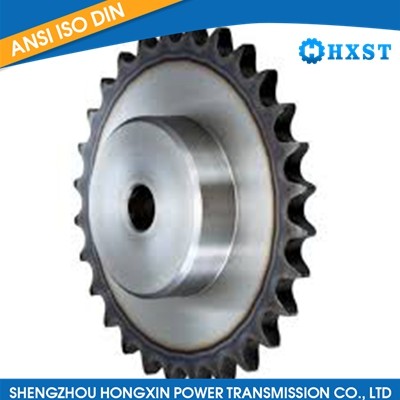

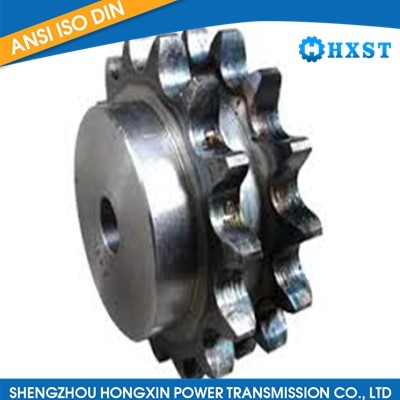

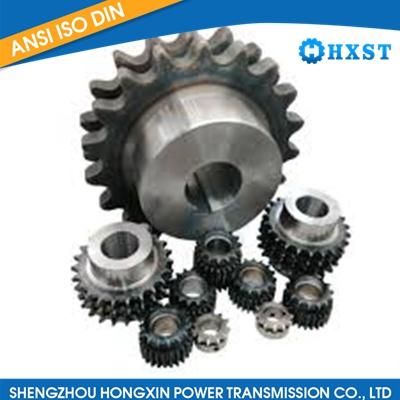

20B 1-2-3 Chain Sprocket

Product Item:HXST-015

20B Chain Sprocket

C45, stainless steel, etc.

Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Standard export case, individual package (neutral or colorbox) available.

20b 1-2-3 chain sprocket , 20b-2 chain , 20b-2 chain dimensions , 20b roller chain
Send InquiryLive chat

DescriptionQuick Answers

20B-1-2-3 Sprockets

20B single, double and triple sprockets are manufactured to ISO/R 606 and DIN 8187 standards and are suitable for 1 1/4" × 3/4" roller chains. These sprockets are widely used in heavy-duty power transmission equipment, providing stable transmission, high precision and full interchangeability.

Material: C45, Weld on hub

For quotations or further technical information, please contact us and we will be pleased to assist you.

Key Features

  • Single / double / triple stock bore sprocket
  • High-precision tooth profile
  • Interchangeable with standard brands
  • OEM service available

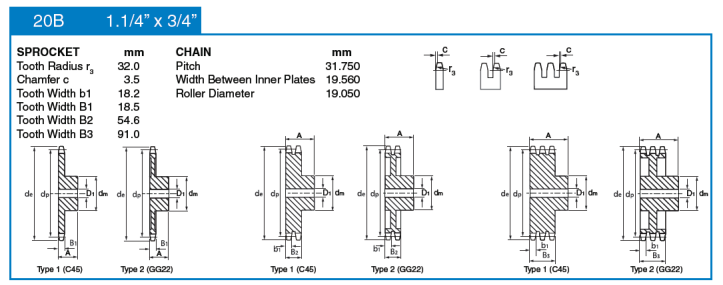

20B-1-2-3 Sprockets Dimensions

SPROCKETS 1 1/4" × 3/4" | For chain according to DIN 8187, ISO/R 606
Tooth radius r₃ 32 mm

Steel 20B 1-2-3 sprocket resting on a workshop surface with visible tooth profile


Chain Pitch: 31.75 mm
Internal width: 19.56 mm
Roller Φ: 19.05 mm
Radius width C 3.5 mm
Tooth width B₁ 18.5 mm
Tooth width b₁ 18.2 mm
Tooth width B₂ 54.6 mm
Tooth width B₃ 91 mm

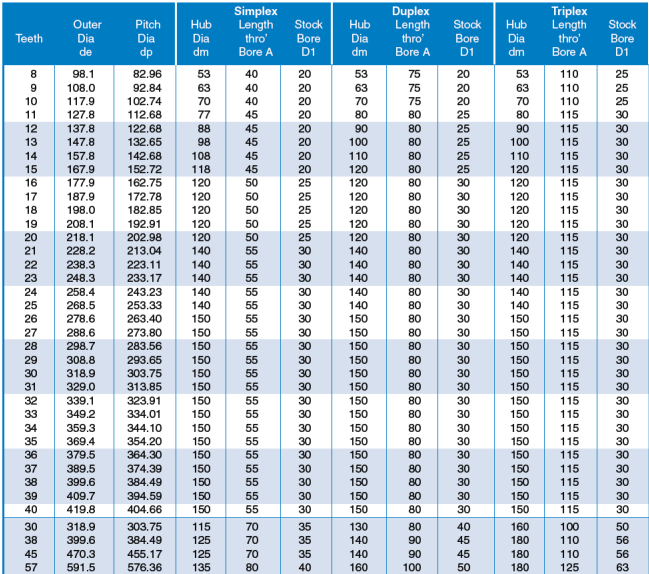

Dimension Table by Number of Teeth

Z dₐ dₚ SIMPLEX
dₘ / D₁ / A
DUPLEX
dₘ / D₂ / A
TRIPLEX
dₘ / D₃ / A
8 98.1 82.96 53 20 40 53 20 75 53 20 110
9 108.0 92.84 63 20 40 63 20 75 63 20 110
10 117.9 102.74 70 20 40 70 20 75 70 20 110
11 127.8 112.68 77 20 45 77 20 80 77 20 115
12 137.8 122.66 80 20 45 80 20 80 80 20 115
13 147.8 132.65 98 20 45 100 20 80 100 20 115
14 157.9 142.62 108 20 45 110 20 80 110 20 115
15 167.9 152.70 118 20 45 120 20 80 120 25 115
16 177.9 162.75 120 20 50 120 25 80 120 25 115
17 187.9 172.82 120 20 50 120 25 80 120 25 115
18 198.0 182.85 120 25 50 120 25 80 120 25 115
19 208.1 192.91 120 25 50 120 25 80 120 25 115
20 218.1 202.98 140 25 55 140 25 80 140 25 115
21 228.2 213.04 140 25 55 140 25 80 140 25 115
22 238.3 223.11 140 25 55 140 25 80 140 25 115
23 248.3 233.17 140 25 55 140 25 80 140 25 115
24 258.4 243.23 140 25 55 140 25 80 140 25 115
25 268.5 253.29 140 25 55 140 25 80 140 25 115
26 278.6 263.35 150 25 55 150 25 80 150 30 115
27 288.6 273.40 150 25 55 150 25 80 150 30 115
28 298.7 283.56 150 25 55 150 25 80 150 30 115
29 308.8 293.65 150 25 55 150 25 80 150 30 115
30 318.9 303.75 150 25 55 150 25 80 150 30 115
31 329.0 313.85 150 25 55 150 25 80 150 30 115
32 339.1 323.93 150 25 55 150 25 80 150 30 115
33 349.2 334.01 150 25 55 150 25 80 150 30 115
34 359.3 344.10 150 25 55 150 25 80 150 30 115
35 369.4 354.20 150 25 55 150 25 80 150 30 115
36 379.5 364.29 150 25 55 150 25 80 150 30 115
37 389.5 374.39 150 25 55 150 25 80 150 30 115
38 399.6 384.49 150 25 55 150 25 80 150 30 115
39 409.7 394.59 150 25 55 150 25 80 150 30 115
40 419.8 404.69 150 25 55 150 25 80 150 30 115
41 429.9 414.74 150 25 70 160 30 90 160 30 110
42 440.0 424.84 150 25 70 160 30 90 160 30 110
43 450.1 434.96 150 25 70 160 30 90 160 30 110
44 460.2 445.06 150 25 70 160 30 90 160 30 110
45 470.3 455.15 150 25 70 160 30 90 160 30 110
46 480.4 465.24 150 25 70 160 30 90 160 30 110
47 490.5 475.34 150 25 70 160 30 90 160 30 110
48 500.6 485.45 150 25 70 160 30 90 160 30 110
49 510.7 495.55 150 25 70 160 30 90 160 30 110
50 520.8 505.65 150 25 70 160 30 90 160 30 110
51 530.9 515.75 150 25 70 160 30 90 160 30 110
52 541.1 525.85 150 25 80 160 30 100 180 30 123
53 551.2 535.95 150 25 80 160 30 100 180 30 123
54 561.3 546.05 150 25 80 160 30 100 180 30 123
55 571.4 556.15 150 25 80 160 30 100 180 30 123
56 581.5 566.25 150 25 80 160 30 100 180 30 123
57 591.6 576.35 150 25 80 160 30 100 180 30 123
58 601.7 586.45 150 25 80 160 30 100 180 30 123
59 611.8 596.56 150 25 80 160 30 100 180 30 123
60 621.9 606.66 150 25 80 160 30 100 180 30 123
62 642.2 626.87 150 25 80 160 30 100 180 30 123
64 662.3 647.07 150 25 80 180 30 100 200 30 123
65 672.3 657.17 150 25 80 180 30 100 200 30 123
66 682.4 667.27 150 25 80 180 30 100 200 30 123
68 702.6 687.48 150 25 80 180 30 100 200 30 123
70 722.8 707.68 150 25 80 180 30 100 200 30 123
72 743.1 727.88 150 25 80 180 30 100 200 30 123
75 773.3 758.20 150 25 80 180 30 100 200 30 123
76 783.4 768.30 150 25 80 180 30 100 200 30 123
78 803.7 788.51 150 25 80 180 30 100 200 30 123
80 823.9 808.72 150 25 80 180 30 100 200 30 123
85 874.4 859.26 150 25 90 180 30 100 200 30 123
90 925.0 909.80 150 25 90 180 30 100 200 30 123
95 975.6 960.28 150 25 90 180 30 100 200 30 123
100 1026.2 1010.80 150 25 90 180 30 100 200 30 123
114 1167.4 1152.26 150 25 90 180 30 100 200 30 126

What is 20B 1-2-3 Chain Sprocket?

The 20B 1-2-3 Chain Sprocket (Item No. HXST-015) is a roller chain sprocket for 1 1/4" × 3/4" chains, available in single, double and triple strand configurations. It is manufactured to ISO/R 606 and DIN 8187 dimensions for interchangeability with standard brands. Common materials include C45 carbon steel and stainless steel, with optional teeth hardening and surface treatments such as black oxide, zinc plating and electrophoresis. It is supplied by Shengzhou Hongxin Transmission Co., Ltd with OEM service and export packaging options.

Applications

  • Heavy-duty power transmission equipment
  • Industrial roller chain drive systems
  • Conveyor and material handling machinery
  • Agricultural and general machinery drives
  • Equipment requiring single, double or triple strand chain drives

FAQ

What chain size does the 20B sprocket fit?

The 20B sprocket is designed for 1 1/4" × 3/4" roller chains and is manufactured to ISO/R 606 and DIN 8187 standards.

Is the 20B sprocket available in single, double and triple strand versions?

Yes. The 20B is offered as single (20B-1), double (20B-2) and triple (20B-3) strand sprockets.

What materials and surface treatments are available?

Standard material options include C45 carbon steel and stainless steel. Surface treatments include teeth hardening, black oxide, zinc plating and electrophoresis.

How is the 20B sprocket packaged for export?

Sprockets are packed in standard export cases, with individual packaging available in neutral or colorbox form.

Can the 20B sprocket be customized?

Yes, OEM service is available. Please contact the manufacturer with your drawing or specification requirements for further technical information.

Related Products

32B 1-2-3 Chain Sprocket

HXST-018
32B 1-2-3 Chain Sprocket

28B 1-2-3 Chain Sprocket

HXST-017
28B 1-2-3 Chain Sprocket

24B 1-2-3 Chain Sprocket

HXPT-016
24B 1-2-3 Chain Sprocket

16B 1-2-3 Chain Sprocket

HXST-014
16B 1-2-3 Chain Sprocket

Product Categories

  • ISO Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • ASA Sprocket
    • Taper lock Sprocket
    • Ball Bearing Idler Sprocket
    • 06B 08B 10B 12B 16B Stainless steel Sprocket
    • 06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain
    • Butterfly valve
  • ANSI Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • WELD-ON Sprocket
    • Taper lock Sprocket
    • Stainless Steel Sprocket
    • Ball Bearing Idler Sprocket
    • Double Platewheels For 2 Single Chain
    • Taper Lock Double platewheels for Two single chain
    • Double Pitch Sprocket
    • Sprocket With Split Taper Bushing
    • QD Bushing Sprocket
  • KANA Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • Double Sprocket
    • Single Double Sprocket
    • Stainless Steel Sprocket
    • Double Pitch Sprocket
  • Standard Pulley
    • Stock Standard Pulley
    • Taper Bore Pulley
    • Sheaves
  • Timing Pulley
    • H Timing Pulley
    • Timing Pulley XH
    • Timing Pulley MXL
    • Timing Pulley L
    • T Timing Pulley
    • Timing Pulley AT
    • Timing Pulley HTP
  • Roller Chain
    • Short Pitch Precision Roller Chain(A Series)
    • Short pitch precision roller chain(B series)
    • Double Pitch Roller Chain
    • Heavy Type Chain
    • Hollow Pin Chain
    • Straight Link Plate Chain
    • Cotter Type Chain
    • Nickel-Plated Chain
    • Zinc-Plated Chain
    • Coupling Roller Chain
    • Stainless Steel Roller Chain
  • Conveyor Chain
    • Lumber Conveyor Chain
    • M Series Conveyor Chain
    • MT Series Conveyor Chain
    • MC Series Conveyor Chain
    • FV Conveyor Chain
    • Double plus chain
    • Side Bow Chain
    • Sugar Chain
    • WDH Drag Chains
    • Rubber Gloves Machine Conveyor Chain
  • Attachment Roller Chain (Pre-Made)
    • A1 Attachment Roller Chain
    • K-1 Attachment Roller Chain
  • Transmission Chain
    • Motorcycle Chain
    • Silent Chain
    • Coupling Chain
  • Engineering Chain
    • Welded Steel Chain
    • Steel Pintle Chain
    • Double Flex Chain
  • Leaf Chain
    • AL Leaf Chain
    • BL Leaf Chain
    • EL Leaf Chain
  • Agricultural Chain
    • S Type Steel Agricultural Chain
    • CA Type Steel Agricultural Chain
    • A Type Steel Agricultural Chain
    • ZGS38 Combine Harvester Chain
    • Corn Harvester Chain
  • Gear and Rack
    • Gear
    • Gear Rack
  • Coupling
    • Gear Coupling with Nylon Outer Sleeve
    • L Jaw Type Coupling
    • KC Chain Coupling
  • QD Bushing / HUB
    • QD Bushing
    • WH WELD-ON HUB
    • Taper Bolt- ON HUB
    • Taper Bushing
    • Steel Hubs For Split Taper Bushing
    • XTB Bushing
  • Escalator Part
    • Escalator Sprocket
    • Escalator Chain
  • Non-standard custom sprocket
    • Agricultural Sprocket
    • Oil Field Sprocket
    • Conveyor Sprocket
    • Split Roller Chain Sprocket
    • Ready Sprockets
    • Car washing sprocket
    • Car Parking Sprocket
    • Conveyor packaging sprocket
    • Metallurgical sprocket
    • Timber processing chain conveyor sprocket
    • Lift Conveyoring Equipment Sprocket
    • Mining equipment sprocket
    • Textile machinery equipment sprocket
    • Recycling Mechanical Sprocket
    • Glass equipment chain conveyor sprocket
    • Sugar machine chain sprocket
    • Cotton picking machine sprocket
    • Fruit and vegetable cleaning machine sprocket
    • Baler equipment sprocket
    • Blueberry harvester equipment sprocket
    • Walnut harvester system equipment sprocket
    • Nitrile/Rubber Glove Production Line Sprocket
  • Bearing
    • Deep groove ball bearing
    • Angular contact ball bearings
    • Thrust ball bearing
    • Pillow Block Bearing
    • Car Wheel Hub Beaing
    • Single Row Ball Slewing Bearing (Series 01)
    • Single row four point contact ball slewing bearing (Q series)
    • Single Row Ball Slewing Bearing Non Gear (HS series)
    • Single row cross roller slewing bearing (11 series)
    • Single row cross roller slewing bearing (HJ series)
    • Double volleyball slewing bearing (02 series)
    • Three-row roller slewing bearing (13 series)
  • Motor
  • Idlers
  • Spring
    • Compressed spring
    • Stretch spring
    • Twist spring
    • Alien spring
    • Touch spring
  • Valve
    • Gallery valve
    • Cut -off valve
    • Special valve of melamine
    • Wear -resistant valve series
  • Industrial fan
    • Hybrid fan series
    • Roof fan series
    • Fire fire exhaust fan series
    • Low noise shaft circulation fan series
  • Locking Ring
  • Punching Machine
    • Closed Double Point Press
    • High Precision Compact Power Press
    • High Speed Precision Punch
    • Straight Side Double Crank Servo Press
    • Closed Type High Precision Press
  • Universal Joint
  • CNC Machine Processing
    • Aluminum Parts
    • Mechanical Parts
    • Milling Parts
    • Die Casting Parts
    • Forging Parts
    • Stainless steel precision parts
    • Traditional car accessories
  • Industrial ceiling electric fan

Links

Paint Brush Manufacturer Sheet Metal Fabrication  Bearing Beer Equipment Manufacturer Black epoxy adhesive Advertising Products

LatestPost

  • Synchronous pulley design steps and how to choose the right motor?
    Synchronous pulley design steps and how
    2019-10-12
  • Chain Maintenance Method and Steps
    Chain Maintenance Method and Steps
    2019-09-29
  • Advantages of synchronous pulley
    Advantages of synchronous pulley
    2019-09-29

Get a Quote

Contact Us

008615336786278

008615336786278

sales@hxsprocket.com

NO.2 Youth Road Sanjie Town Shengzhou City,Zhejiang Province, China

WeChat

Scan the QR code to add us on WeChat.

WeChat QR Code

Copyright © 2008-{year} Shengzhou Hongxin Transmission Co., Ltd. All rights reserved.

Links: Paint Brush Manufacturer Sheet Metal Fabrication  Bearing Beer Equipment Manufacturer Black epoxy adhesive Advertising Products

WhatsApp
Phone
E-mail
Inquiry

  • sales@hxsprocket.com
  • 15336786278Scan to chat on WhatsApp
  • WeChat QR CodeScan to chat on WeChat
  • Inquiry
  • Back to Top

Online Inquiry

Get a quote within 12 hours

Tell us what you need — we'll reply as soon as possible.
