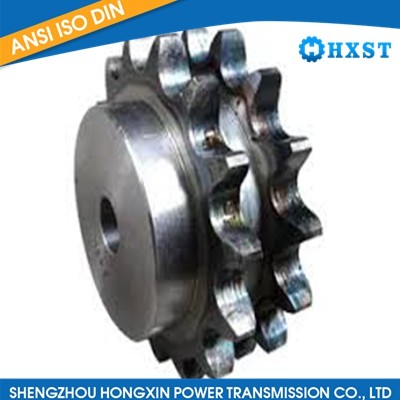

16B 1-2-3 Chain Sprocket - Image 1

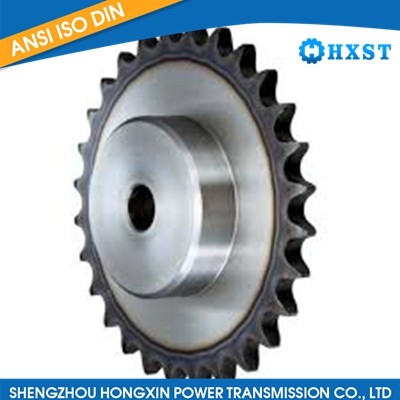

  1. 16B 1-2-3 Chain Sprocket - Image 1

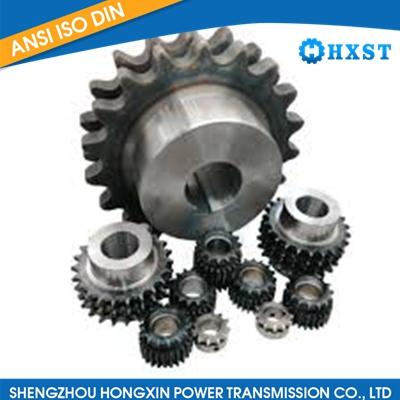

  2. 16B 1-2-3 Chain Sprocket - Image 2

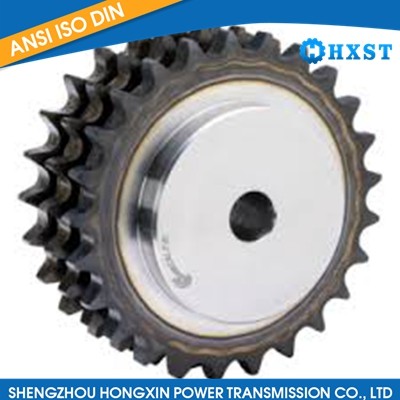

  3. 16B 1-2-3 Chain Sprocket - Image 3

16B 1-2-3 Chain Sprocket

Product Item:HXST-014

16B Chain Sprocket

C45, stainless steel, etc.

Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Standard export case, individual package (neutral or colorbox) available.

16b 1-2-3 chain sprocket , 16b-2 sprocket , 16b-1 chain dimensions , 16b-3 chain , 16b-1 hollow pin chain
Send InquiryLive chat

DescriptionQuick Answers

16B-1-2-3 Sprockets

16B single, double and triple sprockets are manufactured to ISO/R 606 and DIN 8187 standards and are suitable for 1" × 17.02mm roller chains. These sprockets are widely used in power transmission equipment, providing stable transmission, high precision and full interchangeability.

Material: C45, Weld on hub

For quotations or further technical information, please contact us and we will be pleased to assist you.

Key Features

  • Single / double / triple stock bore sprocket
  • High-precision tooth profile
  • Interchangeable with standard brands
  • OEM service available

16B-1-2-3 Sprockets Dimensions

SPROCKETS 1" × 17.02mm | For chain according to DIN 8187, ISO/R 606
Tooth radius r₃ 26 mm

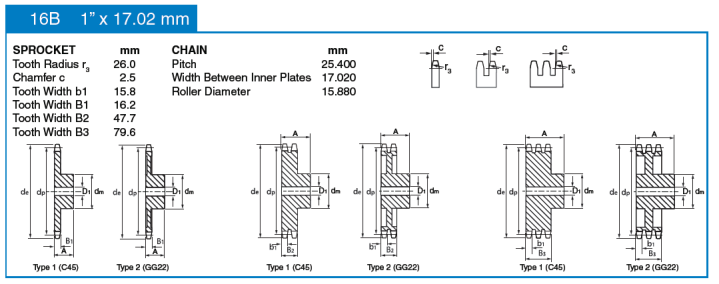

Side view of a 16B 1-2-3 chain sprocket highlighting hub and tooth profile


Chain Pitch: 25.4 mm
Internal width: 17.02 mm
Roller Φ: 15.88 mm
Radius width C 2.5 mm
Tooth width B₁ 16.2 mm
Tooth width b₁ 15.8 mm
Tooth width B₂ 47.7 mm
Tooth width B₃ 79.6 mm

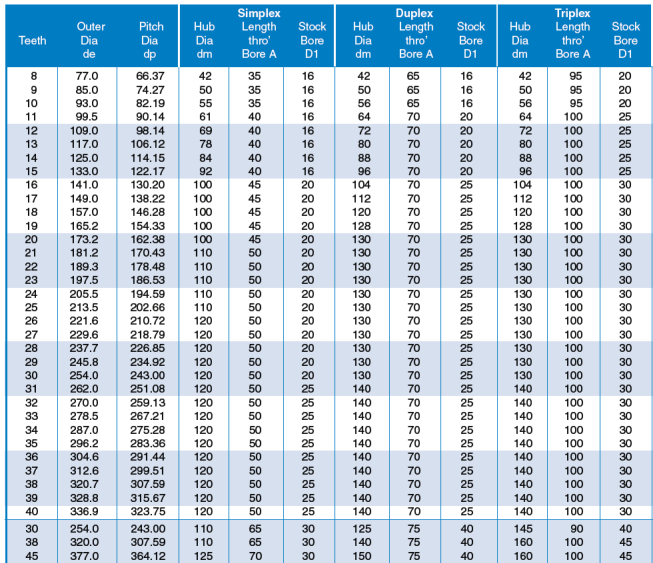

Dimension Table by Number of Teeth

Z dₐ dₚ SIMPLEX
dₘ / D₁ / A
DUPLEX
dₘ / D₂ / A
TRIPLEX
dₘ / D₃ / A
8 77.0 66.37 42 16 35 42 16 65 42 20 95
9 85.0 74.27 50 16 35 50 16 65 50 20 95
10 93.0 82.14 56 16 35 56 16 65 56 20 95
11 101.5 90.19 65 16 40 65 20 70 65 25 100
12 110.0 98.12 72 16 40 72 20 70 72 25 100
13 117.0 106.14 78 16 40 80 20 70 80 25 100
14 125.0 114.15 84 16 40 88 20 70 88 25 100
15 133.0 122.17 92 20 45 96 20 70 96 25 100
16 141.0 130.20 100 20 45 104 20 70 104 25 100
17 149.0 138.22 100 20 45 112 20 70 112 25 100
18 157.0 146.28 100 20 45 120 20 70 120 25 100
19 165.2 154.33 100 20 45 120 20 70 120 25 100
20 173.0 162.38 110 20 50 130 20 70 130 25 100
21 181.2 170.48 110 20 50 130 20 70 130 25 100
22 189.3 178.48 110 20 50 130 20 70 130 25 100
23 197.5 186.53 110 20 50 130 25 70 130 30 100
24 205.5 194.59 110 20 50 130 25 70 130 30 100
25 213.5 202.65 120 20 50 130 25 70 130 30 100
26 221.6 210.71 120 20 50 130 25 70 130 30 100
27 229.6 218.75 120 20 50 130 25 70 130 30 100
28 237.7 226.85 120 20 50 130 25 70 130 30 100
29 245.8 234.91 120 20 50 130 25 70 130 30 100
30 254.0 242.98 120 20 50 130 25 70 130 30 100
31 262.0 251.00 120 20 50 130 25 70 130 30 100
32 270.0 259.13 120 25 50 140 25 70 140 30 100
33 278.5 267.21 120 25 50 140 25 70 140 30 100
34 286.6 275.28 120 25 50 140 25 70 140 30 100
35 294.7 283.34 120 25 50 140 25 70 140 30 100
36 302.8 291.44 120 25 50 140 25 70 140 30 100
37 312.6 299.51 120 25 50 140 25 70 140 30 100
38 320.7 307.59 120 25 50 140 25 70 140 30 100
39 328.7 315.67 120 25 50 140 25 70 140 30 100
40 336.8 323.75 120 25 50 140 25 70 140 30 100
41 345.3 331.81 125 25 68 160 30 85 160 30 110
42 353.0 339.89 125 25 68 160 30 85 160 30 110
43 361.1 347.97 125 25 68 160 30 85 160 30 110
44 369.1 356.05 125 25 68 160 30 85 160 30 110
45 377.2 364.12 125 25 68 160 30 85 160 30 110
46 385.3 372.20 125 25 68 160 30 85 160 30 110
47 393.2 380.27 125 25 68 160 30 85 160 30 110
48 401.3 388.36 125 25 68 160 30 85 160 30 110
49 409.3 396.44 125 25 68 160 30 85 160 30 110
50 417.4 404.52 125 25 68 160 30 85 160 30 110
51 425.5 412.60 125 25 68 160 30 85 160 30 110
52 433.5 420.68 125 25 68 160 30 85 160 30 110
53 441.6 428.76 125 25 68 160 30 85 180 30 110
54 449.6 436.84 125 25 68 160 30 85 180 30 110
55 457.7 444.91 125 25 68 160 30 85 180 30 110
56 466.0 453.00 125 25 68 160 30 85 180 30 110
57 474.1 461.08 133 25 68 150 25 85 180 30 110
58 482.1 469.16 133 25 68 150 25 85 180 30 110
59 490.2 477.24 133 25 68 150 25 85 180 30 110
60 498.2 485.32 133 25 68 150 25 85 180 30 110
62 514.3 501.47 133 25 68 150 25 85 180 30 110
64 530.4 517.63 133 25 68 150 25 85 180 30 110
65 538.8 525.73 140 25 68 160 25 90 180 30 110
66 546.8 533.81 140 25 68 160 25 90 180 30 110
68 562.9 549.98 140 25 68 160 25 90 180 30 110
70 579.2 566.15 140 25 68 160 25 90 180 30 110
72 595.4 582.31 140 25 68 160 25 90 180 30 110
75 619.7 606.56 140 25 68 160 25 90 180 30 110
76 627.9 614.64 140 25 68 160 25 90 180 30 110
78 644.0 630.81 140 25 68 160 25 90 180 30 110
80 660.2 646.97 140 25 68 160 25 90 180 30 110
85 699.0 687.39 140 25 78 160 25 90 180 30 110
90 740.3 727.80 140 25 78 160 25 90 180 30 110
95 781.1 768.24 140 25 78 160 25 90 180 30 110
100 821.8 808.68 140 25 78 160 25 90 180 30 110
110 903.4 889.51 140 25 78 160 25 90 180 30 110
114 936.2 921.32 140 25 78 160 25 90 180 30 110
120 988.2 970.73 140 25 78 160 25 90 180 30 110
125 1023.3 1010.73 140 25 78 160 25 90 180 30 110

What is 16B 1-2-3 Chain Sprocket?

The 16B 1-2-3 Chain Sprocket is a roller chain sprocket designed for 1-inch pitch (25.4 mm) chains according to ISO/R 606 and DIN 8187 standards. It is available in single, double, and triple strand configurations to suit different power transmission requirements. Manufactured from materials such as C45 carbon steel or stainless steel, it offers options for teeth hardening and surface treatments including black oxide, zinc plating, and electrophoresis. The sprocket provides stable transmission, high precision, and full interchangeability with standard brands.

Applications

  • Power transmission equipment
  • Industrial machinery drives
  • Conveyor systems
  • Agricultural machinery
  • Material handling equipment
  • OEM mechanical assemblies

FAQ

What chain size does the 16B sprocket fit?

The 16B sprocket is designed for 1-inch pitch (25.4 mm) roller chains according to ISO/R 606 and DIN 8187 standards.

What materials are available for the 16B sprocket?

Standard materials include C45 carbon steel and stainless steel, with options for teeth hardening and surface treatments such as black oxide, zinc plating, or electrophoresis.

What is the difference between 16B-1, 16B-2, and 16B-3 sprockets?

The suffix indicates the number of strands: 16B-1 is for single-strand chain, 16B-2 for double-strand, and 16B-3 for triple-strand chain.

Are these sprockets interchangeable with other brands?

Yes, the 16B sprockets are manufactured to standard dimensions and are fully interchangeable with standard brands.

What packaging options are available?

Sprockets are supplied in standard export cases, with individual packaging available in neutral or color box options.

Related Products

32B 1-2-3 Chain Sprocket

HXST-018
32B 1-2-3 Chain Sprocket

28B 1-2-3 Chain Sprocket

HXST-017
28B 1-2-3 Chain Sprocket

24B 1-2-3 Chain Sprocket

HXPT-016
24B 1-2-3 Chain Sprocket

20B 1-2-3 Chain Sprocket

HXST-015
20B 1-2-3 Chain Sprocket

Product Categories

  • ISO Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • ASA Sprocket
    • Taper lock Sprocket
    • Ball Bearing Idler Sprocket
    • 06B 08B 10B 12B 16B Stainless steel Sprocket
    • 06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain
    • Butterfly valve
  • ANSI Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • WELD-ON Sprocket
    • Taper lock Sprocket
    • Stainless Steel Sprocket
    • Ball Bearing Idler Sprocket
    • Double Platewheels For 2 Single Chain
    • Taper Lock Double platewheels for Two single chain
    • Double Pitch Sprocket
    • Sprocket With Split Taper Bushing
    • QD Bushing Sprocket
  • KANA Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • Double Sprocket
    • Single Double Sprocket
    • Stainless Steel Sprocket
    • Double Pitch Sprocket
  • Standard Pulley
    • Stock Standard Pulley
    • Taper Bore Pulley
    • Sheaves
  • Timing Pulley
    • H Timing Pulley
    • Timing Pulley XH
    • Timing Pulley MXL
    • Timing Pulley L
    • T Timing Pulley
    • Timing Pulley AT
    • Timing Pulley HTP
  • Roller Chain
    • Short Pitch Precision Roller Chain(A Series)
    • Short pitch precision roller chain(B series)
    • Double Pitch Roller Chain
    • Heavy Type Chain
    • Hollow Pin Chain
    • Straight Link Plate Chain
    • Cotter Type Chain
    • Nickel-Plated Chain
    • Zinc-Plated Chain
    • Coupling Roller Chain
    • Stainless Steel Roller Chain
  • Conveyor Chain
    • Lumber Conveyor Chain
    • M Series Conveyor Chain
    • MT Series Conveyor Chain
    • MC Series Conveyor Chain
    • FV Conveyor Chain
    • Double plus chain
    • Side Bow Chain
    • Sugar Chain
    • WDH Drag Chains
    • Rubber Gloves Machine Conveyor Chain
  • Attachment Roller Chain (Pre-Made)
    • A1 Attachment Roller Chain
    • K-1 Attachment Roller Chain
  • Transmission Chain
    • Motorcycle Chain
    • Silent Chain
    • Coupling Chain
  • Engineering Chain
    • Welded Steel Chain
    • Steel Pintle Chain
    • Double Flex Chain
  • Leaf Chain
    • AL Leaf Chain
    • BL Leaf Chain
    • EL Leaf Chain
  • Agricultural Chain
    • S Type Steel Agricultural Chain
    • CA Type Steel Agricultural Chain
    • A Type Steel Agricultural Chain
    • ZGS38 Combine Harvester Chain
    • Corn Harvester Chain
  • Gear and Rack
    • Gear
    • Gear Rack
  • Coupling
    • Gear Coupling with Nylon Outer Sleeve
    • L Jaw Type Coupling
    • KC Chain Coupling
  • QD Bushing / HUB
    • QD Bushing
    • WH WELD-ON HUB
    • Taper Bolt- ON HUB
    • Taper Bushing
    • Steel Hubs For Split Taper Bushing
    • XTB Bushing
  • Escalator Part
    • Escalator Sprocket
    • Escalator Chain
  • Non-standard custom sprocket
    • Agricultural Sprocket
    • Oil Field Sprocket
    • Conveyor Sprocket
    • Split Roller Chain Sprocket
    • Ready Sprockets
    • Car washing sprocket
    • Car Parking Sprocket
    • Conveyor packaging sprocket
    • Metallurgical sprocket
    • Timber processing chain conveyor sprocket
    • Lift Conveyoring Equipment Sprocket
    • Mining equipment sprocket
    • Textile machinery equipment sprocket
    • Recycling Mechanical Sprocket
    • Glass equipment chain conveyor sprocket
    • Sugar machine chain sprocket
    • Cotton picking machine sprocket
    • Fruit and vegetable cleaning machine sprocket
    • Baler equipment sprocket
    • Blueberry harvester equipment sprocket
    • Walnut harvester system equipment sprocket
    • Nitrile/Rubber Glove Production Line Sprocket
  • Bearing
    • Deep groove ball bearing
    • Angular contact ball bearings
    • Thrust ball bearing
    • Pillow Block Bearing
    • Car Wheel Hub Beaing
    • Single Row Ball Slewing Bearing (Series 01)
    • Single row four point contact ball slewing bearing (Q series)
    • Single Row Ball Slewing Bearing Non Gear (HS series)
    • Single row cross roller slewing bearing (11 series)
    • Single row cross roller slewing bearing (HJ series)
    • Double volleyball slewing bearing (02 series)
    • Three-row roller slewing bearing (13 series)
  • Motor
  • Idlers
  • Spring
    • Compressed spring
    • Stretch spring
    • Twist spring
    • Alien spring
    • Touch spring
  • Valve
    • Gallery valve
    • Cut -off valve
    • Special valve of melamine
    • Wear -resistant valve series
  • Industrial fan
    • Hybrid fan series
    • Roof fan series
    • Fire fire exhaust fan series
    • Low noise shaft circulation fan series
  • Locking Ring
  • Punching Machine
    • Closed Double Point Press
    • High Precision Compact Power Press
    • High Speed Precision Punch
    • Straight Side Double Crank Servo Press
    • Closed Type High Precision Press
  • Universal Joint
  • CNC Machine Processing
    • Aluminum Parts
    • Mechanical Parts
    • Milling Parts
    • Die Casting Parts
    • Forging Parts
    • Stainless steel precision parts
    • Traditional car accessories
  • Industrial ceiling electric fan

Links

Paint Brush Manufacturer Sheet Metal Fabrication  Bearing Beer Equipment Manufacturer Black epoxy adhesive Advertising Products

LatestPost

  • Synchronous pulley design steps and how to choose the right motor?
    Synchronous pulley design steps and how
    2019-10-12
  • Chain Maintenance Method and Steps
    Chain Maintenance Method and Steps
    2019-09-29
  • Advantages of synchronous pulley
    Advantages of synchronous pulley
    2019-09-29

Get a Quote

Contact Us

008615336786278

008615336786278

sales@hxsprocket.com

NO.2 Youth Road Sanjie Town Shengzhou City,Zhejiang Province, China

WeChat

Scan the QR code to add us on WeChat.

WeChat QR Code

Copyright © 2008-{year} Shengzhou Hongxin Transmission Co., Ltd. All rights reserved.

Links: Paint Brush Manufacturer Sheet Metal Fabrication  Bearing Beer Equipment Manufacturer Black epoxy adhesive Advertising Products

WhatsApp
Phone
E-mail
Inquiry

  • sales@hxsprocket.com
  • 15336786278Scan to chat on WhatsApp
  • WeChat QR CodeScan to chat on WeChat
  • Inquiry
  • Back to Top

Online Inquiry

Get a quote within 12 hours

Tell us what you need — we'll reply as soon as possible.
