25B-1 ASA Sprocket
  1. 25B-1 ASA Sprocket

25B-1 ASA Sprocket

Product Item:HXST-025

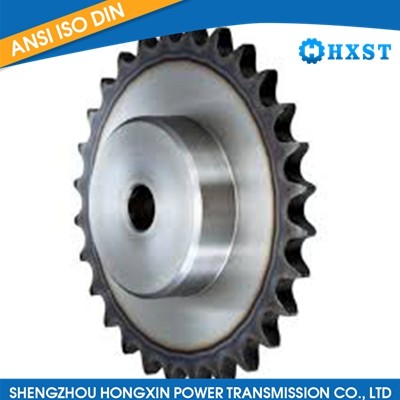

Model: 25B-1 ASA Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

25B-1 ASA Sprocket , 25b20 sprocket
Send InquiryLive chat

Description

ASA-simplex sprockets ASA25-1

Kettenräder 04-1
  • ISO-no.: sprockets ASA25-1 (6,35 x 3,18mm)
  • pitch: 6,35 mm
  • inner width: 3,18 mm
  • Roller-dia.: 3,3 mm
  • tooth width bf1 2,9 mm
  • ba 0,6 mm (radius width)
  • rx 6 mm (min. tooth radius)

No. of teeth

pitch circle

tip circle

hub pilot bore

bore

total weight

Ø

Ø

Ø

Ø

max.

length

approx

z

d0

dk

dn

d1

d2

L

kg

10 20,55 22,30 12 6 7 15 0,02
11 22,54 24,30 14 6 9 15 0,02
12 24,53 26,40 16 6 10 15 0,03
13 26,53 28,50 18 6 11 15 0,03
14 28,53 30,50 20 6 12 15 0,04
15 30,55 32,50 22 6 13 15 0,05
16 32,55 34,50 24 8 14 15 0,06
17 34,55 36,50 26 8 16 15 0,07
18 36,56 38,50 28 8 17 15 0,08
19 38,58 40,50 30 8 18 15 0,09
20 40,58 42,50 32 8 20 15 0,10
21 42,60 44,60 34 8 21 15 0,11
22 44,62 46,60 36 8 23 15 0,12
23 46,63 48,60 38 8 24 15 0,14
24 48,64 50,60 40 8 25 18 0,18
25 50,66 52,60 42 8 26 18 0,20
27 54,69 56,60 46 10 28 18 0,22
28 56,71 58,70 48 10 28 18 0,25
30 60,75 62,70 48 10 28 18 0,27
32 64,78 66,70 50 12 31 18 0,28
34 68,82 70,80 50 12 31 18 0,29
35 70,84 72,80 50 12 31 18 0,30
36 72,85 74,80 50 12 31 18 0,31
