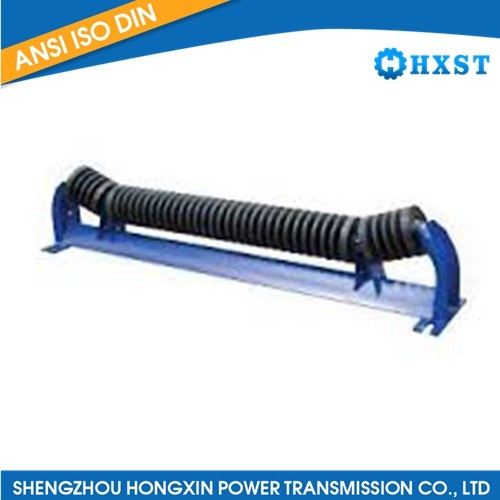

20UI Unequal Impact Idlers
  1. 20UI Unequal Impact Idlers

20UI Unequal Impact Idlers

Product Item:HXST-1608

Model: 20UI Unequal Impact Idlers

Material: These idlers are typically made from high-quality steel or durable synthetic materials such as rubber or polyurethane. The choice of material depends on the specific application requirements

Load Capacity: These idlers are designed to handle heavy loads and impact forces. The load capacity will depend on the size, material, and construction of the idlers. It's important to select the appr

Maintenance: Regular inspection and maintenance of the 20UI Unequal Impact Idlers are necessary to ensure optimal performance. This may include cleaning, lubrication, and replacement of worn or damage

20UI Unequal Impact Idlers
Send InquiryLive chat

Description

20UI Unequal Impact Idlers

The 20UI Unequal Impact Idlers are a type of idler roller commonly used in conveyor systems. These idlers are specifically designed to handle uneven loads and reduce the impact on the conveyor belt.

Here are some key features and characteristics of the 20UI Unequal Impact Idlers:

Unequal Roll Diameter: The 20UI idlers have an unequal roll diameter, with one end being larger than the other. This design helps to distribute the load more evenly across the idler and minimize the impact force on the belt when it encounters unevenly distributed or heavy loads.

High-Quality Construction: These idlers are constructed using high-quality materials, such as steel, to ensure durability and longevity. The robust construction enables them to withstand the rigors of heavy-duty applications and harsh environments.

Impact Beds: The 20UI idlers often work in conjunction with impact beds, which are support structures located beneath the idlers. Impact beds absorb the impact forces generated by heavy or irregularly shaped materials, further reducing stress on the idlers and the conveyor belt.

Sealed Bearings: To enhance reliability and reduce maintenance needs, the 20UI idlers are equipped with sealed bearings. Sealed bearings protect against contaminants, such as dust and moisture, ensuring smooth operation and extending the lifespan of the idlers.

Customizable Options: The 20UI Unequal Impact Idlers can be customized to fit specific conveyor system requirements. They are available in various roll diameters, widths, and trough angles to accommodate different load capacities and belt widths.

These idlers play a crucial role in minimizing the impact of uneven loads on conveyor belts, thereby improving overall system performance and prolonging the life of the conveyor system
