  1. Home
  2. Products
  3. ISO Sprocket
  4. Stock Sprocket
  5. 20A 1-2-3 Plate wheel Sprocket...

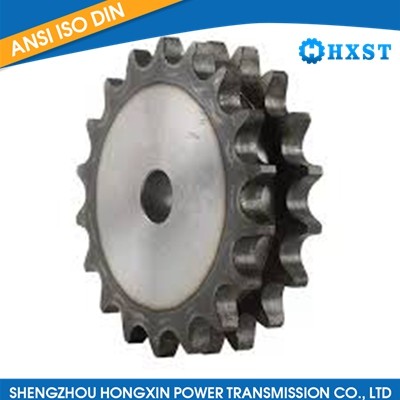

20A 1-2-3 Plate wheel Sprocket - Image 1
  1. 20A 1-2-3 Plate wheel Sprocket - Image 1

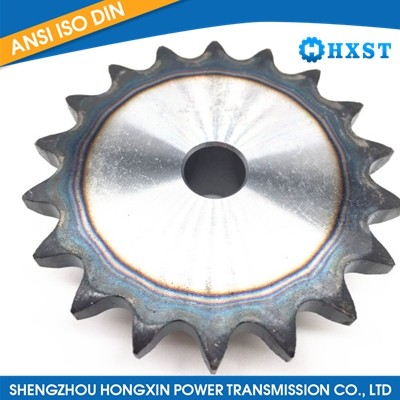

  2. 20A 1-2-3 Plate wheel Sprocket - Image 2

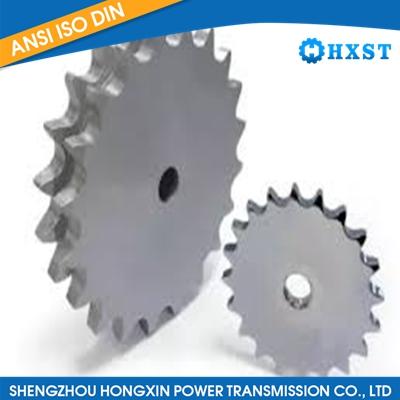

20A 1-2-3 Plate wheel Sprocket

Product Item:HXST-006

20A 1-2-3 Plate wheel Sprocket

C45, stainless steel, etc.

Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Standard export case, individual package (neutral or colorbox) available.

20a 1-2-3 plate wheel sprocket , plate sprockets , a plate sprocket , 20mm sprocket
Send InquiryLive chat

DescriptionQuick Answers

20A-1-2-3 Platewheels Sprocket

20A single, double and triple plate wheel sprockets are manufactured to ISO/R 606 and DIN 8187 standards and are suitable for 1 1/4" × 3/4" roller chains. These sprockets are widely used in power transmission equipment, providing stable transmission, high precision and full interchangeability.

For quotations or further technical information, please contact us and we will be pleased to assist you.

Key Features

  • Single / double / triple stock bore plate sprocket
  • High-precision tooth profile
  • Interchangeable with standard brands
  • OEM service available

20A-1-2-3 Platewheels Dimensions

PLATEWHEELS 1 1/4" × 3/4" | For chain according to DIN 8187, ISO/R 606
Tooth radius r₃ 32 mm

20A 1-2-3 Plate wheel Sprocket


Chain Pitch: 31.75 mm
Internal width: 19.56 mm
Roller Φ: 19.05 mm
Radius width C 3.5 mm
Tooth width B₁ 18.5 mm
Tooth width b₁ 18.2 mm
Tooth width B₂ 54.6 mm
Tooth width B₃ 54.6 mm

Dimension Table by Number of Teeth

Z dₐ dₚ S (D₁) D (D₂) T (D₃)
8 98.1 82.96 16 20 20
9 108.0 92.84 16 20 20
10 117.9 102.74 16 20 20
11 127.7 112.68 16 20 20
12 137.8 122.68 16 20 20
13 147.8 132.65 20 20 20
14 157.8 142.68 20 20 20
15 167.9 152.72 20 20 20
16 177.9 162.75 20 25 25
17 187.9 172.78 20 25 25
18 198.0 182.85 20 25 25
19 208.1 192.91 20 25 25
20 218.1 202.98 20 25 25
21 228.2 213.04 25 25 25
22 238.3 223.11 25 25 25
23 248.3 233.17 25 25 25
24 258.4 243.23 25 25 25
25 268.5 253.29 25 25 25
26 278.6 263.40 25 25 25
27 288.6 273.49 25 25 25
28 298.7 283.56 25 25 25
29 308.8 293.65 25 25 25
30 318.9 303.73 25 25 25
31 328.9 313.85 25 25 30
32 339.1 323.91 25 25 30
33 349.2 334.01 25 25 30
34 359.3 344.10 25 25 30
35 369.4 354.20 25 25 30
36 379.5 364.30 25 30 30
37 389.5 374.39 25 30 30
38 399.6 384.49 25 30 30
39 409.7 394.59 25 30 30
40 419.8 404.69 25 30 30
41 429.9 414.79 30 30 30
42 440.0 424.90 30 30 40
43 450.1 434.96 30 30 40
44 460.2 445.06 30 30 40
45 470.3 455.17 30 30 40
46 480.4 465.27 30 30 40
47 490.5 475.35 30 30 40
48 500.6 485.45 30 30 40
49 510.7 495.55 30 30 40
50 520.8 505.65 30 30 40
51 530.9 515.75 30 30 40
52 541.0 525.85 30 30 40
54 561.1 535.95 30 30 40
55 561.2 546.05 30 30 40
56 571.3 556.15 30 30 40
57 581.4 566.25 30 30 40
58 591.5 576.35 30 30 40
59 601.6 586.45 30 30 40
60 611.7 596.56 30 30 40
62 621.8 606.66 30 30 40
64 642.0 626.87 30 30 40
65 662.2 647.07 30 30 40
66 672.3 657.17 30 30 40
68 682.4 667.27 30 30 40
70 702.6 687.48 30 30 40
72 722.8 707.68 30 30 40
75 743.1 727.87 30 30 40
76 773.3 758.20 30 30 40
78 783.4 768.32 30 30 40
80 823.9 808.71 30 30 40
85 874.4 859.23 30 30 40
90 924.9 909.76 30 30 40
95 975.2 960.28 30 30 40
100 1026.0 1010.80 30 30 40
114 1167.4 1152.26 30 40 40

What is 20A 1-2-3 Plate wheel Sprocket?

The 20A 1-2-3 Plate wheel Sprocket is a roller chain sprocket designed for 1 1/4" × 3/4" (31.75 mm pitch) chains, available in single, double, and triple strand configurations. It is manufactured to ISO/R 606 and DIN 8187 standards and is commonly made from C45 carbon steel or stainless steel, with optional teeth hardening and surface treatments such as black oxide, zinc plating, or electrophoresis. These plate wheel sprockets are used in power transmission systems where stable operation, high precision, and interchangeability with standard brands are required.

Applications

  • Power transmission equipment requiring 1 1/4" × 3/4" roller chains
  • Industrial machinery drive systems
  • Conveyor systems
  • Agricultural equipment
  • Material handling equipment

FAQ

What chain size does the 20A 1-2-3 Plate wheel Sprocket use?

It is suitable for 1 1/4" × 3/4" roller chains, with a chain pitch of 31.75 mm and internal width of 19.56 mm.

What materials are available for this sprocket?

Standard material options include C45 carbon steel and stainless steel, depending on application requirements.

What surface treatments can be provided?

Available surface treatments include teeth hardening, black oxide, zinc plating, and electrophoresis.

Is the sprocket interchangeable with other brands?

Yes, it is designed for full interchangeability with standard brands and manufactured to ISO/R 606 and DIN 8187 standards.

What packaging options are offered?

Standard export cases and individual packages (neutral or colorbox) are available.
