160A-1 Plate Wheel Sprocket
  1. 160A-1 Plate Wheel Sprocket

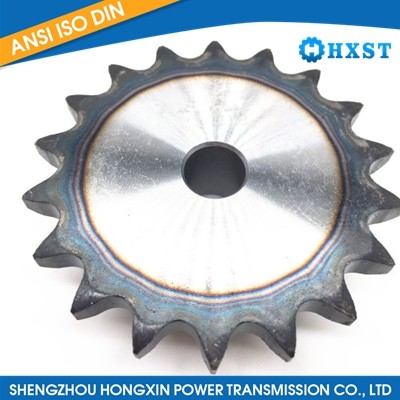

160A-1 Plate Wheel Sprocket

Product Item:HXST-135

Model:160A-1 Plate Wheel Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

160A-1 Plate Wheel Sprocket , 160 chain sprocket , 160 chain pitch , plate sprockets
Send InquiryLive chat

Description

160A-1 plate wheel sprocket is a specific type of sprocket that features a plate wheel design. Here are some key features of the 160A-1 plate wheel sprocket:

Plate Wheel Design: The "plate wheel" designation indicates that the sprocket has a design where the teeth are formed directly on a flat plate. This design allows for easy attachment to various equipment or machinery.

160A-1 Designation: The "160A-1" designation specifies the specific model or part number for the plate wheel sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 160A-1 plate wheel sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Plate wheel sprockets like the 160A-1 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Plate wheel sprockets are commonly used in power transmission systems where precise positioning or easy mounting is required. The 160A-1 plate wheel sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.


Product details

Chain Pitch (P) 50.80 mm (2 inch)
Inner Width (W) 31.55 mm
Bush Dia. (Dr) 28.58 mm
Tooth Width (T) 29.4 mm
(Dimension : mm)
Sprocket No. Outside Dia.
Do 		Pitch Dia.
Dp 		Bore Dia. d Weight
(kg) 		Material Teeth
Type Teeth Stock bore Min.
K160A 10 186 164.39 26 28 4.85 Mild Steel 10
11 204 180.31 26 28 5.85 11
12 220 196.28 26 28 6.90 12
13 237 212.27 26 28 8.10 13
14 253 228.30 26 28 9.40 14
15 269 244.33 26 28 10.80 15
16 286 260.39 26 28 12.25 16
17 302 276.46 26 28 13.80 17
18 319 292.55 26 28 15.50 18
19 335 308.64 26 28 17.20 19
20 351 324.74 26 28 19.00 20
21 368 340.84 26 28 21.00 21
22 384 356.96 26 28 23.00 22
23 400 373.07 26 28 25.10 23
24 416 389.19 26 28 27.40 24
25 433 405.32 26 28 29.70 25
26 449 421.45 26 28 32.10 26
28 481 453.72 26 28 37.20 28
30 514 485.99 26 28 42.70 30
32 546 518.28 26 28 48.70 32
35 595 566.71 26 28 58.10 35
38 644 615.17 26 28 68.50 38
40 676 647.47 26 28 75.10 40
42 708 679.78 26 28 83.60 42
45 757 728.25 26 28 96.00 45
48 806 776.72 26 28 109.00 48
50 838 809.04 26 28 118.50 50
54 903 873.68 26 28 138.20 54
60 1000 970.65 26 28 170.00 60
