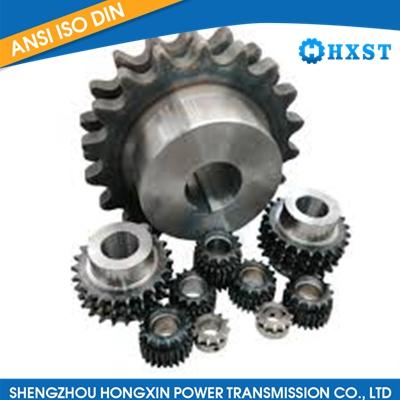

12B 1-2-3 Chain Sprocket

Product Item:HXST-013

12B Chain Sprocket

C45, stainless steel, etc.

Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Standard export case, individual package (neutral or colorbox) available.

12b 1-2-3 chain sprocket , 12b-2 sprocket , 12b-3 chain , 12b-1 sprocket dimensions , 12b-1 roller chain , 12b chain link
Send InquiryLive chat

DescriptionQuick Answers

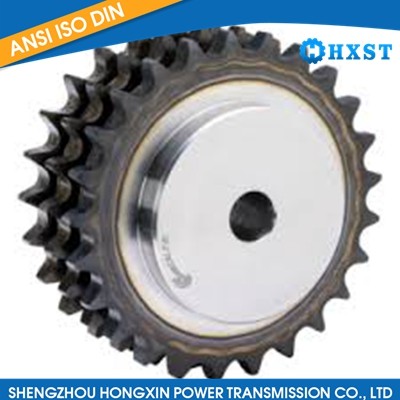

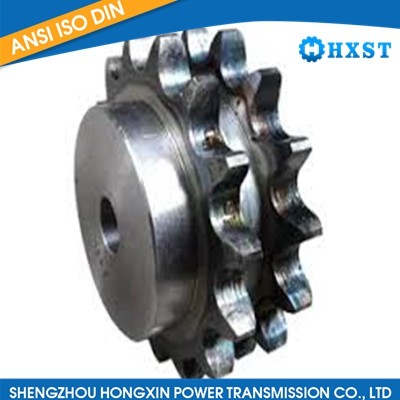

12B-1-2-3 Sprockets

12B single, double and triple sprockets are manufactured to ISO/R 606 and DIN 8187 standards and are suitable for 3/4" × 7/16" roller chains. These sprockets are widely used in power transmission equipment, providing stable transmission, high precision and full interchangeability.

Material: C45, Weld on hub

For quotations or further technical information, please contact us and we will be pleased to assist you.

Key Features

  • Single / double / triple stock bore sprocket
  • High-precision tooth profile
  • Interchangeable with standard brands
  • OEM service available

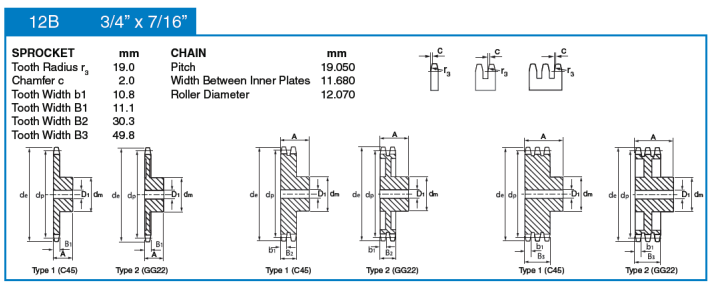

12B-1-2-3 Sprockets Dimensions

SPROCKETS 3/4" × 7/16" | For chain according to DIN 8187, ISO/R 606
Tooth radius r₃ 19 mm

Heavy-duty 12B 1-2-3 sprocket with keyway and mounting holes


Chain Pitch: 19.05 mm
Internal width: 11.68 mm
Roller Φ: 12.07 mm
Radius width C 2 mm
Tooth width B₁ 11.1 mm
Tooth width b₁ 10.8 mm
Tooth width B₂ 30.3 mm
Tooth width B₃ 49.8 mm

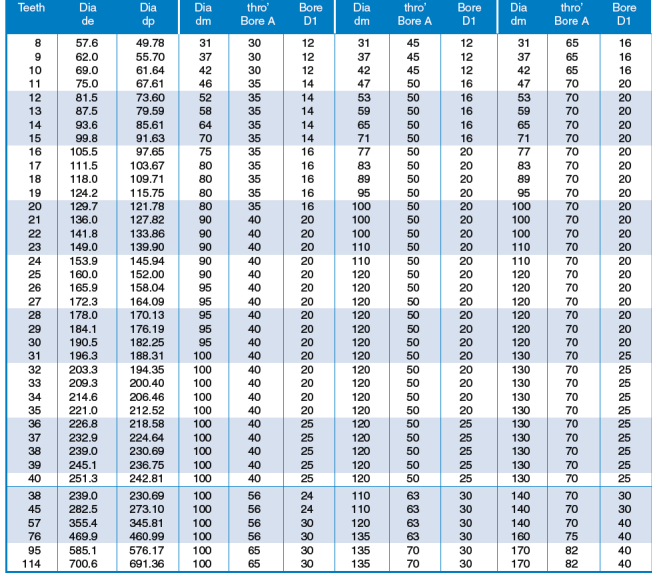

Dimension Table by Number of Teeth

Z dₐ dₚ SIMPLEX
dₘ / D₁ / A
DUPLEX
dₘ / D₂ / A
TRIPLEX
dₘ / D₃ / A
8 57.6 49.78 31 12 30 31 12 45 31 16 65
9 62.0 55.70 37 12 30 37 12 45 37 16 65
10 69.0 61.64 42 12 30 42 12 45 42 16 65
11 75.0 67.61 47 14 35 47 16 50 47 20 70
12 81.5 73.59 52 14 35 52 16 50 52 20 70
13 87.5 79.56 58 14 35 59 16 50 59 20 70
14 93.6 85.61 64 14 35 64 16 50 64 20 70
15 99.8 91.63 70 14 35 71 16 50 71 20 70
16 105.5 97.67 75 16 35 77 20 50 77 20 70
17 111.5 103.67 80 16 35 83 20 50 83 20 70
18 118.0 109.71 80 16 35 89 20 50 89 20 70
19 124.2 115.75 80 16 35 89 20 50 89 20 70
20 129.8 121.79 90 16 35 100 20 50 100 20 70
21 136.0 127.82 90 20 35 100 20 50 100 20 70
22 141.0 133.86 90 20 35 100 20 50 100 20 70
23 149.0 139.90 90 20 40 110 20 50 110 20 70
24 153.9 145.94 90 20 40 110 20 50 110 20 70
25 160.5 151.98 95 20 40 120 20 50 120 20 70
26 165.9 158.04 95 20 40 120 20 50 120 20 70
27 172.3 164.09 95 20 40 120 20 50 120 20 70
28 178.0 170.13 95 20 40 120 20 50 120 20 70
29 184.1 176.18 95 20 40 120 20 50 120 20 70
30 190.1 182.22 95 20 40 120 20 50 120 20 70
31 196.3 188.31 95 20 40 120 20 50 120 20 70
32 202.3 194.35 95 20 40 120 20 50 120 20 70
33 209.3 200.40 95 20 40 120 25 60 130 25 70
34 214.6 206.46 95 20 40 120 25 60 130 25 70
35 221.0 212.52 100 20 40 120 25 60 130 25 70
36 226.8 218.58 100 20 40 120 25 60 130 25 70
37 232.9 224.63 100 20 40 120 25 60 130 25 70
38 239.0 230.69 100 20 40 120 25 60 130 25 70
39 245.1 236.75 100 20 40 120 25 60 130 25 70
40 251.3 242.81 100 20 40 120 25 60 130 25 70
41 257.3 248.86 110 20 56 136 25 62 140 25 70
42 264.5 254.92 110 20 56 136 25 62 140 25 70
43 270.5 260.98 110 20 56 136 25 62 140 25 70
44 276.6 267.03 110 20 56 136 25 62 140 25 70
45 282.7 273.09 110 20 56 136 25 62 140 25 70
46 288.9 279.15 110 20 56 136 25 62 140 25 70
47 294.0 285.21 110 20 56 136 25 62 140 25 70
48 300.1 291.27 110 20 56 136 25 62 140 25 70
49 306.2 297.32 110 20 56 136 25 62 140 25 70
50 312.3 303.38 110 20 56 136 25 62 140 25 70
51 318.4 309.44 110 20 56 136 25 62 140 25 70
52 324.5 315.50 110 20 56 136 25 62 140 25 70
53 330.5 321.55 110 20 56 136 25 62 140 25 70
54 336.6 327.61 110 20 56 136 25 62 140 25 70
55 342.7 333.67 110 20 56 136 25 62 140 25 70
56 348.8 339.73 110 20 56 136 25 62 140 25 70
57 354.9 345.79 110 20 56 136 25 62 140 25 70
58 361.5 351.87 110 20 56 136 25 62 140 25 70
59 367.5 357.93 110 20 56 136 25 62 140 25 70
60 373.6 363.99 110 20 56 136 25 62 140 25 70
62 385.7 376.10 110 20 56 136 25 62 140 25 70
64 397.2 388.24 110 20 56 140 25 63 140 25 70
65 403.2 394.30 110 20 56 140 25 63 140 25 70
66 409.3 400.36 110 20 56 140 25 63 140 25 70
68 421.4 412.47 110 20 56 140 25 63 140 25 70
70 433.6 424.59 110 20 56 140 25 63 140 25 70
72 447.0 436.73 110 20 56 140 25 63 140 25 70
75 463.9 454.92 110 20 56 140 25 63 140 25 70
76 469.9 460.98 110 20 56 140 25 63 140 25 70
78 482.0 473.10 110 20 56 140 25 63 140 25 70
80 494.2 485.24 110 20 56 140 25 63 140 25 70
85 524.5 515.54 110 20 56 140 25 63 140 25 70
90 554.8 545.76 110 20 56 140 25 63 140 25 70
95 585.1 576.05 110 20 56 140 25 63 140 25 70
100 615.4 606.17 110 20 56 140 25 63 140 25 70
110 676.0 666.71 110 20 56 140 25 63 140 25 70
114 700.6 690.84 110 20 56 140 25 63 140 25 70
120 736.7 727.08 110 20 58 140 25 63 140 25 70
125 767.2 757.56 110 20 58 140 25 63 140 25 70

What is 12B 1-2-3 Chain Sprocket?

The 12B 1-2-3 Chain Sprocket is a roller chain sprocket designed for 3/4" × 7/16" chains and manufactured to ISO/R 606 and DIN 8187 standards. It is available in single, double, and triple strand configurations to suit different power transmission requirements. Common materials include C45 carbon steel and stainless steel, with surface treatments such as hardened teeth, black oxide, zinc plating, and electrophoresis. The sprocket is used in power transmission equipment and offers stable transmission, high precision, and full interchangeability.

Applications

  • Power transmission equipment
  • Industrial machinery drives
  • Conveyor systems
  • Agricultural equipment
  • Material handling systems

FAQ

What chain size does the 12B sprocket fit?

The 12B sprocket is designed for 3/4" × 7/16" roller chains.

What standards does the 12B 1-2-3 sprocket meet?

It is manufactured to ISO/R 606 and DIN 8187 standards.

What materials are available for the 12B sprocket?

Common materials include C45 carbon steel and stainless steel.

What surface treatments can be provided?

Available surface treatments include teeth hardened, black oxide, zinc plated, and electrophoresis.

Is the 12B sprocket available in different strand configurations?

Yes, it is available in single, double, and triple strand versions.

Related Products

32B 1-2-3 Chain Sprocket

HXST-018
32B 1-2-3 Chain Sprocket

28B 1-2-3 Chain Sprocket

HXST-017
28B 1-2-3 Chain Sprocket

24B 1-2-3 Chain Sprocket

HXPT-016
24B 1-2-3 Chain Sprocket

20B 1-2-3 Chain Sprocket

HXST-015
20B 1-2-3 Chain Sprocket

Product Categories

  • ISO Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • ASA Sprocket
    • Taper lock Sprocket
    • Ball Bearing Idler Sprocket
    • 06B 08B 10B 12B 16B Stainless steel Sprocket
    • 06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain
    • Butterfly valve
  • ANSI Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • WELD-ON Sprocket
    • Taper lock Sprocket
    • Stainless Steel Sprocket
    • Ball Bearing Idler Sprocket
    • Double Platewheels For 2 Single Chain
    • Taper Lock Double platewheels for Two single chain
    • Double Pitch Sprocket
    • Sprocket With Split Taper Bushing
    • QD Bushing Sprocket
  • KANA Sprocket
    • Stock Sprocket
    • Finished Bore Sprocket
    • Double Sprocket
    • Single Double Sprocket
    • Stainless Steel Sprocket
    • Double Pitch Sprocket
  • Standard Pulley
    • Stock Standard Pulley
    • Taper Bore Pulley
    • Sheaves
  • Timing Pulley
    • H Timing Pulley
    • Timing Pulley XH
    • Timing Pulley MXL
    • Timing Pulley L
    • T Timing Pulley
    • Timing Pulley AT
    • Timing Pulley HTP
  • Roller Chain
    • Short Pitch Precision Roller Chain(A Series)
    • Short pitch precision roller chain(B series)
    • Double Pitch Roller Chain
    • Heavy Type Chain
    • Hollow Pin Chain
    • Straight Link Plate Chain
    • Cotter Type Chain
    • Nickel-Plated Chain
    • Zinc-Plated Chain
    • Coupling Roller Chain
    • Stainless Steel Roller Chain
  • Conveyor Chain
    • Lumber Conveyor Chain
    • M Series Conveyor Chain
    • MT Series Conveyor Chain
    • MC Series Conveyor Chain
    • FV Conveyor Chain
    • Double plus chain
    • Side Bow Chain
    • Sugar Chain
    • WDH Drag Chains
    • Rubber Gloves Machine Conveyor Chain
  • Attachment Roller Chain (Pre-Made)
    • A1 Attachment Roller Chain
    • K-1 Attachment Roller Chain
  • Transmission Chain
    • Motorcycle Chain
    • Silent Chain
    • Coupling Chain
  • Engineering Chain
    • Welded Steel Chain
    • Steel Pintle Chain
    • Double Flex Chain
  • Leaf Chain
    • AL Leaf Chain
    • BL Leaf Chain
    • EL Leaf Chain
  • Agricultural Chain
    • S Type Steel Agricultural Chain
    • CA Type Steel Agricultural Chain
    • A Type Steel Agricultural Chain
    • ZGS38 Combine Harvester Chain
    • Corn Harvester Chain
  • Gear and Rack
    • Gear
    • Gear Rack
  • Coupling
    • Gear Coupling with Nylon Outer Sleeve
    • L Jaw Type Coupling
    • KC Chain Coupling
  • QD Bushing / HUB
    • QD Bushing
    • WH WELD-ON HUB
    • Taper Bolt- ON HUB
    • Taper Bushing
    • Steel Hubs For Split Taper Bushing
    • XTB Bushing
  • Escalator Part
    • Escalator Sprocket
    • Escalator Chain
  • Non-standard custom sprocket
    • Agricultural Sprocket
    • Oil Field Sprocket
    • Conveyor Sprocket
    • Split Roller Chain Sprocket
    • Ready Sprockets
    • Car washing sprocket
    • Car Parking Sprocket
    • Conveyor packaging sprocket
    • Metallurgical sprocket
    • Timber processing chain conveyor sprocket
    • Lift Conveyoring Equipment Sprocket
    • Mining equipment sprocket
    • Textile machinery equipment sprocket
    • Recycling Mechanical Sprocket
    • Glass equipment chain conveyor sprocket
    • Sugar machine chain sprocket
    • Cotton picking machine sprocket
    • Fruit and vegetable cleaning machine sprocket
    • Baler equipment sprocket
    • Blueberry harvester equipment sprocket
    • Walnut harvester system equipment sprocket
    • Nitrile/Rubber Glove Production Line Sprocket
  • Bearing
    • Deep groove ball bearing
    • Angular contact ball bearings
    • Thrust ball bearing
    • Pillow Block Bearing
    • Car Wheel Hub Beaing
    • Single Row Ball Slewing Bearing (Series 01)
    • Single row four point contact ball slewing bearing (Q series)
    • Single Row Ball Slewing Bearing Non Gear (HS series)
    • Single row cross roller slewing bearing (11 series)
    • Single row cross roller slewing bearing (HJ series)
    • Double volleyball slewing bearing (02 series)
    • Three-row roller slewing bearing (13 series)
  • Motor
  • Idlers
  • Spring
    • Compressed spring
    • Stretch spring
    • Twist spring
    • Alien spring
    • Touch spring
  • Valve
    • Gallery valve
    • Cut -off valve
    • Special valve of melamine
    • Wear -resistant valve series
  • Industrial fan
    • Hybrid fan series
    • Roof fan series
    • Fire fire exhaust fan series
    • Low noise shaft circulation fan series
  • Locking Ring
  • Punching Machine
    • Closed Double Point Press
    • High Precision Compact Power Press
    • High Speed Precision Punch
    • Straight Side Double Crank Servo Press
    • Closed Type High Precision Press
  • Universal Joint
  • CNC Machine Processing
    • Aluminum Parts
    • Mechanical Parts
    • Milling Parts
    • Die Casting Parts
    • Forging Parts
    • Stainless steel precision parts
    • Traditional car accessories
  • Industrial ceiling electric fan

Links

Paint Brush Manufacturer Sheet Metal Fabrication  Bearing Beer Equipment Manufacturer Black epoxy adhesive Advertising Products

LatestPost

  • Synchronous pulley design steps and how to choose the right motor?
    Synchronous pulley design steps and how
    2019-10-12
  • Chain Maintenance Method and Steps
    Chain Maintenance Method and Steps
    2019-09-29
  • Advantages of synchronous pulley
    Advantages of synchronous pulley
    2019-09-29

Get a Quote

Contact Us

008615336786278

008615336786278

sales@hxsprocket.com

NO.2 Youth Road Sanjie Town Shengzhou City,Zhejiang Province, China

WeChat

Scan the QR code to add us on WeChat.

WeChat QR Code

Copyright © 2008-{year} Shengzhou Hongxin Transmission Co., Ltd. All rights reserved.

Links: Paint Brush Manufacturer Sheet Metal Fabrication  Bearing Beer Equipment Manufacturer Black epoxy adhesive Advertising Products

WhatsApp
Phone
E-mail
Inquiry

  • sales@hxsprocket.com
  • 15336786278Scan to chat on WhatsApp
  • WeChat QR CodeScan to chat on WeChat
  • Inquiry
  • Back to Top

Online Inquiry

Get a quote within 12 hours

Tell us what you need — we'll reply as soon as possible.
