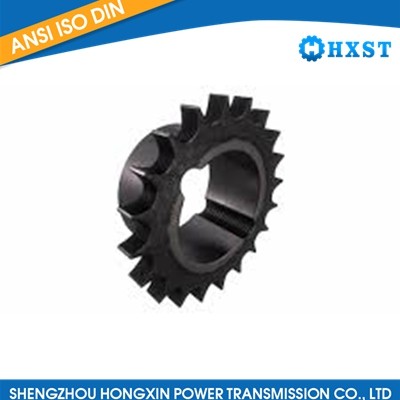

10B-1 Taper lock Sprocket
  1. 10B-1 Taper lock Sprocket

10B-1 Taper lock Sprocket

Product Item:HXPT-045

Model: 10B-1 Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Taper lock Sprocket，10B-1
Send Inquiry Live chat

Description

Simplex Taperlock sprockets 10B-1

  • ISO-No.: 10 B-1 (5/8“ x 3/8“)
  • pitch: 15,875 mm
  • inner width: 9,65 mm
  • roller-dia.: 10,16 mm
  • tooth width: 9,1 mm
  • ba 1,6 mm (radius width)
  • rx 16 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub-dia. total length for
d do ND L bush
13 66,32 73,0 47 22 1008
14 71,34 78,0 52 22 1108
15 76,36 83,0 60 25 1210
16 81,37 88,0 70 25 1610
17 86,36 93,0 71 25 1610
18 91,42 98,3 75 25 1610
19 96,45 103,3 75 25 1610
20 101,49 108,4 75 25 1610
21 106,52 113,4 76 25 1610
22 111,55 118,0 76 25 1610
23 116,58 123,4 76 25 1610
24 121,62 128,3 90 32 2012
25 126,66 134,0 90 32 2012
26 131,70 139,0 90 32 2012
27 136,75 144,0 90 32 2012
28 141,78 148,7 90 32 2012
30 151,87 158,8 90 32 2012
38 192,24 199,2 100 32 2012
Material: cast iron (GG-22)
45 227,58 235,0 100 32 2012
57 288,18 296,0 100 32 2012
76 384,16 392,1 100 32 2012
95 480,14 488,5 110 45 2517
114 576,13 584,1 110 45 2517
