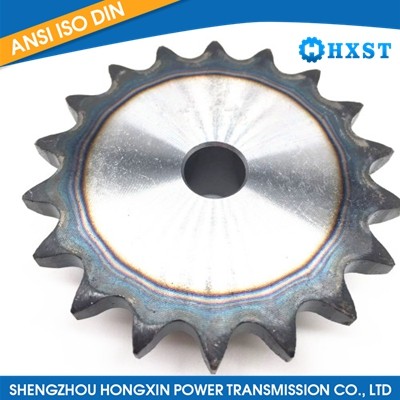

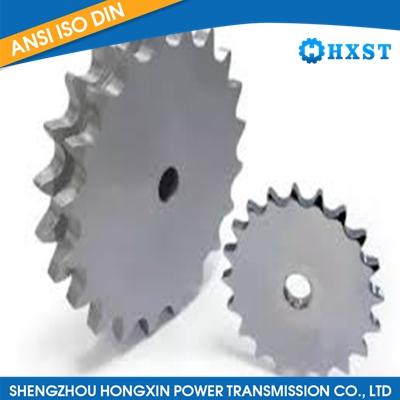

10A 1-2-3 Plate wheel Sprocket

Product Item:HXST-003

10A 1-2-3 Plate wheel Sprocket

C45, stainless steel, etc.

Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Standard export case, individual package (neutral or colorbox) available.

10a 1-2-3 plate wheel sprocket , plate sprockets , a plate sprocket
Send InquiryLive chat

DescriptionQuick Answers

10A-1-2-3 Platewheels Sprocket

10A single, double and triple plate wheel sprockets are manufactured to ISO/R 606 and DIN 8187 standards and are suitable for 5/8" × 3/8" roller chains. These sprockets are widely used in power transmission equipment, providing stable transmission, high precision and full interchangeability.

For quotations or further technical information, please contact us and we will be pleased to assist you.

Key Features

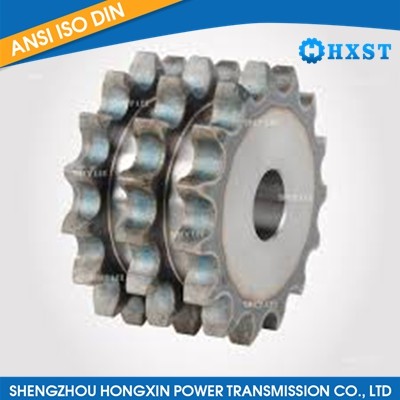

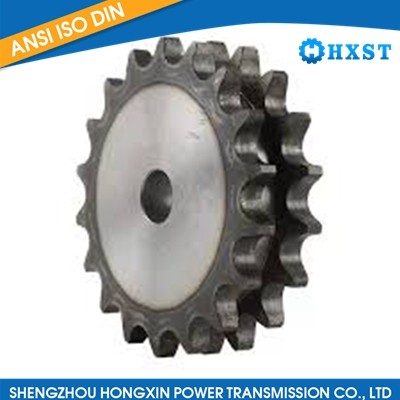

  • Single / double / triple stock bore plate sprocket
  • High-precision tooth profile
  • Interchangeable with standard brands
  • OEM service available

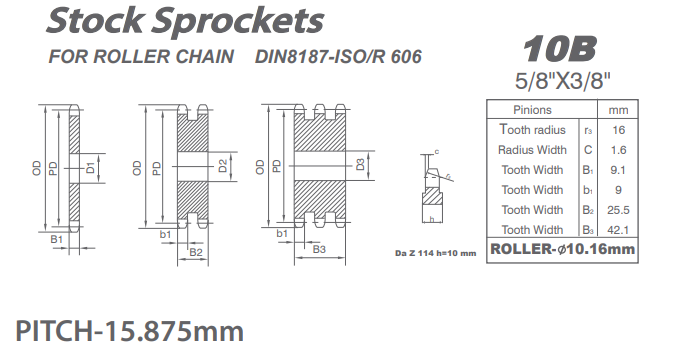

10A-1-2-3 Platewheels Dimensions

PLATEWHEELS 5/8" × 3/8" | For chain according to DIN 8187, ISO/R 606
Tooth radius r₃ 16 mm

10A 1-2-3 Plate wheel Sprocket


Chain Pitch: 15.875 mm
Internal width: 9.65 mm
Roller Φ: 10.16 mm
Radius width C 1.6 mm
Tooth width B₁ 9.1 mm
Tooth width b₁ 9 mm
Tooth width B₂ 25.5 mm
Tooth width B₃ 42.1 mm

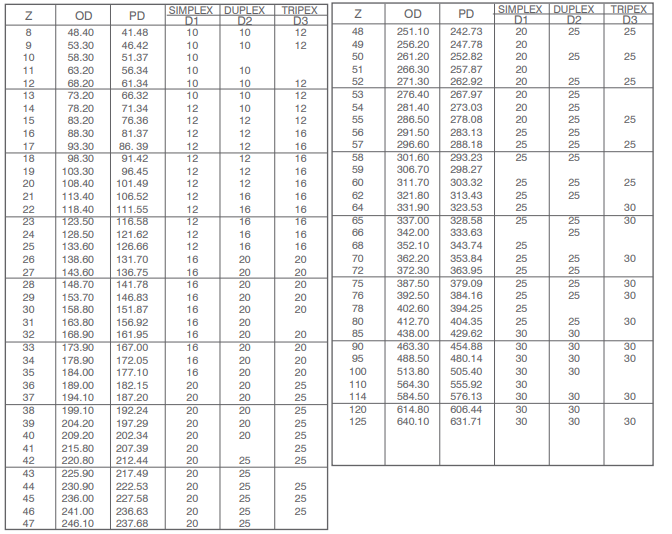

Dimension Table by Number of Teeth

Z dₐ dₚ S (D₁) D (D₂) T (D₃)
8 47.0 41.48 10 10 12
9 52.6 46.42 10 10 12
10 57.5 51.37 10 10 12
11 63.0 56.34 10 10 12
12 67.5 61.34 10 10 12
13 73.0 66.32 10 10 12
14 78.0 71.34 10 10 12
15 83.0 76.36 10 12 16
16 88.0 81.36 12 12 16
17 93.0 86.39 12 12 16
18 98.3 91.42 12 12 16
19 103.3 96.45 12 12 16
20 108.4 101.49 12 12 16
21 113.4 106.52 12 16 16
22 118.0 111.55 12 16 16
23 123.5 116.58 12 16 16
24 128.3 121.62 12 16 16
25 134.0 126.65 12 16 16
26 139.0 131.67 16 16 16
27 144.0 136.75 16 16 16
28 148.7 141.78 16 16 20
29 153.8 146.83 16 16 20
30 158.8 151.87 16 16 20
31 163.9 156.91 16 16 20
32 168.9 161.95 16 16 20
33 174.5 167.00 16 16 20
34 179.0 172.05 16 16 20
35 184.1 177.10 16 16 20
36 189.2 182.15 16 20 20
37 194.1 187.20 16 20 20
38 199.2 192.24 20 20 25
39 204.2 197.29 20 20 25
40 209.8 202.34 20 20 25
41 214.9 207.38 20 20 25
42 219.9 212.43 20 20 25
43 224.9 217.48 20 20 25
44 230.0 222.53 20 20 25
45 235.1 227.57 20 20 25
46 240.1 232.62 20 20 25
47 245.1 237.67 20 20 25
48 250.2 242.73 20 25 25
49 255.2 247.78 20 25 25
50 260.3 252.82 20 25 25
51 265.3 257.87 20 25 25
52 270.4 262.92 20 25 25
53 275.4 267.97 20 25 25
54 280.5 273.03 20 25 25
55 285.5 278.08 20 25 25
56 290.6 283.13 20 25 25
57 295.6 288.18 20 25 25
58 300.7 293.23 25 25 25
59 305.7 298.28 25 25 25
60 310.8 303.33 25 25 25
62 321.1 313.43 25 25 25
64 331.5 323.53 25 25 25
65 336.5 328.58 25 25 30
66 341.6 333.64 25 25 30
68 351.7 343.74 25 25 30
70 361.9 353.84 25 25 30
72 371.9 363.94 25 25 30
75 387.1 379.10 25 25 30
76 392.1 384.15 25 25 30
78 402.2 394.25 25 25 30
80 412.3 404.36 25 25 30
85 437.6 429.62 30 30 30
90 462.8 454.88 30 30 30
95 488.5 480.14 30 30 30
100 513.9 505.40 30 30 30
110 564.7 555.91 30 30 30
114 584.1 576.13 30 30 30
120 614.4 606.45 30 30 30
125 639.7 631.71 30 30 30

What is 10A 1-2-3 Plate wheel Sprocket?

The 10A 1-2-3 Plate wheel Sprocket is a roller chain sprocket designed for 5/8" × 3/8" chains and manufactured to ISO/R 606 and DIN 8187 standards. It is available in single, double, and triple plate configurations to suit different power transmission requirements. The sprocket is typically made from C45 carbon steel or stainless steel, with optional surface treatments such as teeth hardening, black oxide, zinc plating, or electrophoresis. It offers stable transmission, high precision, and full interchangeability with standard brands.

Applications

  • Power transmission equipment
  • Conveyor systems
  • Industrial machinery drives
  • Agricultural equipment
  • Material handling systems

FAQ

What chain size does the 10A sprocket fit?

The 10A sprocket is designed for 5/8" × 3/8" roller chains according to DIN 8187 and ISO/R 606 standards.

What materials are available for this sprocket?

Standard material is C45 carbon steel; stainless steel is also available upon request.

What surface treatments can be applied?

Options include teeth hardening, black oxide, zinc plating, and electrophoresis.

Is the sprocket interchangeable with other brands?

Yes, the 10A plate wheel sprocket is manufactured to standard dimensions and is fully interchangeable with standard brands.

What packaging options are offered?

Standard export case or individual package (neutral or colorbox) are available.
