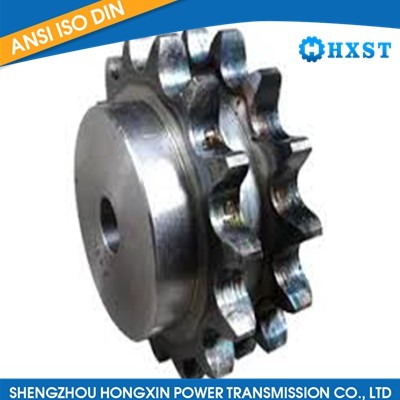

100B-2 ASA Duplex Sprocket
  1. 100B-2 ASA Duplex Sprocket

100B-2 ASA Duplex Sprocket

Product Item:HXPT-037

Model: 100B-2 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

ASA Sprocket，100B-2
Send Inquiry Live chat

Description

Duplex-sprockets ASA100-2

Duplex-sprockets ASA100-2 (20A-2) acc. to DIN 8188
  • ISO-No.: ASA100-2 = 20A-2 (1 1/4“ x 3/4″)
  • pitch: 31,75 mm
  • inner width: 19,05 mm
  • Roller-dia.: 19,05 mm
  • tooth width bf2: 53,5 mm
  • ba 4,0 mm (radius width)
  • rx 33,5 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
Material steel/C45 do dk dn d1 d2 L kg
12 112,70 137,8 90 20 50 80 4,66
13 132,70 147,8 100 20 56 80 5,70
14 142,70 157,8 110 20 60 80 6,84
15 152,70 167,9 120 20 75 80 8,08
16 162,80 177,9 120 25 75 80 8,90
17 172,80 187,9 120 25 75 80 9,92
