WH WELD-ON HUB

Description

WH WELD-ON HUB refers to a specific type of hub that is designed to be welded onto a shaft or surface. Here are some key details about WH weld-on hubs:

Function: The primary function of a WH weld-on hub is to provide a secure and durable connection between a shaft or surface and a rotating component, such as a pulley, sprocket, or Gear. It facilitates the transfer of torque from the shaft to the component.

Weld-On Design: WH weld-on hubs are specifically designed for welding onto shafts or surfaces. They have a cylindrical shape with a flange or hub face that can be welded directly to the corresponding shaft or surface, providing a strong and rigid connection.

Construction and Material: WH weld-on hubs are typically made from steel or other suitable alloys to ensure strength and durability. The material choice depends on factors such as load capacity, operating conditions, and environmental considerations.

Bore Size and Configuration: WH weld-on hubs come with different bore sizes to accommodate various shaft diameters. The bore may have a plain cylindrical design or feature additional features like keyways or splines to provide a more secure fit with the shaft.

Applications: WH weld-on hubs are widely used in various industrial applications where a reliable and robust connection between a shaft or surface and a rotating component is required. They are often found in power transmission systems, conveyor systems, machinery, and equipment that require precise torque transfer.

Installation: Installing a WH weld-on hub involves welding it directly onto the shaft or surface using appropriate welding techniques and equipment. Proper alignment and welding procedures are crucial to ensure a strong and reliable connection.

Maintenance: Regular inspection for wear, damage, or any signs of weld failure is important to maintain the integrity of the connection. Any necessary repairs or maintenance should be performed by qualified personnel following industry standards and guidelines

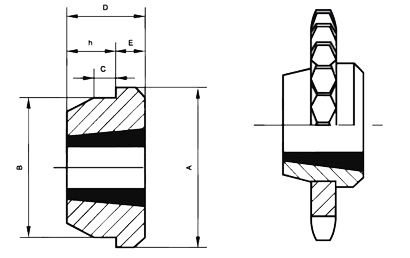

WH WELD-ON HUBS

Spc. Bush No. A B C D E h WH1210 1210 73 60 10 25 9 16 WH1215 1215 76 60 11 38 16 22 WH1610 1610 83 70 10 25 9 16 WH1615 1615 83 70 11 38 16 22 WH2012 2012 96 90 12 32 10 22 WH2517 2517 127 110 13 45 19 26 WH3020 3020 152 130 18 51 24 27 WH3030 3030 152 130 19 76 25 51 WH3525 3525 184 155 25 65 25 40 WH3535 3535 184 155 25 89 32 57 WH4040 4040 225 195 35 102 32 70 WH4545 4545 254 220 40 114 38 76 WH5050 5050 276 242 40 127 38 89
