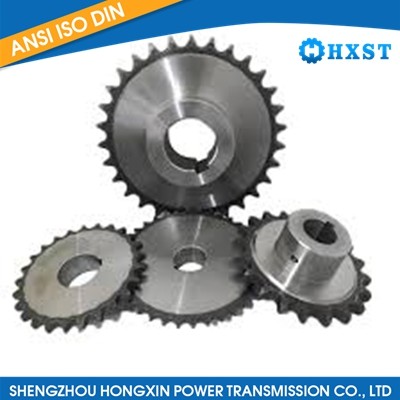

06B Finished Bore Sprocket
  1. 06B Finished Bore Sprocket

06B Finished Bore Sprocket

Product Item:HXST-019

Model: 06B Finished Bore Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

06b finished bore sprocket , finished bore sprockets , 1 inch bore sprocket , 06b sprocket , 06b17 sprocket
Send InquiryLive chat

Description

ISO Roller Chain Sprockets Specifications
CHAIN SPROCKET
mm
ROLLER CHAIN
mm
Tooth Width B1
5.3
Chain Pitch
9.525
Hub Configuration
B
Roller Dia
6.35
Tooth Width B2
15.4
Chain Number
06
Tooth Width B3
25.6
Number of Chain Rows
1-2-3
Number of Teeth
8 - 125
European Standard sprocket
Hardened Teeth
Up to customer
Bore Type
Stock Bore
Min bore size
6
Max bore size
30
Product Information

HXST-POWER RANSMISSIONS are able to provide high quality standard chain and sprocket,

include 06 chain sprocket (9.525 pitch chain sprocket).

Example:

10 tooth sprocket 06 chain.

15 tooth sprocket 06 chain.

30 tooth sprocket 06 chain.

72 tooth sprocket 06 chain...


High quality:

√ Corrosion resistance

√ Durable, robust and reliable

√ Bad condition resistance.

Adapted to:

* roller chains based on the requirements of ISO/R 606

* all sprockets with pilot bore

* available with type A platewheels,simplex roller chain sprockets,duplex roller chain sprockets,triplex roller chain sprockets,four strand roller chain sprocket

* material used for chain sprocket carbon steel 45

* heat treatment and special surface treatments are available on request:

black oxide sprocket with teeth hard

HXST-POWER TRANSMISSION ISO Transmission Chains and sprockets are widely used in Agriculture,Printing,Chemical,Food and Beverage,General Machinery,Oil and Gas,Packaging and Logistics,Paper Industry,Textile industry,Woodeworking Machinery and so on.


The biggest characteristic is that the sprockets can be customized in different standard and materials according to your requirements. Made from the steel and the up-to-date skills as well as precision procedures, the high quality sprockets can withstand strong pressure and high temperature.
