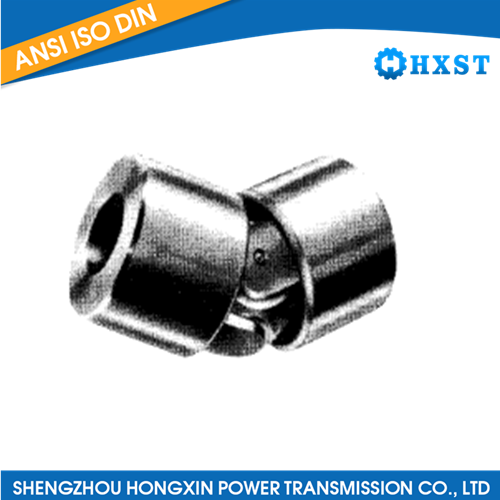

Single Universal Joint with Bore
  1. Single Universal Joint with Bore

Single Universal Joint with Bore

Product Item:HXST-1812

Model:Single Universal Joint with Bore

Material: Typically made from high-quality materials such as alloy steel or stainless steel to ensure durability and strength.

Installation: The bore allows for straightforward installation by fitting the universal joint onto shafts or other components using appropriate fasteners

Operating Conditions: Can operate under a wide range of temperatures, speeds, and environmental conditions, depending on the specific design and material selection

Single Universal Joint with Bore , single universal joint , universal joint 1 inch bore , what is a universal joint used for1/2 inch universal joint socket
Send InquiryLive chat

Description

A single universal joint with a bore refers to a specific type of mechanical joint used to transmit rotational motion between two non-aligned shafts. Here's an explanation of its components:

Universal Joint: The universal joint, also known as a U-joint or Cardan joint, is a flexible coupling that allows for the transmission of torque and rotation between two non-aligned shafts. It consists of a cross-shaped component with bearings at each end and yokes connected to the shafts.

Bore: The term "bore" refers to a central hole or opening in one or both of the yokes of the universal joint. The bore allows the joint to be mounted directly onto a shaft, typically through the use of fasteners like set screws or clamps.

The single universal joint with a bore is commonly used in applications where there is a need to connect two non-aligned shafts while transmitting rotational motion efficiently. The bore feature enables easy and secure mounting onto the shafts, facilitating a reliable and compact connection.

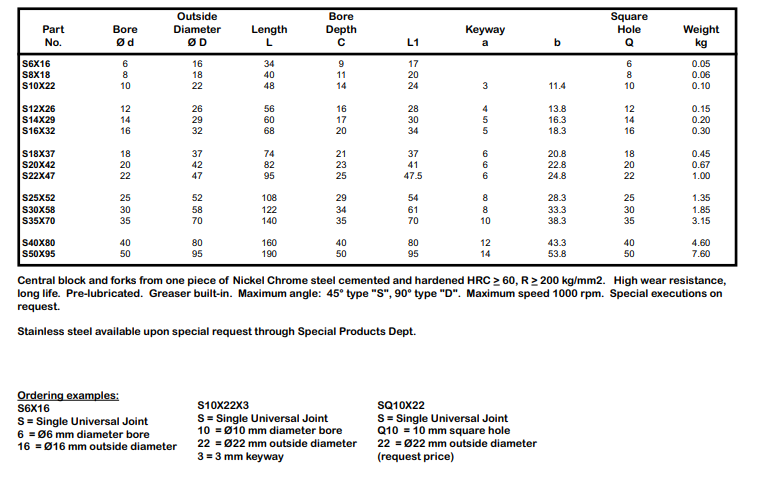

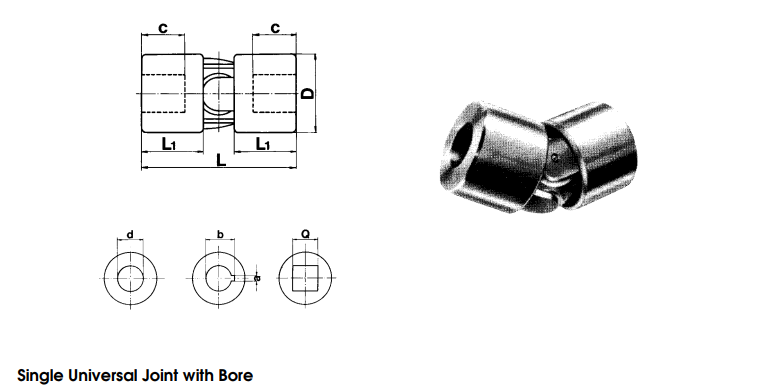

It's important to note that the specific design and dimensions of the universal joint, including the bore size, will depend on the application requirements and the load and speed conditions it needs to handle. Proper alignment, lubrication, and maintenance are crucial for ensuring optimal performance and longevity of the single universal joint with a bore.
