Single Row Ball Slewing Bearing Non Gear
  1. Single Row Ball Slewing Bearing Non Gear

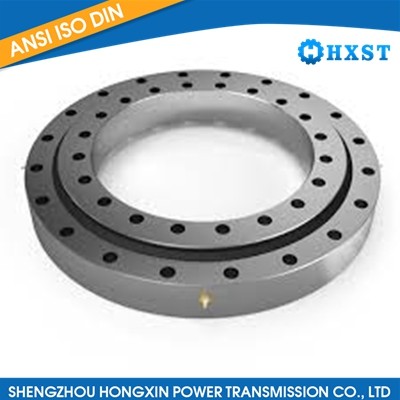

Single Row Ball Slewing Bearing Non Gear

Product Item:HXPT-392

Model: Single Row Ball Slewing Bearing Non Gear

Material: bearing steel

Delivery time: 10-20 Day

Packaging: export standard packaging

Single Row Ball Slewing Bearing Non Gear
Send Inquiry Live chat

Description


Structural characteristics, performance and scope of application

The single-row four-point contact spherical slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. Rotary conveyor, welding operator, small and medium cranes and excavators are optional construction machinery.

Note:
1. n1 is the number of lubricating oil holes, evenly distributed: oil cup M10×1 JB/T7940.1-JB/T7940.2
2. The mounting holes n-dn1 and n-dn2 can be changed to screw holes; the tooth width b can be changed to H-h.
