Side Bow Chain
  1. Side Bow Chain

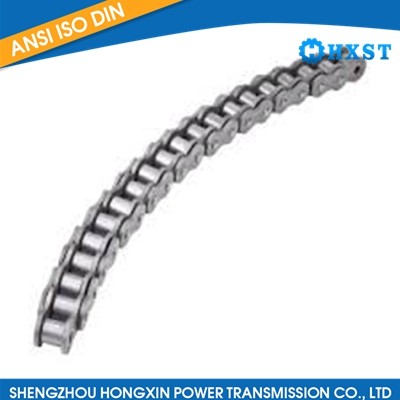

Side Bow Chain

Product Item:HXPT-298

Model: Side Bow Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Side Bow Chain
Send Inquiry Live chat

Description

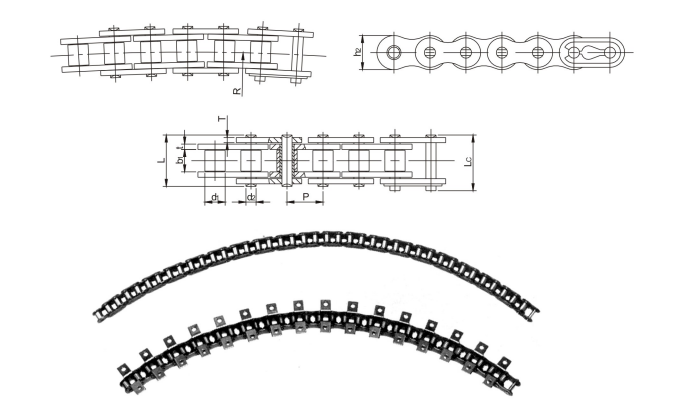

Side bow chain

Side bow roller chains are extra-clearance chains with the ability to permit side flexing and twisting. We exports side bow roller chains from 35SB to 80SB and 08BSB and 10BSB, which are specially designed for the curved conveyor application on bottling, packaging, canning, and conveying machinery. They are made of the same high quality materials and specifications, and undergoes the same manufacturing processes and precision finishing as ANSI standard roller chains. Stainless steel side bow roller chains and attachments for conveyor purpose are also available
Flat-top chain

CHAIN NO.
(ANSI)
Pitch Width Roller Plate Pin Min
curve
Radius
Average
 Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H1 H2 T1 T2 D F G r
35SB 3/8" 9.525 4.80 5.08 7.60 9.00 1.20 1.20 3.28 5.80 7.00 254 900 0.32
40SB 1/2" 12.70 7.94 7.95 10.20 12.00 1.50 1.50 3.86 8.10 9.10 350 1600 0.60
40NSB 1/2" 12.70 7.94 7.95 10.6 12.00 1.50 1.50 3.58 8.40 9.50 320 1300 0.5
50SB 5/8" 15.875 9.53 10.16 13.00 14.80 2.00 2.00 4.44 10.45 11.90 400 2200 0.99
63SB 3/4" 19.05 12.70 11.91 15.50 18.10 2.00 2.35 5.06 14.38 14.38 400 2700 1.39
63SBSS 3/4" 19.05 12.70 11.91 15.50 18.10 2.00 2.35 5.06 14.38 14.38 400 --- 1.39
603SB 3/4" 19.05 12.70 11.91 15.50 18.10 2.35 2.35 5.06 12.88 14.48 400 2700 1.46
60SB 3/4" 19.05 12.70 11.91 15.50 17.5 2.35 2.35 5.06 12.88 14.48 400 2700 1.40

* Rollerless chain, R indicates bushing diameter.
Stainless steel or special coating are supplied on request.
