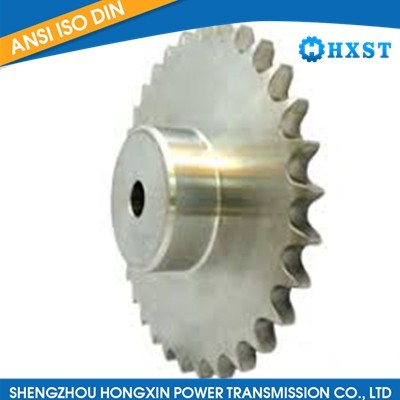

NK SUS 80B-1 Stainless Steel Sprocket

Product Item:HXPT-168

Model:NK SUS 80B-1 Stainless Steel Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Chain Pitch (P) 25.4 mm(1 inch)

Inner Width (W) 15.88 mm

Roller Dia. (Dr) 15.88 mm

Tooth Width (T) 14.6 mm

Sprocket No. Outside Dia.
Do Pitch Dia.
Dp Bore Dia. d Hub Weight
(kg) Material Teeth

Type Teeth Stock Bore Min. Max. BD BL

SUS80B 10 93 82.19 16 18 32 52 40 1.02 Stainless Steel
SUS304 10

11 102 90.15 16 18 38 60 40 1.25 11

12 110 98.14 19 21 45 67 40 1.60 12

13 118 106.14 19 21 51 77 40 1.90 13

14 127 114.15 19 21 51 77 40 2.15 14

15 135 122.17 19 21 63 93 40 2.30 15

16 143 130.20 19 21 63 93 40 2.50 16

17 151 138.23 19 21 63 93 40 2.95 17

18 159 146.27 19 21 63 93 40 3.15 18

19 167 154.32 19 21 63 93 40 3.40 19

20 176 162.37 19 21 63 93 40 3.60 20

21 184 170.42 19 21 63 93 40 3.85 21

22 192 178.48 22 24 63 93 45 5.00 Stainless Steel
SUS304
Welded Hub
22

23 200 186.54 22 24 63 93 45 5.23 23

24 208 194.60 22 24 63 93 45 5.50 24

25 216 202.66 22 24 63 93 45 5.80 25

26 224 210.72 28 30 63 93 45 6.10 26

27 233 218.79 28 30 63 93 45 6.40 27

28 241 226.86 28 30 63 93 45 6.75 28

29 249 234.93 28 30 63 93 45 7.10 29

30 257 243.00 28 30 63 93 45 7.40 30

31 265 251.07 28 30 63 93 45 7.80 31

32 273 259.14 28 30.5 63 93 45 8.15 32

33 281 267.21 28 30 63 93 45 8.50 33

34 289 275.29 28 30 63 93 45 8.90 34

35 297 283.36 28 30 63 93 45 9.30 35

36 306 291.43 28 30 63 93 45 10.60 36

37 314 299.51 28 30 63 93 45 11.00 37

38 322 307.58 28 30 63 93 45 11.40 38

39 330 315.66 28 30 63 93 45 11.90 39

40 338 323.74 28 30 75 107 50 12.40 40

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d			Hub		Weight (kg)	Material	Teeth
Type	Teeth	Outside Dia. Do	Pitch Dia. Dp	Stock Bore	Min.	Max.	BD	BL	Weight (kg)	Material	Teeth
SUS80B	10	93	82.19	16	18	32	52	40	1.02	Stainless Steel SUS304	10
	11	102	90.15	16	18	38	60	40	1.25		11
	12	110	98.14	19	21	45	67	40	1.60		12
	13	118	106.14	19	21	51	77	40	1.90		13
	14	127	114.15	19	21	51	77	40	2.15		14
	15	135	122.17	19	21	63	93	40	2.30		15
	16	143	130.20	19	21	63	93	40	2.50		16
	17	151	138.23	19	21	63	93	40	2.95		17
	18	159	146.27	19	21	63	93	40	3.15		18
	19	167	154.32	19	21	63	93	40	3.40		19
	20	176	162.37	19	21	63	93	40	3.60		20
	21	184	170.42	19	21	63	93	40	3.85		21
	22	192	178.48	22	24	63	93	45	5.00	Stainless Steel SUS304 Welded Hub	22
	23	200	186.54	22	24	63	93	45	5.23		23
	24	208	194.60	22	24	63	93	45	5.50		24
	25	216	202.66	22	24	63	93	45	5.80		25
	26	224	210.72	28	30	63	93	45	6.10		26
	27	233	218.79	28	30	63	93	45	6.40		27
	28	241	226.86	28	30	63	93	45	6.75		28
	29	249	234.93	28	30	63	93	45	7.10		29
	30	257	243.00	28	30	63	93	45	7.40		30
	31	265	251.07	28	30	63	93	45	7.80		31
	32	273	259.14	28	30.5	63	93	45	8.15		32
	33	281	267.21	28	30	63	93	45	8.50		33
	34	289	275.29	28	30	63	93	45	8.90		34
	35	297	283.36	28	30	63	93	45	9.30		35
	36	306	291.43	28	30	63	93	45	10.60		36
	37	314	299.51	28	30	63	93	45	11.00		37
	38	322	307.58	28	30	63	93	45	11.40		38
	39	330	315.66	28	30	63	93	45	11.90		39
	40	338	323.74	28	30	75	107	50	12.40		40
