Product Item:HXPT-163

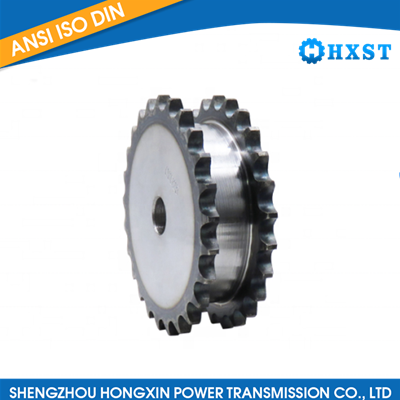

Model:NK 100DSA-2 Double Platewheels For 2 Single Chain
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| Tooth Width (T) | 0.692 |
|
No. Teeth |
Diameters | Bore Dia. d | Dimensions |
Weight Lbs. (App) |
||||
|
Outside Diameter Do |
Pitch Diameter Dp |
Min. | Max. | BL | C | BD | ||
| 13 | 5.820 | 5.223 | 1 | 2 1/2 | 2 11/16 | 2 | 3 25/32 | 11.2 |
| 14 | 6.230 | 5.617 | 1 1/4 | 2 3/4 | 2 11/16 | 2 | 4 3/16 | 13.5 |
| 15 | 6.630 | 6.012 | 1 1/4 | 3 1/16 | 2 11/16 | 2 | 4 19/32 | 16.8 |
| 16 | 7.030 | 6.407 | 1 1/4 | 3 1/4 | 2 11/16 | 2 | 4 1/2 | 19.3 |
| 17 | 7.440 | 6.803 | 1 1/4 | 3 5/8 | 2 11/16 | 2 | 4 29/32 | 21.5 |
| 18 | 7.840 | 7.198 | 1 1/4 | 3 3/4 | 2 11/16 | 2 | 5 9/32 | 23.0 |
| 19 | 8.240 | 7.595 | 1 1/4 | 4 3/16 | 2 11/16 | 2 | 6 13/64 | 25.0 |
| 20 | 8.640 | 7.991 | 1 1/4 | 4 13/16 | 2 11/16 | 2 | 6 39/64 | 26.5 |
| 21 | 9.040 | 8.387 | 1 1/4 | 5 1/4 | 2 11/16 | 2 | 7 | 29.0 |
