HTP 14M-55 Taper Bore Timing Pulley
  1. HTP 14M-55 Taper Bore Timing Pulley

HTP 14M-55 Taper Bore Timing Pulley

Product Item:HXST-279

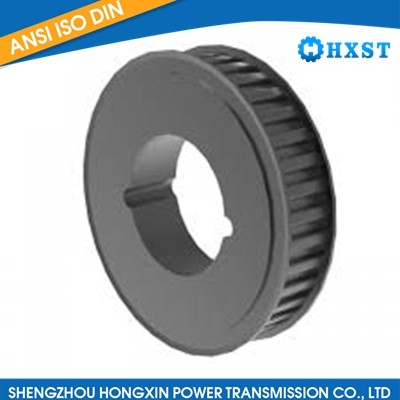

Model:HTP 14M-55 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 14M-55 Taper Bore Timing Pulley , 14mm bore v belt pulley , htd 14m pulley , htd timing pulleys , taper lock timing belt pulley
Send InquiryLive chat

Description

The HTP 14M-55 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "14M-55" indicates the pitch size and belt length. In this case, it refers to a 14mm pitch size and a belt length of 55 teeth.
Taper Bore: Like the previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 14M-55 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.


14M
PITCH - 14 mm
FOR BELT WIDTH - 55 mm

Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 28 14M 55 18F St 28 2012 50 124,78 122,12 127 94 70 32 19 400
TL 30 14M 55 18F St 30 2517 60 133,69 130,99 138 100 70 45 12,5 401
TL 32 14M 55 18F St 32 2517 60 142,60 139,88 154 108 70 45 12,5 403
TL 34 14M 55 18F St 34 2517 60 151,52 148,79 160 110 70 45 12,5 404
TL 36 14M 55 18F St 36 2517 60 160,43 157,68 168 120 70 45 12,5 405
TL 38 14M 55 18F St 38 2517 60 169,34 166,60 183 130 70 45 12,5 406
TL 40 14M 55 18F St 40 2517 60 178,25 175,49 188 138 70 45 12,5 407
TL 44 14M 55 18F St 44 3020 75 196,08 193,28 211 155 70 51 9,5 411
TL 48 14M 55 18F St 48 3020 75 213,90 211,11 226 170 70 51 9,5 412
TL 56 14M 55 18F GG 56 3020 75 249,55 246,76 256 208 70 51 9,5 416
TL 64 14M 55 19F GG 64 3020 75 285,21 282,41 296 170 240 70 51 9,5 418
TL 72 14M 55 19 GG 72 3020 75 320,86 318,06 170 280 70 51 9,5
TL 80 14M 55 20 GG 80 3020 75 356,51 353,71 170 315 70 51 9,5
TL 90 14M 55 20 GG 90 3020 75 401.07 398.28 170 360 70 51 9,5
TL 112 14M 55 20 GG 112 3020 75 499.11 496.32 170 457 70 51 9,5
TL 144 14M 55 20 GG 144 3020 75 641.71 638.92 170 600 70 51 9,5
TL 168 14M 55 20 GG 168 3020 75 748.66 745.87 170 706 70 51 9,5
TL 192 14M 55 20 GG 192 3020 75 855.62 852.82 170 813 70 51 9,5
