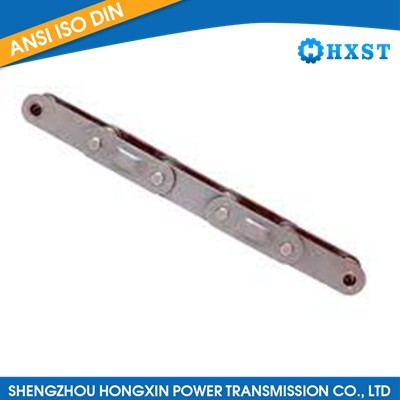

CA Type Steel Agricultural Chain
  1. CA Type Steel Agricultural Chain

CA Type Steel Agricultural Chain

Product Item:HXPT-310

Model: CA Type Steel Agricultural Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

CA Type Steel Agricultural Chain
Send Inquiry Live chat

Description

CA type steel Agricultural Chain

CA type steel agricultural chain is one of the agricultural chain.It is strictly built according to ISO487. These chains are typically applied in combine harvesters, round balers, feed wagon lifts, etc. Attachments are also available (A1, ATT, C5E, C6E, C11E, C13E, C17E, C30E, CPE, A19, F14,F4,K1,K19,K25,K27,).
The main specification includes:CA550,CA555,CA557,CA620,CA2050H,CA2063H.

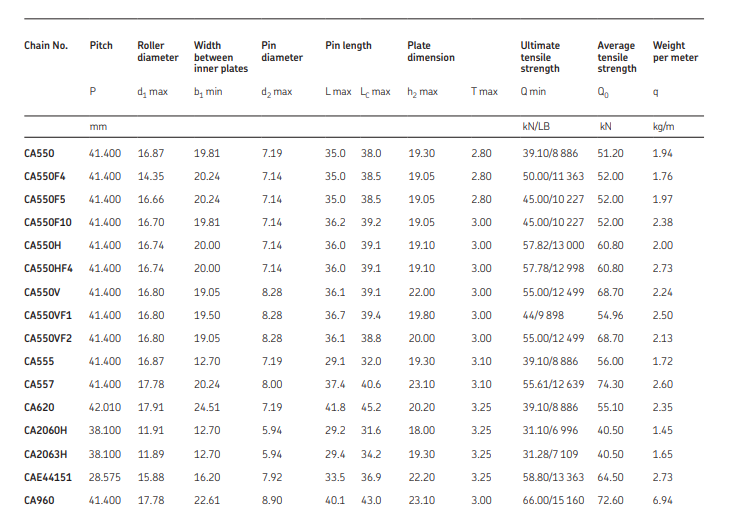

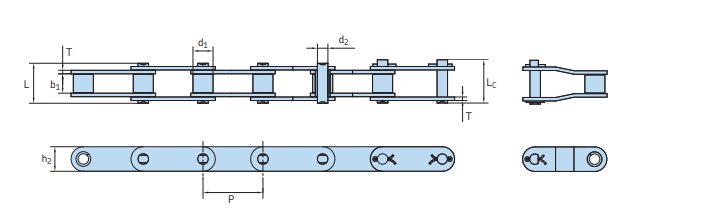

CA type steel agricultural chain

Chain  no. Pitch
P
mm
Roller
Diameter
D1
Max
mm
Width
Between
Inner plates
B1
Mm
Pin
Diameter
D2
Max
Mm
Pin
Length
Plate
Diamension
Ultimate
Tensile
Strength
Q
MIN
KN/LB
Average
Tensile
Strength
KN
Weight
Per
Meter
Km/m
h
L
Max
mm
h
Lc
Max
mm

H2
Max
Mm

H2
Max
mm

CA550 41.40 16.87 19.81 7.19 35.0 38.0 19.3 2.80 39.10/8886 51.2 1.94
CA555 41.40 16.87 12.70 7.19 29.1 32.0 19.3 3.1 39.10/8886 56.0 1.72
CA557 41.40 17.78 20.24 8.00 37.4 40.6 23.1 3.10 55.61/12639 74.3 2.60
CA620 42.01 17.91 24.51 7.19 41.8 45.2 20.2 3.25 39.10/8886 55.1 2.35
CA2050H 38.10 11.91 12.70 5.94 29.2 31.6 18.00 3.25 31.10/6996 40.5 1.45
CA2063H 38.10 11.89 12.70 5.94 29.2 34.2 19.30 3.25 31.28/7109 40.5 1.65
