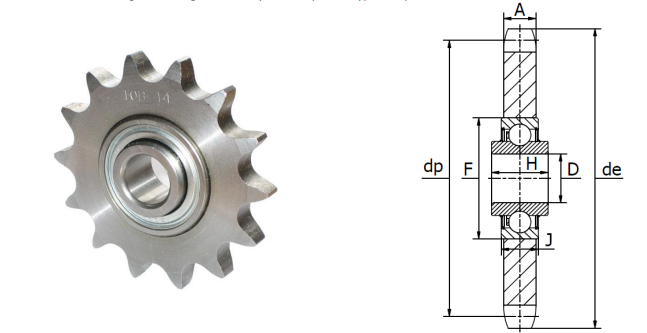

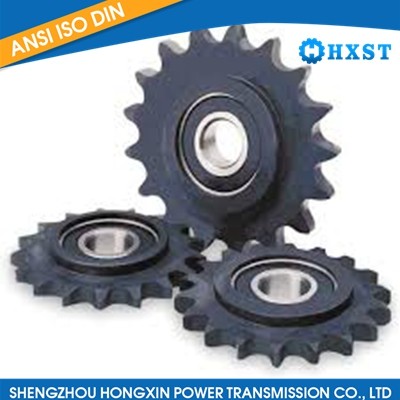

Ball Bearing Idler Sprocket
  1. Ball Bearing Idler Sprocket

Ball Bearing Idler Sprocket

Product Item:HXST-059

Model: Ball Bearing Idler Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

ball bearing idler sprocket , what is an idler bearing , idler sprocket shaft , idler sprockets with bearings , 50 idler sprocket , idler sprocket assembly
Send InquiryLive chat

Description

ball bearing idler sprocket is a type of sprocket that incorporates ball bearings into its design. This allows for smoother rotation and reduced friction when the sprocket is used as an idler or tensioner in a power transmission system.

The ball bearings within the idler sprocket enable it to rotate freely while supporting the tension or guidance of a chain or belt. This helps to reduce wear on the chain and other components, improve overall efficiency, and prolong the lifespan of the system.

Ball bearing idler sprockets are commonly used in applications where maintaining proper tension, alignment, and smooth operation of the chain or belt is crucial. Typical applications include conveyors, material handling equipment, agricultural machinery, and various industrial systems.

When selecting a ball bearing idler sprocket, it is important to consider factors such as pitch size, bore size, number of teeth, and overall design to ensure compatibility with the specific chain or belt being used in the application.
