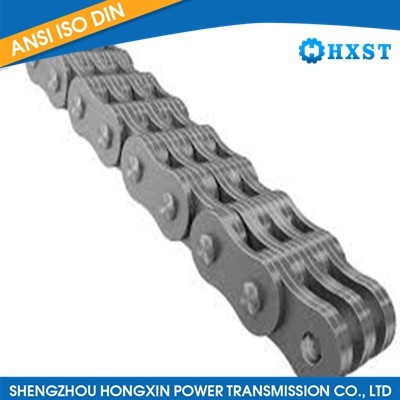

AL Leaf Chain

Product Item:HXPT-306

Model: AL Leaf Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

AL Leaf Chain

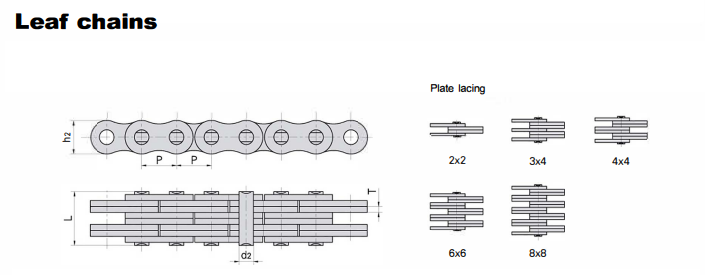

CHAIN NO.
Lacing Pitch
P Plate Pin verage
Ultimate
Strength
kgf
Approx Weight
kg/m

Height Hole Thickness Dia Lengths

inch mm H E(min) T D L

AL422 2 x 2 1/2" 12.70 10.20 4.00 1.50 3.96 8.05 1800 0.36

AL444 4 x 4 14.35 3600 0.71

AL466 6 x 6 20.70 5400 1.22

AL522 2 x 2 5/8" 15.875 13.00 5.12 2.00 5.06 10.60 3100 0.63

AL523 2 x 3 12.70 3100 0.78

AL544 4 x 4 19.00 6200 1.23

AL566 6 x 6 27.40 9300 2.10

AL588 8 x 8 35.85 12400 2.46

AL622 2 x 2 3/4" 19.05 15.50 5.98 2.35 5.95 12.40 4400 0.90

AL623 2 x 3 14.85 4400 1.12

AL644 4 x 4 22.30 8800 1.78

AL646 4 x 6 27.30 8800 2.25

AL666 6 x 6 32.25 13200 3.03

AL688 8 x 8 42.20 17600 3.6

AL822 2 x 2 1" 25.40 20.40 7.96 3.10 7.94 16.15 7600 1.48

AL844 4 x 4 29.50 15200 2.92

AL866 6 x 6 42.35 22800 4.97

AL888 8 x 8 55.90 30400 5.78

AL1022 2 x 2 1-1/4" 31.75 24.80 9.56 3.90 9.52 21.11 11500 2.35

AL1044 4 x 4 37.67 23000 4.61

AL1066 6 x 6 54.23 34500 7.88

AL1088 8 x 8 70.79 46000 9.23

AL1222 2 x 2 1-1/2" 38.10 30.00 11.14 4.70 11.10 24.60 15000 3.4

AL1244 4 x 4 44.20 31000 6.65

AL1266 6 x 6 63.80 46500 10.14

AL1444 4 x 4 1-3/4" 44.45 36.20 12.74 5.60 12.70 52.30 41000 10.34

AL1466 6 x 6 75.60 62000 15.16

AL1644 4 x 4 2" 50.80 41.40 14.31 6.40 14.28 59.55 54000 12.98

AL1666 6 x 6 86.15 81000 19.41

AL1688 8 x 8 112.75 108000 25.84

CHAIN NO.	Lacing	Pitch P		Plate			Pin		verage Ultimate Strength kgf	Approx Weight kg/m
		Pitch P		Height	Hole	Thickness	Dia	Lengths
		inch	mm	H	E(min)	T	D	L
AL422	2 x 2	1/2"	12.70	10.20	4.00	1.50	3.96	8.05	1800	0.36
AL444	4 x 4							14.35	3600	0.71
AL466	6 x 6							20.70	5400	1.22
AL522	2 x 2	5/8"	15.875	13.00	5.12	2.00	5.06	10.60	3100	0.63
AL523	2 x 3							12.70	3100	0.78
AL544	4 x 4							19.00	6200	1.23
AL566	6 x 6							27.40	9300	2.10
AL588	8 x 8							35.85	12400	2.46
AL622	2 x 2	3/4"	19.05	15.50	5.98	2.35	5.95	12.40	4400	0.90
AL623	2 x 3							14.85	4400	1.12
AL644	4 x 4							22.30	8800	1.78
AL646	4 x 6							27.30	8800	2.25
AL666	6 x 6							32.25	13200	3.03
AL688	8 x 8							42.20	17600	3.6
AL822	2 x 2	1"	25.40	20.40	7.96	3.10	7.94	16.15	7600	1.48
AL844	4 x 4							29.50	15200	2.92
AL866	6 x 6							42.35	22800	4.97
AL888	8 x 8							55.90	30400	5.78
AL1022	2 x 2	1-1/4"	31.75	24.80	9.56	3.90	9.52	21.11	11500	2.35
AL1044	4 x 4							37.67	23000	4.61
AL1066	6 x 6							54.23	34500	7.88
AL1088	8 x 8							70.79	46000	9.23
AL1222	2 x 2	1-1/2"	38.10	30.00	11.14	4.70	11.10	24.60	15000	3.4
AL1244	4 x 4							44.20	31000	6.65
AL1266	6 x 6							63.80	46500	10.14
AL1444	4 x 4	1-3/4"	44.45	36.20	12.74	5.60	12.70	52.30	41000	10.34
AL1466	6 x 6							75.60	62000	15.16
AL1644	4 x 4	2"	50.80	41.40	14.31	6.40	14.28	59.55	54000	12.98
AL1666	6 x 6							86.15	81000	19.41
AL1688	8 x 8							112.75	108000	25.84
