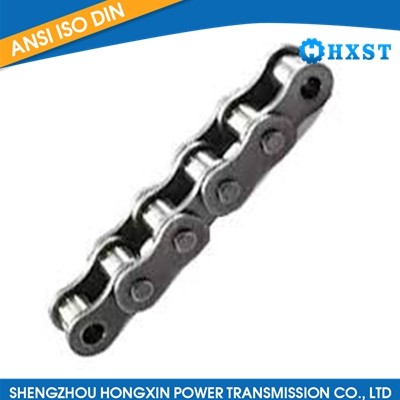

A Type Steel Agricultural Chain
  1. A Type Steel Agricultural Chain

A Type Steel Agricultural Chain

Product Item:HXST-311

Model: A Type Steel Agricultural Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

A Type Steel Agricultural Chain , agricultural chain types , agricultural chains and sprockets
Send InquiryLive chat

Description

A type steel Agricultural Chain


A type steel agricultural chain is one type of agricultural chain. The chains are made of premium steel alloy, manufactured and assembled by automatic machines, advanced heat-treatment and surface consolidating techniques.The main specification includes:A550,A555,A557,A620 etc.

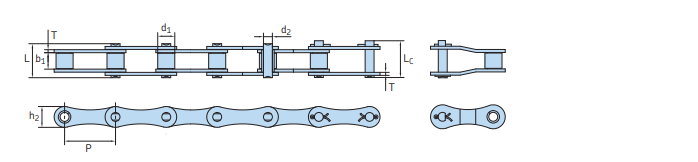

Chain  no. Pitch Roller
Diameter
Width
Between
Inner plate
Pin
Diameter
Pin
Length
Plate
Diamension
Ultimate
Tensile
Strength
Average
Tensile
Strength
Weight
Per
Meter
p D1
Max
B1
min
D2
Max
L
Max
Lc
Max
H2
Max
T
Max
Q
Min
q
mm mm Mm Mm mm mm Mm mm KN/LB KN Km/m
A550 41.40 16.87 19.81 7.19 35.0 38.0 19.3 2.80 39.10/8886 51.2 1.79
A555 41.40 16.87 12.70 7.19 29.1 32.0 19.3 3.1 39.10/8886 56.0 1.60
A557 41.40 17.78 20.24 8.00 37.4 40.6 23.1 3.10 55.61/12639 74.3 2.45
A620 42.01 17.91 24.51 7.19 41.8 45.2 20.2 3.25 39.10/8886 55.1 2.18
