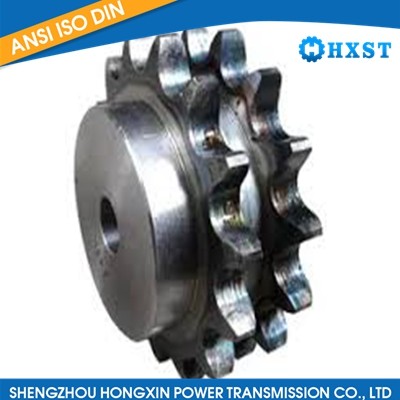

60B-2 ASA Duplex Sprocket
  1. 60B-2 ASA Duplex Sprocket

60B-2 ASA Duplex Sprocket

Product Item:HXPT-034

Model: 60B-2 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

ASA Sprocket，60B-2
Send Inquiry Live chat

Description

Duplex-sprockets ASA60-2

  • ISO-No.: ASA60-2 = 12A-2 (3/4“ x 1/2“)
  • pitch: 19,05 mm
  • inner width: 12,70 mm
  • Roller-dia.: 11,91 mm
  • tooth width bf2: 34,6 mm
  • ba 2,4 mm (radius width)
  • rx 20 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
z do dk dn d1 d2 L kg
Material steel/C45
10 61,6 69 42 12 26 45 0,59
11 67,6 75 47 16 29 50 0,81
12 73,6 82 53 16 32 50 1,02
13 79,6 88 59 16 36 50 1,25
14 85,6 94 65 16 40 50 1,46
15 91,6 100 71 16 44 50 1,74
16 97,6 105 77 20 48 50 2,03
17 103,7 112 83 20 51 50 2,36
18 109,7 118 89 20 56 50 2,70
19 115,7 124 95 20 60 50 3,07
20 121,8 130 100 20 63 50 3,43
21 127,8 136 100 20 63 50 3,69
22 133,9 142 100 20 63 50 3,97
23 139,9 149 110 20 65 50 4,51
24 145,9 154 110 20 65 50 4,81
25 152,0 160 120 20 76 50 5,41
26 158,0 166 120 20 76 50 5,73
27 164,1 173 120 20 76 50 6,08
28 170,1 178 120 20 76 50 6,43
29 176,2 184 120 20 76 50 6,80
30 182,3 191 120 20 76 50 7,19
