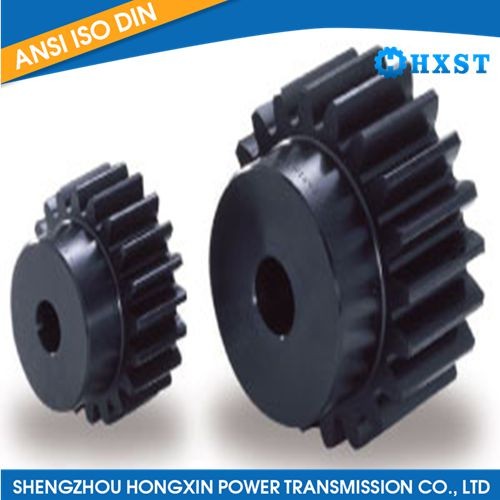

3DP 14½°Pressure Angle Steel Spur Gear

Product Item:HXST-1000

Model: 3DP 14½°Pressure Angle Steel Spur Gear

Diametral Pitch (DP): The 3DP specification indicates the number of teeth per inch of gear diameter. It represents the size or coarseness of the gear teeth. In this case, there are 3 teeth for every

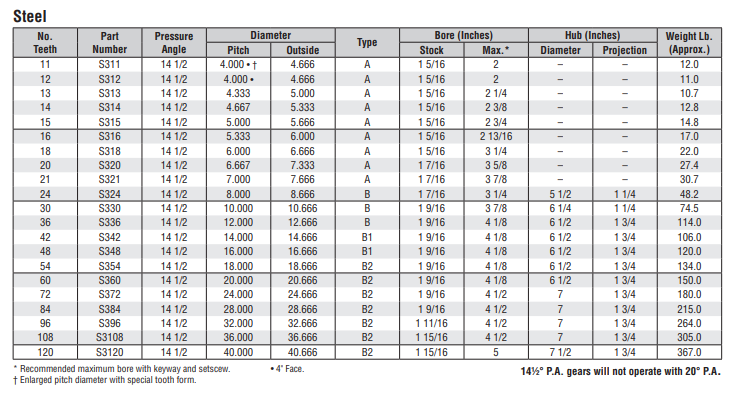

Size Range: 3DP 14½° Pressure Angle Steel Spur Gears are available in a range of sizes, allowing for flexibility in gear selection based on the specific application requirements. The sizes typically

Application Versatility: These gears find application in a wide range of industries, including automotive, aerospace, robotics, industrial machinery, and more. They are used for power transmission,

Description

3DP 14½° Pressure Angle Steel Spur Gear is a specific type of gear commonly used in mechanical systems. Let's break down what each term means:

"3DP" refers to the diametral pitch, which represents the number of teeth per inch of the gear's pitch diameter. In this case, the gear has a diametral pitch of 3, meaning there are 3 teeth for every inch of its pitch diameter.

"14½° Pressure Angle" describes the angle at which the gear teeth are oriented. The pressure angle affects factors like load distribution and tooth strength. In this case, the gears have a pressure angle of 14½ degrees.

"Steel" indicates that the gears are made from steel material. Steel is chosen for its strength, durability, and resistance to wear and corrosion, making it suitable for various gear applications.

"Spur Gears" are cylindrical gears with teeth that run parallel to the gear's axis. They are designed to transmit motion and power between parallel shafts.

In summary, a 3DP 14½° Pressure Angle Steel Spur Gear is designed for mechanical systems that require precise motion transmission and durability. With a relatively coarse diametral pitch and a specific pressure angle, these gears provide efficient power transfer and reliable performance. The use of steel material ensures strength and longevity, making them suitable for various industrial applications.
