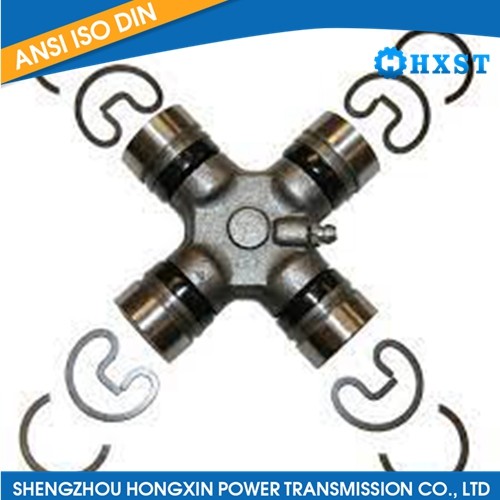

Threaded Cap (THDCAP) Style  Universal Joint
  1. Threaded Cap (THDCAP) Style  Universal Joint

Threaded Cap (THDCAP) Style Universal Joint

Product Item:HXST-1806

Model: Threaded Cap (THDCAP) Style Universal Joint

Material: It is typically made from durable materials such as steel or alloy steel to withstand high torque and provide long-lasting performance.

Installation: THDCAP universal joints should be designed for easy installation and secure attachment to the shafts using appropriate fasteners or locking mechanisms compatible with the threaded connec

Application: Threaded Cap style universal joints may find specific applications where threaded connections are preferred or necessary, such as precision equipment, specialized machinery, or unique mec

Threaded Cap (THDCAP) Style Universal Joint
Send InquiryLive chat

Description

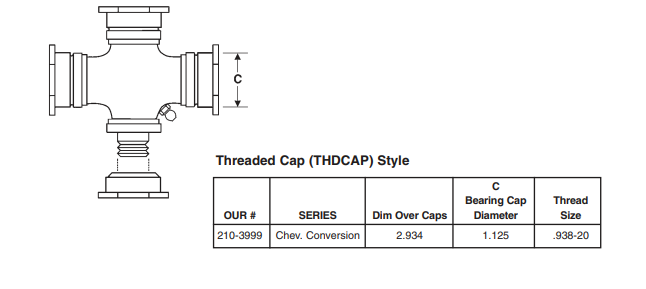

Threaded Cap (THDCAP) style universal joint is a specialized type of universal joint used to transmit rotary motion between two shafts that are not aligned with each other. It is characterized by the presence of threaded caps on each end of the joint.

Here is a description of the THDCAP style universal joint:

Design: The THDCAP style universal joint consists of a center cross or spider connected to two yokes or flanges. Each yoke has a threaded cap at its end.
Material: It is typically made from durable materials such as steel or alloy steel to withstand high torque and provide long-lasting performance.
Size: THDCAP universal joints come in various sizes to accommodate different shaft diameters and lengths.
Load Capacity: The universal joint should have a specified load capacity indicating the maximum amount of torque it can handle without failure.
Misalignment Capability: It is designed to accommodate angular misalignment between the input and output shafts, allowing for flexibility in shaft alignment.
Threaded Connections: The threaded caps enable a strong and reliable connection between the joint and the shafts, ensuring efficient power transmission.
Lubrication: Proper lubrication is crucial for the smooth operation and longevity of the universal joint. Some joints may require periodic greasing or have sealed lubrication systems.
Installation: THDCAP universal joints should be designed for easy installation and secure attachment to the shafts using appropriate fasteners or locking mechanisms compatible with the threaded connections.
Application: Threaded Cap style universal joints may find specific applications where threaded connections are preferred or necessary, such as precision equipment, specialized machinery, or unique mechanical systems.
Please note that specific product attributes and availability may vary depending on the manufacturer and intended application. Therefore, it's recommended to refer to the product specifications provided by the manufacturer for detailed information on a particular Threaded Cap (THDCAP) style universal joint
