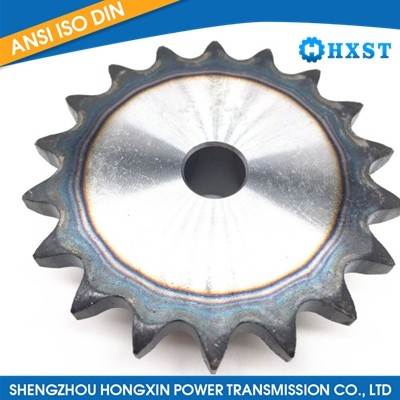

35A-1 Plate Wheel Sprocket
  1. 35A-1 Plate Wheel Sprocket

35A-1 Plate Wheel Sprocket

Product Item:HXPT-127

Model:35A-1 Plate Wheel Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

35A-1 Plate Wheel Sprocket
Send Inquiry Live chat

Description

Product details

Chain Pitch (P) 9.525 mm (3/8 inch)
Inner Width (W) 4.78 mm
Bush Dia. (Dr) 5.08 mm
Tooth Width (T) 4.3 mm
(Dimension : mm)
Sprocket
No.
Outside Dia.
Do
Pitch Dia.
Dp
Bore Dia. d Weight
(kg)
Material Teeth
Type Teeth Stock Bore min.
K35A 10 34 30.82 9 11 0.02 Mild Steel 10
11 38 33.81 9 11 0.03 11
12 41 36.80 9 11 0.03 12
13 44 39.80 9 11 0.04 13
14 47 42.81 9 11 0.04 14
15 51 45.81 9 11 0.05 15
16 54 48.82 9 11 0.05 16
17 57 51.84 11 13 0.07 17
18 60 54.85 11 13 0.07 18
19 63 57.87 11 13 0.09 19
20 66 60.89 11 13 0.09 20
21 69 63.91 11 13 0.11 21
22 72 66.93 11 13 0.11 22
23 75 69.95 11 13 0.11 23
24 78 72.97 11 13 0.14 24
25 81 76.00 11 13 0.16 25
26 84 79.02 11 13 0.16 26
27 87 82.05 11 13 0.17 27
28 90 85.07 11 13 0.18 28
30 96 91.12 11 13 0.23 30
32 102 97.18 11 13 0.27 32
33 105 100.20 11 13 0.28 33
34 109 103.23 11 13 0.29 34
35 112 106.26 11 13 0.30 35
36 115 109.29 12 14 0.32 36
38 121 115.34 12 14 0.37 38
40 127 121.40 12 14 0.40 40
42 133 127.46 16 18 0.43 42
45 142 136.55 16 18 0.49 45
46 145 139.58 16 18 0.51 46
48 151 145.64 16 18 0.55 48
50 157 151.70 16 18 0.60 50
54 169 163.81 16 18 0.70 54
55 172 166.85 16 18 0.71 55
60 187 182.00 16 18 0.80 60
65 203 197.15 16 18 1.02 65
70 218 212.30 16 18 1.18 70
80 248 242.61 16 18 1.50 80
