1M-6M Gear
  1. 1M-6M Gear

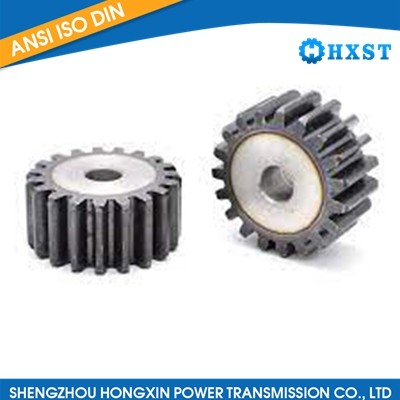

1M-6M Gear

Product Item:HXST-315

Model: 1M-6M Gear

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

1M-6M Gear , 1 inch gear , 3m gear , 4 inch gear , 1/8 gear calculator
Send InquiryLive chat

Description


The terms "1M-6M Gear" refer to gears that are classified based on their module or pitch. Here's some information about 1M-6M gears:

Module: The module (M) is a measurement used in gear design and indicates the size of the gear teeth. It represents the ratio of the pitch diameter to the number of teeth. Module is commonly measured in millimeters (mm).

Gear Types: Gears with different modules can be used in various applications, such as spur gears, helical gears, bevel gears, or worm gears. The specific type of gear will depend on the application requirements, load capacity, desired gear arrangement, and efficiency.

Range: The range mentioned, "1M-6M," indicates a set of gears with modules ranging from 1 millimeter to 6 millimeters. This range covers a variety of gear sizes and applications, allowing for flexibility in designing systems with different torque and speed requirements.

Tooth Profile: The tooth profile of the gear can vary depending on the gear type and manufacturing standards used. Common tooth profiles include involute, cycloidal, or custom-designed profiles.

Material and Construction: Gears can be made from various materials, such as steel, stainless steel, brass, or plastic, depending on factors like load capacity, operating conditions, and cost considerations. They are often manufactured using processes like hobbing, milling, or shaping to create the required tooth geometry.

Compatibility: When selecting gears, it is important to ensure compatibility between mating gears in terms of module, tooth profile, pressure angle, and other specifications to ensure proper meshing and efficient power transmission.
