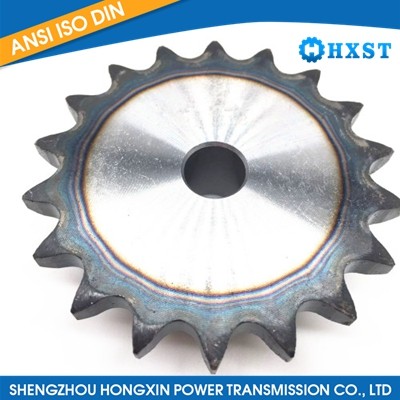

120A-1 Plate Wheel Sprocket
  1. 120A-1 Plate Wheel Sprocket

120A-1 Plate Wheel Sprocket

Product Item:HXST-133

Model:120A-1 Plate Wheel Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

120A-1 Plate Wheel Sprocket , 120 sprocket dimensions , 120 chain sprockets , plate sprockets
Send InquiryLive chat

Description

120A-1 plate wheel sprocket is a specific type of sprocket that features a plate wheel design. Here are some key features of the 120A-1 plate wheel sprocket:

Plate Wheel Design: The "plate wheel" designation indicates that the sprocket has a design where the teeth are formed directly on a flat plate. This design allows for easy attachment to various equipment or machinery.

120A-1 Designation: The "120A-1" designation specifies the specific model or part number for the plate wheel sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 120A-1 plate wheel sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Plate wheel sprockets like the 120A-1 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Plate wheel sprockets are commonly used in power transmission systems where precise positioning or easy mounting is required. The 120A-1 plate wheel sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.


Product details

Chain Pitch (P) 38.10 mm (1-1/2 inch)
Inner Width (W) 25.40 mm
Bush Dia. (Dr) 22.23 mm
Tooth Width (T) 23.5 mm
(Dimension : mm)
Sprocket No. Outside Dia.
Do 		Pitch Dia.
Dp 		Bore Dia. d Weight
(kg) 		Material Teeth
Type Teeth Stock Bore Min.
K120A 10 140 123.29 20 22 2.16 Mild Steel 10
11 153 135.24 20 22 2.60 11
12 165 147.21 20 22 3.10 12
13 177 159.20 20 22 3.60 13
14 190 171.22 20 22 4.20 14
15 202 183.25 20 22 4.80 15
16 214 195.29 20 22 5.50 16
17 227 207.35 20 22 6.20 17
18 239 219.41 20 22 6.95 18
19 251 231.48 20 22 7.70 19
20 263 243.55 20 22 8.55 20
21 276 255.63 20 22 9.40 21
22 288 267.72 26 28 10.30 22
23 300 279.80 26 28 11.30 23
24 312 291.90 26 28 12.30 24
25 324 303.99 26 28 13.30 25
26 337 316.09 26 28 14.40 26
27 349 328.19 26 28 15.50 27
28 361 340.29 26 28 16.70 28
29 373 352.39 26 28 17.80 29
30 385 364.50 26 28 19.20 30
31 398 376.60 26 28 20.40 31
32 410 388.71 26 28 21.80 32
33 422 400.82 26 28 23.20 33
34 434 412.93 26 28 24.60 34
35 446 425.04 26 28 26.10 35
36 458 437.15 26 28 27.60 36
38 483 461.38 26 28 30.80 38
40 507 485.60 26 28 34.10 40
42 531 509.84 26 28 37.60 42
44 556 534.07 26 28 41.20 44
45 568 546.19 26 28 43.10 45
46 580 558.30 26 28 45.10 46
48 604 582.54 26 28 49.00 48
50 628 606.78 26 28 53.30 50
54 677 655.26 26 28 62.10 54
60 750 727.99 26 28 76.70 60
70 871 849.22 26 28 104.30 70
75 932 909.84 26 28 119.80 75
80 993 970.46 26 28 136.30 80
