Product Item:HXST-054

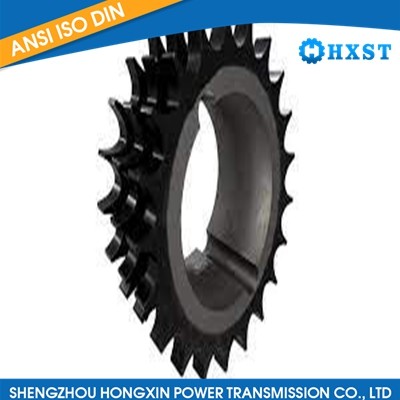

Model: 06B-3 Triplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub-dia. |
for |
total |
weight |
|
Ø |
Ø |
Ø |
bush |
length |
approx |
|
|
d0 |
dk |
dn |
L |
kg |
||
|
17 |
51,83 |
55,3 |
– |
1008 |
25,60 |
0,20 |
|
19 |
57,87 |
61,3 |
– |
1008 |
25,60 |
0,23 |
|
21 |
63,91 |
68,0 |
– |
1008 |
25,60 |
0,34 |
|
23 |
69,95 |
73,5 |
– |
1210 |
25,60 |
0,38 |
|
25 |
76,02 |
80 |
– |
1210 |
25,60 |
0,41 |
|
27 |
82,02 |
86,0 |
– |
1210 |
25,60 |
0,60 |
|
30 |
91,12 |
94,7 |
79 |
1615 |
38,00 |
1,00 |
|
38 |
115,35 |
119,5 |
90 |
1615 |
38,00 |
1,40 |
