06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain
  1. 06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain

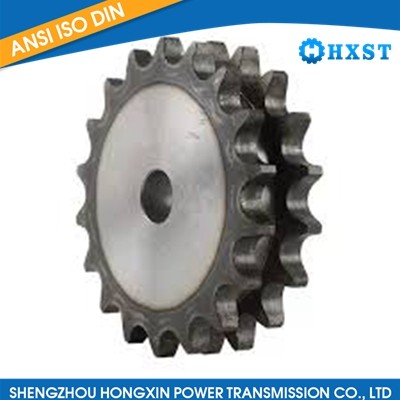

06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain

Product Item:HXST-061

Model: 06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

06A-2 08A-2 10A-2 12A-2 16A-2 Double Platewheels For 2 Single Chain
Send InquiryLive chat

Description

Double platewheels for 2 single chains, such as the 06A-2, 08A-2, 10A-2, 12A-2, and 16A-2, are sprockets designed to accommodate two separate single chains. The "A" in the designation refers to the chain size or pitch size.

These double platewheels have two sets of teeth, allowing them to engage with two individual single chains simultaneously. This configuration is useful in certain applications where the power transmission requires the use of two separate chains operating in parallel or when increased load carrying capacity is needed.

The specific numbers (06A-2, 08A-2, 10A-2, 12A-2, 16A-2) represent different pitch sizes and correspond to the appropriate chain size. It is important to select the correct double platewheel size that matches the chain size to ensure proper fit, alignment, and efficient power transmission.

These double platewheels are commonly used in applications such as conveyors, machinery, and equipment where dual chain drives are required for synchronization, increased load capacity, or redundancy.

It's worth noting that if you are looking for specific stainless steel double platewheels for two single chains, it's recommended to check with suppliers or manufacturers specializing in stainless steel sprockets to ensure the availability of the desired material.

double platewheels for 2 single chains


Article no. of teeth tip circle pitch circle tooth width total width pilot bore
no.
z Dk D0 B1 B2 d1
1/2″ x 5/16″
DKS-08B-12/12 12 53,0 49,07 7 28 15
DKS-08B-13/13 13 57,0 53,06 7 28 15
DKS-08B-14/14 14 61,5 57,07 7 28 15
DKS-08B-15/15 15 65,5 61,09 7 28 15
DKS-08B-16/16 16 69,5 65,10 7 28 15
DKS-08B-17/17 17 73,5 69,11 7 28 15
DKS-08B-18/18 18 77,5 73,14 7 28 15
DKS-08B-19/19 19 81,5 77,16 7 28 15
DKS-08B-20/20 20 85,5 81,19 7 28 15
DKS-08B-21/21 21 89,5 85,22 7 28 15
5/8″ x 3/8″
DKS-10B-12/12 12 67,0 61,34 9 36 20
DKS-10B-13/13 13 72,0 66,32 9 36 20
DKS-10B-14/14 14 77,0 71,34 9 36 20
DKS-10B-15/15 15 83,0 76,36 9 36 20
DKS-10B-16/16 16 88,0 81,37 9 36 20
DKS-10B-17/17 17 93,0 86,39 9 36 20
DKS-10B-18/18 18 98,0 91,42 9 36 20
DKS-10B-19/19 19 103,0 96,45 9 36 20
3/4″ x 7/16″
DKS-12B-12/12 12 80,5 73,61 10,8 38 20
DKS-12B-13/13 13 86,5 79,59 10,8 38 20
DKS-12B-14/14 14 92,5 85,61 10,8 38 20
DKS-12B-15/15 15 99,0 91,63 10,8 38 20
DKS-12B-16/16 16 104,5 97,65 10,8 38 20
DKS-12B-17/17 17 111,5 103,67 10,8 38 20
DKS-12B-18/18 18 117,5 109,71 10,8 38 20
DKS-12B-19/19 19 123,0 115,75 10,8 38 20
1″ x 17,02 mm
DKS-16B-12/12 12 107,0 98,14 15,8 55 25
DKS-16B-13/13 13 116,0 106,12 15,8 55 25
DKS-16B-14/14 14 123,0 114,15 15,8 55 25
DKS-16B-15/15 15 132,0 122,17 15,8 55 25
DKS-16B-16/16 16 140,0 130,20 15,8 55 25
DKS-16B-17/17 17 148,0 138,22 15,8 55 25
