Straight Link Plate Chain
  1. Straight Link Plate Chain

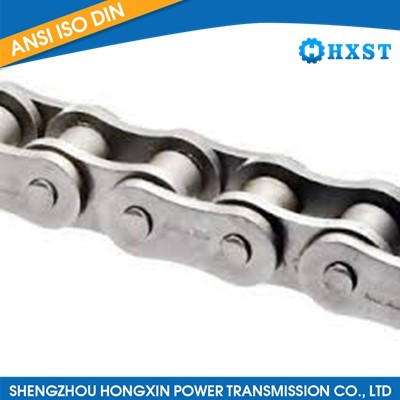

Straight Link Plate Chain

Product Item:HXPT-288

Model:Straight Link Plate Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

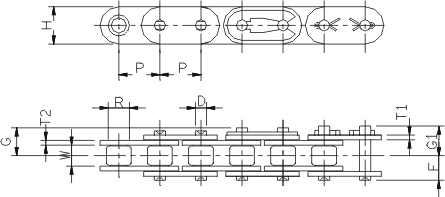

Straight Link Plate Chain
Send Inquiry Live chat

Description

Straight link plate chain

Straight plate chain is also reffered as straight link plate chain.Its only different from the common roller chain is on the plate. Straight plate chain’s plate is straight.In the follow form,we have listed the main specification:C40-C100,C06B-C24B.And we also can produce the straight plate chain according to the customers’request.

Straight link plate chain

CHAIN NO.
(ANSI)
Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D F G G1
C40 1/2" 12.70 7.94 7.92 12.00 1.50 1.50 3.96 8.20 9.35 10.1 1850 0.65
C50 5/8" 15.875 9.53 10.16 15.00 2.00 2.00 5.06 10.10 11.65 12.6 3100 1.03
C60 3/4" 19.05 12.70 11.91 18.10 2.40 2.40 5.95 12.50 14.15 15.4 4400 1.46
C80 1" 25.40 15.88 15.88 24.00 3.10 3.10 7.94 16.10 --- 18.80 7800 2.44
C100 1-1/4" 31.75 19.05 19.05 28.90 3.90 3.90 9.52 20.10 --- 23.10 11800 4.31

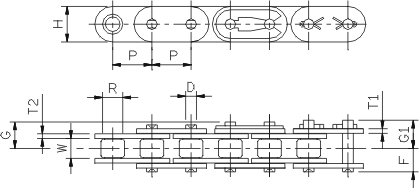

Straight link plate chain

CHAIN NO. Pitch x Width Width Roller Plate Pin Average
Ultimate
Strength
kgf
Approx Weight
kg/m
P x W W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D F G G1
C06B 0.375" 9.525 5.72 6.35 8.10 1.00 1.25 3.28 6.10 7.40 --- 1050 0.39
C08B 0.5" 12.70 7.75 8.51 11.80 1.50 1.50 4.44 8.20 9.50 --- 1930 0.75
C10B 0.625" 15.875 9.65 10.16 14.60 1.65 1.65 5.06 9.60 11.10 --- 2700 1.00
C12B 0.75" 19.05 11.68 12.07 16.00 1.80 1.80 5.72 11.10 12.60 --- 3400 1.29
C16B 1" 25.40 17.02 15.88 21.00 3.20 4.00 8.27 17.70 19.25 20.20 8000 2.70
C20B 1.25" 31.75 19.56 19.05 26.00 3.50 4.40 10.18 20.50 --- 23.50 12000 4.25
C24B 1.5" 38.10 25.40 25.40 33.00 5.20 6.00 14.62 26.65 --- 32.35 18000 8.20
