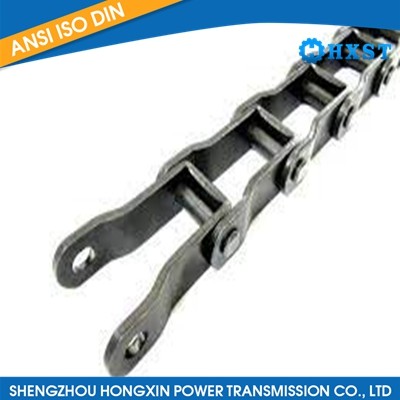

Steel Pintle Chain
  1. Steel Pintle Chain

Steel Pintle Chain

Product Item:HXPT-304

Model: Steel Pintle Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Steel Pintle Chain
Send Inquiry Live chat

Description

Steel pintle chain

Steel pintle chain is recommended as Conveyor Chain for a wide range of applications such as spreaders, feeder systems, hay handling equipment and spray box, and in limited use, as power transmission chain. These chains can be applied in the smudgy environment.The main specification includes 662,667H,667X,667HX,667K,667J,88K,88C. And a wide selection of attachments for steel pintle chains are also available to meet specific working purposes.

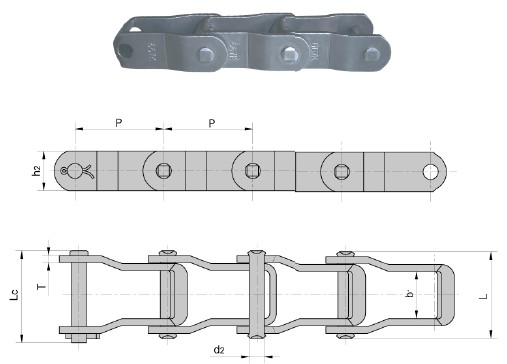

Steel pintle chain

Chain  no. Pitch Width
Between
Inner plate
Pin
Diameter
Pin
Length
Plate
depth
Plate
thickness
Ultimate
Tensile
Strength
Average
Tensile
Strength
Weight
Per
Meter
p B1
min
D2
Max
L
Max
Lc
Max
H2
Max
T Q
Min
Q0 q
mm Mm Mm mm mm mm mm   KN/LB KN Km/m
662 42.27 22.9 7.19 41.2 44.2 18.8 3.2 37.80/8591 41.5 1.63
667H 58.75 25.4 7.94 43.7 46.7 22.2 3.2 42.30/9614 46.5 1.87
667X 57.15 26.6 11.10 50.2 55.0 23.8 4.3 66.70/15159 73.3 2.98
667XH 57.15 27.4 11.91 58.0 62.0 27.3 5.7 124.50/28295 136.9 4.34
667K 57.15 27.4 11.10 55.5 60.0 27.3 5.1 89.00/20227 97.9 3.91
667J 57.15 26.6 9.53 50.2 55.0 27.3 4.3 62.28/14155 68.5 2.81
88K 66.27 27.4 11.10 55.5 60.0 27.3 5.1 89.00/20227 97.9 3.73
88C 66.27 31.4 12.70 64.6 69.0 28.9 6.4 133.36/30309 146.6 5.17
