Silent Chain
  1. Silent Chain

Silent Chain

Product Item:HXPT-301

Model: Silent Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Silent Chain
Send Inquiry Live chat

Description

Silent chain

Silent chain (or inverted tooth chain)is made of select alloy steel, and have been undergone strict heat treatment and pre-lubed with special formulated chain oil. With features of lightweight, no noise, best wear resistance and high tensile strength.Our silent chain has been exported to Japanese motorcycle manufacturers. The average life expectance of the inverted tooth chain is more than 30,000 kilometers, or even longer.

Silent chain

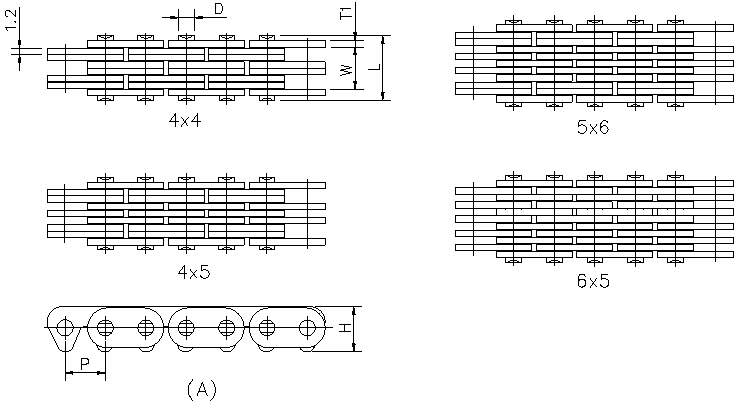

 CHAIN NO. TYPE Locing Pitch Width Pin Plate Average
 Ultimate
Strength
kgf
P W D L H T1 T2
C700 A 4 x 4 7.62 7.85 3.00 11.6 8.96 1.03 1.28 1429
26289/
26290/
776968
A 4 x 4 9.525 9.30 3.78 13.2 9.84 1.03 1.53 1900
C387 A 4 x 4 9.525 9.30 3.78 13.2 9.76 1.03 1.53 1684
C390 A 4 x 4 9.525 9.30 3.78 13.2 9.85 1.03 1.53 1900
C391 A 4 x 4 9.525 9.60 3.78 14.1 9.96 1.60 1.60 1700
C358/C396 A 4 x 5 9.525 10.80 3.92 15.4 9.86 1.33 1.53 1531
C372 A 4 x 5 9.525 10.80 3.35 15.8 9.31 1.53 1.53 1531
C392 A 4 x 5 9.525 10.80 3.78 14.7 11.19 1.03 1.53 1531
C351 A 5 x 6 9.525 13.80 3.35 19.0 9.31 1.53 1.53 1633
C368/C366/
C376/C3077/
C359
A 5 x 6 9.525 13.80 3.92 18.5 9.86 1.33 1.53 1850
C370/C374 A 5 x 6 9.525 13.80 3.35 19.0 9.70 1.53 1.53 1847
C373 A 5 x 6 9.525 14.00 3.96 18.6 9.84 1.33 1.53 1850
C382 A 5 x 6 9.525 14.40 3.78 19.6 9.96 1.60 1.60 2097
C395 A 6 x 5 9.525 14.00 3.35 19.0 9.31 1.53 1.53 1847
C499/C498 A 4 x 5 12.70 10.80 3.92 15.4 11.43 1.33 1.53 1878
C509 A 4 x 5 12.70 10.80 3.92 15.8 11.90 1.53 1.53 1847
C497/TC495 A 5 x 6 12.70 13.80 3.92 19.0 11.43 1.53 1.53 2296
C505 A 5 x 6 12.70 13.80 3.92 19.0 12.00 1.53 1.53 2296
C495 A 6 x 5 12.70 13.80 3.92 19.0 11.43 1.53 1.53 2296

Silent chain

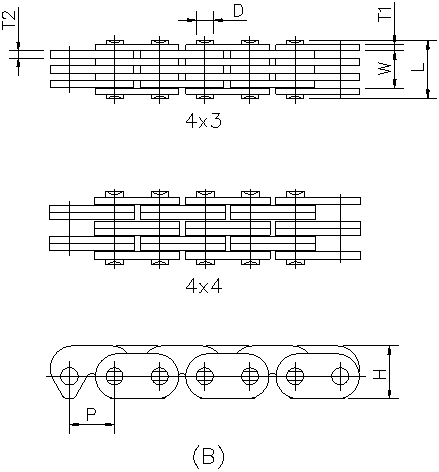

 CHAIN NO. TYPE Locing Pitch Width Pin Plate Average
 Ultimate
Strength
kgf
P W D(max) L H T1 T2
C511 B 4 x 3 8.00 6.57 3.00 10.4 9.40 1.03 1.28 1000
C510 B 4 x 4 8.00 7.85 3.00 11.7 9.40 1.03 1.28 1143

Silent chain

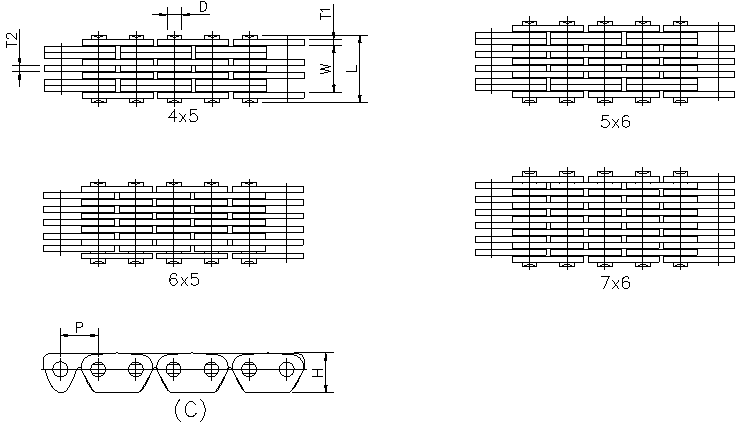

 CHAIN NO. TYPE Locing Pitch Width Pin Plate Average
 Ultimate
Strength
kgf
P W(min) D(max) L H T1 T2
C385 C 4 x 5 9.525 10.80 3.35 15.8 10.20 1.53 1.53 2000
C362 C 5 x 6 9.525 13.80 3.35 19.0 10.20 1.53 1.53 2449
C388 C 5 x 6 9.525 13.80 3.35 19.0 10.20 1.53 1.53 2449
C380 C 6 x 5 9.525 13.80 3.35 19.0 10.20 1.53 1.53 2449
C364 C 7 x 6 9.525 16.90 3.35 22.1 10.20 1.53 1.53 2515

Silent chain

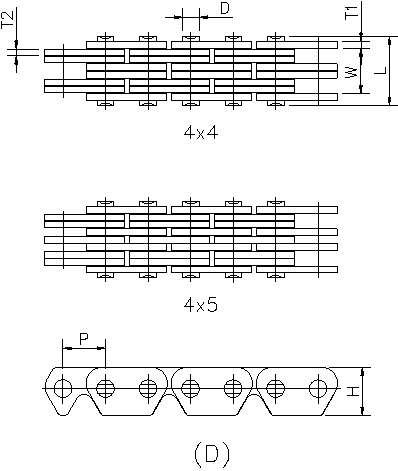

 CHAIN NO. TYPE Locing Pitch Width Pin Plate Average
 Ultimate
Strength
kgf
P W(min) D(max) L H T1 T2
C381A D 4 x 4 8.20 8.15 3.00 11.9 8.50 1.03 1.33 1531
C393/C394 D 4 x 5 8.20 9.20 3.00 13.1 8.60 1.03 1.30 1531
C383 D 4 x 4 9.525 8.10 3.92 13.3 10.85 1.53 1.33 1701
C384 D 4 x 4 9.525 8.10 3.92 13.3 10.85 1.53 1.33 1701
C384A D 4 x 4 9.525 7.80 4.09 12.9 10.90 1.53 1.28 1633

Silent chain

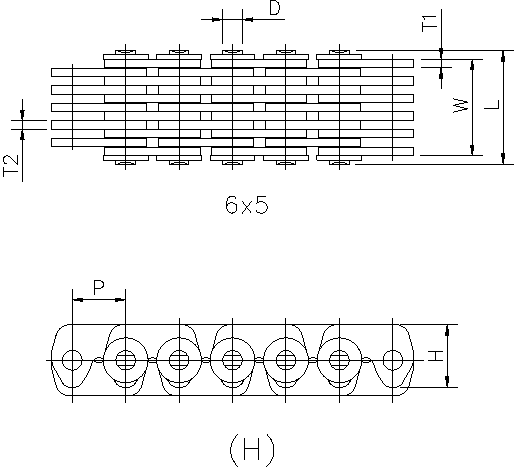

 CHAIN NO. TYPE Locing Pitch Width Pin Plate Average
 Ultimate
Strength
kgf
P W(min) D(max) L H T1 T2
C397/
4663635
H 6 x 5 9.525 17.15 3.47 20.25 11.15 1.53 1.53 2700

Silent chain

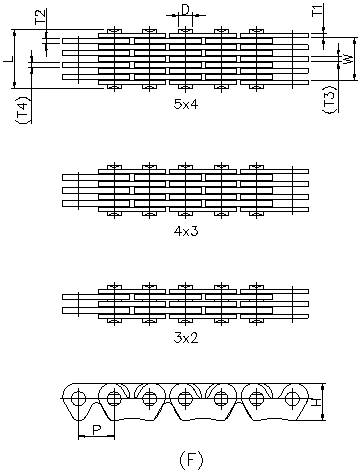

 CHAIN NO. TYPE Locing Pitch Width Pin LinkPlate Average
 Ultimate
Strength
kgf
P(mm) W(min) D(max) L H(max) T1/(T3) T2/(T4)
SCR04-5 F 3x2 6.35 3.15 2.50 6.20 6.88 0.8 1.0 630
SCR04-7 F 4x3 6.35 5.25 2.50 8.25 6.88 0.8 1.0 900
SCR04-7(T) F 4x3 6.35 5.25 2.50 8.75 6.68 1.0 1.0 920
776266 F 5x4 6.35 7.25 2.50 10.50 6.88 0.83 1.03 1224
C762 F 5x4 6.35 7.90 2.40 11.00 6.70 0.83/(1.23) 1.23/(1.03) 1224
J35R F 5x4 6.35 8.75 2.40 11.90 6.88 0.83 1.23 1224

Silent chain

 CHAIN NO. TYPE Locing Pitch Width Pin LinkPlate Average
 Ultimate
Strength
kgf
P(mm) W(min) D(max) L H(max) T1/(T3) T2
SCA04-5 G 3x2 6.35 3.15 2.50 6.20 6.88 0.8 1.0 630
J35E G 4x3 6.35 6.30 2.70 9.40 7.12 0.83/(1,03) 1.40 920
NS250 G 4x3 6.35 6.30 2.70 9.40 6.90 0.83/(1.03) 1.38 920
SCA04-7 G 4x3 6.35 5.25 2.50 8.25 6.88 0.8 1.0 900
SCA04-7(T) G 4x3 6.35 5.25 2.50 8.75 6.88 1.0 1.0 920
SCA04-8 G 4x4 6.35 6.20 2.50 9.70 6.88 1.0 1.0 1110
SCA0412H G 4x4 6.35 7.40 2.70 11.30 6.88 1.2 1.2 1224
DH113 G 4x5 6.35 8.80 2.50 12.70 7.03 1.23 1.23 1224
SCA04-9 G 5x4 6.35 7.25 2.50 11.00 6.88 1.0 1.0 1224
SCA04H-9 G 5x4 6.35 8.78 2.70 11.90 6.90 0.83/(1.03) 1.38 1224

Silent chain

 CHAIN NO. TYPE Locing Pitch Width Pin LinkPlate Average
 Ultimate
Strength
kgf
P(mm) W(min) D(max) L H(max) T1 T2
C7168/NS750 E 5x4 6.35 8.75 2.40 12.30 6.88 1.03 1.38 1224
I3028-8U300 E 5x4 6.35 8.75 2.40 12.30 6.88 1.03 1.38 1224
J35B E 5x4 6.35 8.75 2.40 12.30 6.88 1.03 1.23 1224

Silent chain

 CHAIN NO. TYPE Locing Pitch Width Pin LinkPlate Average
 Ultimate
Strength
kgf
P(mm) W(min) D(max) L H(max) T1 T2/(T3)
J35D J 6x5 6.35 11.20 2.40 15.40 8.0 1.38 1.38/(1.03) 1531
