Product Item:HXST-290
Model:Nickel-Plated Chain
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
Nickel-Plated Chain, its plate is coated with nickel.The specification includes 25NP-160NP,04BNP-32BNP. Nickel-plated chain is most commonly used for outdoor situations, or in a mildly corrosive atmosphere. Nickel-plating of all components prior to assembly assures uniform coverage to produce maximum effect of the plating process. While selecting chains, please bear in mind that the corrosion resistance of nickel-plated chains is far less than that of stainless steel chains.
|

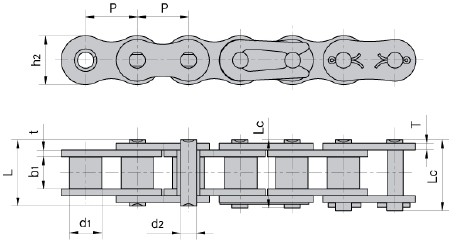

Chain no. |
Pitch |
Roller Diameter |
Width Between Inner plate |
Pin Diameter |
Pin Length |
Inner |
Plate thickness |
Breaking load |
Weight Per Meter |
||
| p |
D1 Max |
B1 min |
D2 Max |
L Max |
Lc Max |
H2 Max |
T Max |
Q | q | ||
| mm | mm | Mm | Mm | mm | mm | Mm | mm | KN/LB | Km/m | ||
| 25NP | 6.35 | 3.30 | 3.18 | 2.31 | 7.90 | 8.40 | 6.00 | 0.80 | 3.50/795 | 0.15 | |
| 35NP | 9.525 | 5.08 | 4.77 | 3.58 | 12.40 | 13.17 | 9.00 | 1.30 | 7.90/1795 | 0.33 | |
| 41NP | 12.70 | 7.77 | 6.25 | 3.58 | 13.75 | 15.00 | 9.91 | 1.30 | 6.67/1516 | 0.41 | |
| 40NP | 12.70 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 14.10/3205 | 0.62 | |
| 50NP | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 22.20/5045 | 1.02 | |
| 60NP | 19.05 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 31.80/7227 | 1.50 | |
| 80NP | 25.40 | 15.88 | 15.75 | 7.92 | 32.70 | 35.00 | 24.00 | 3.25 | 56.70/12886 | 2.60 | |
| 100NP | 31.75 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 88.50/20114 | 3.91 | |
| 120NP | 38.10 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 127.00/28864 | 5.62 | |
| 140NP | 44.45 | 25.40 | 25.22 | 12..70 | 54.40 | 59.00 | 41.00 | 5.60 | 172.40/39182 | 7.50 | |
| 160NP | 50.80 | 28.58 | 31.55 | 14.27 | 64.80 | 69.60 | 47.80 | 6.40 | 226.80/51545 | 10.10 | |
| 04BNP | 6.00 | 4.00 | 2.80 | 1.85 | 6.80 | 7.80 | 5.00 | 0.60 | 3.00/682 | 0.11 | |
| 05BNP | 8.00 | 5.00 | 3.00 | 2.31 | 8.20 | 8.90 | 7.10 | 0.80 | 5.00/1136 | 0.20 | |
| 06BNP | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | 9.00/2045 | 0.41 | |
| 08BNP | 12.70 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 18.00/4091 | 0.69 | |
| 10BNP | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | 22.40/5091 | 0.93 | |
| 12BNP | 19.05 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | 29.00/6591 | 1.15 | |
| 16BNP | 25.40 | 15.88 | 17.02 | 8.28 | 36.10 | 37.40 | 21.00 | 4.15/3.1 | 60.00/13636 | 2.71 | |
| 20BNP | 31.75 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.40 | 4.5/3.5 | 95.00/21591 | 3.70 | |
| 24BNP | 38.10 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.0/4.8 | 160.0/36364 | 7.10 | |
| 28BNP | 44.45 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.5/6.0 | 200.0/45455 | 8.50 | |
| 32BNP | 50.80 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.0/6.0 | 250.0/56818 |
10.25 |
|
