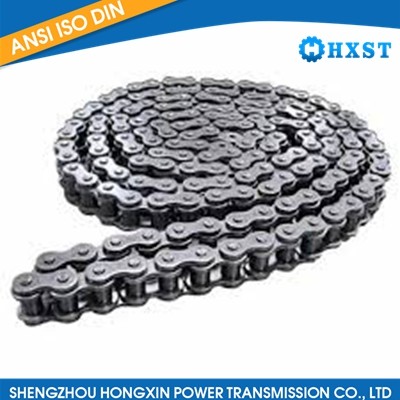

Motorcycle Chain
  1. Motorcycle Chain

Motorcycle Chain

Product Item:HXPT-300

Model: Motorcycle Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Motorcycle Chain
Send Inquiry Live chat

Description


Motorcycle chain

motorcycle roller chains are made of select alloy steel, and have been undergone strict heat treatment and pre-lubed with special formulated chain oil.  motorcycle chain has met or surpassed the traditional major brands of motorcycle chains on the worldwide market in such major chain performance data as chain precision, wear and shock resistance, tensile strength and elongation ratio. 420,420H,428,428H,520,520H,530,530H,630,630H.


CHAIN NO. Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf
Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H1 H2 T1 T2 D F G
25 1/4" 6.35 3.15 3.30 5.20 6.02 0.75 0.75 2.30 3.95 4.65 450 0.14
25-2 1/4" 6.35 3.15 3.30 5.20 6.02 0.75 0.75 2.30 7.28 7.95 900 0.26
25H 1/4" 6.35 3.15 3.30 5.20 6.02 1.00 1.00 2.30 4.35 5.15 540 0.16
420 1/2" 12.70 6.35 7.77 10.40 12.00 1.50 1.50 3.96 7.35 8.75 1680 0.60
420H 1/2" 12.70 6.35 7.77 10.40 12.00 1.80 1.80 3.96 8.00 9.40 1800 0.68
428 1/2" 12.70 7.75 8.51 10.60 12.00 1.60 1.60 4.45 8.40 9.75 1885 0.74
428H 1/2" 12.70 7.94 8.51 11.30 12.30 1.80 1.80 4.45 9.00 10.30 2200 0.90
520 5/8" 15.875 6.35 10.16 13.00 15.10 2.00 2.00 5.08 8.85 10.25 3100 0.95
520H 5/8" 15.875 6.35 10.16 13.00 15.00 2.40 2.40 5.24 9.58 10.95 3200 1.08
525 5/8" 15.875 7.94 10.16 13.00 15.10 2.00 2.00 5.08 9.70 11.20 3010 1.02
525H 5/8" 15.875 7.94 10.16 13.00 15.10 2.40 2.40 5.24 10.50 11.70 3160 1.15
530 5/8" 15.875 9.40 10.16 13.00 15.10 2.00 2.00 5.08 10.45 11.90 3010 1.08
530H 5/8" 15.875 9.40 10.16 13.00 15.10 2.40 2.40 5.08 11.25 12.75 3010 1.21
630 3/4" 19.05 9.40 11.91 15.60 18.00 2.40 2.40 5.96 11.35 12.85 3770 1.44
630H 3/4" 19.05 9.40 11.91 15.60 18.00 3.20 3.20 5.96 13.10 14.60 3770 1.80
