L Jaw Type Coupling
  1. L Jaw Type Coupling

L Jaw Type Coupling

Product Item:HXST-912

Model: L Jaw Type Coupling

Material:The hubs of an L Jaw Type Coupling are typically made from materials such as aluminum, steel, or cast iron, while the elastomeric spider is made from materials like polyurethane or rubber

Flexibility and Misalignment Compensation: The elastomeric spider allows for angular, parallel, and axial misalignments between the connected shafts. It can accommodate small misalignments while still

Application Versatility: L Jaw Type Couplings find application in a wide range of industries, including manufacturing, automation, robotics, pumps, conveyors, and other mechanical systems.

L Jaw Type Coupling , what is a jaw coupling , jaw coupling dimensions , jaw type couplings , jaw coupling installation
Send InquiryLive chat

Description

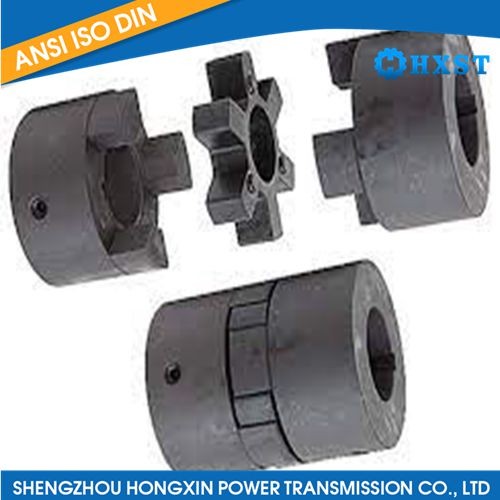

The L jaw type coupling is a type of flexible coupling that is commonly used to connect two shafts for torque transmission. It consists of two hubs with curved jaws and an elastomeric spider insert.

Key features of an L jaw type coupling include:

Jaw Design: The coupling hubs have curved jaws that interlock with each other. These jaws provide flexibility and allow for angular misalignment compensation between the connected shafts.

Elastomeric Spider Insert: The L jaw coupling uses an elastomeric spider insert made of materials such as polyurethane or rubber. The spider insert sits between the jaws of the hubs and acts as a cushion, providing vibration dampening and shock absorption.

Misalignment Compensation: The design of the L jaw coupling allows it to accommodate angular misalignment between the shafts. It can handle small angular offsets while maintaining torque transmission efficiency and reducing stress on the system.

Torque Transmission: L jaw couplings are capable of transmitting moderate to high torque loads between the connected shafts. The curved jaws provide a secure connection and efficient power transfer.

Easy Installation and Maintenance: L jaw couplings are relatively easy to install and require minimal maintenance. They usually consist of two hubs and a removable spider insert, making replacement straightforward when needed.

L jaw couplings are commonly used in various industrial applications, including pumps, fans, conveyors, and general machinery. Their ability to compensate for angular misalignment and provide vibration dampening makes them suitable for systems where smooth operation and reduced wear are important.

It's important to note that L jaw couplings have specific torque and misalignment limits specified by manufacturers. Operating beyond these limits can result in premature wear, reduced coupling life, and potential equipment damage. Therefore, it's crucial to follow the manufacturer's guidelines for proper selection, installation, and maintenance of L jaw type couplings.
