Heavy Type Chain
  1. Heavy Type Chain

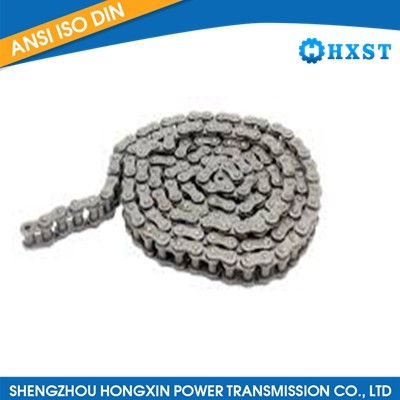

Heavy Type Chain

Product Item:HXPT-286

Model:Heavy Type Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Heavy Type Chain
Send Inquiry Live chat

Description

Heavy Type Chain

Heavy type chain are also referred as heavy duty roller chain.The plate of the is Roller Chain thicker than normal plate.Heavy type chain provides
increased fatigue resistance for those drives subjected to heavy shock loads, multiple stops/starts or reversing as found in mining, quarrying, rock drilling, forestry and construction machinery.The specification is like,60H,80H,100H,120H,140H,160H,etc.

Heavy type chain

CHAIN NO.
(ANSI)
Pitch Width Roller Plate Pin

Transverse
Pitch

Average
Ultimate
Strength
kgf

Approx Weight
kg/m

P W Dia Height Thickness Dia Lengths
inch mm mm R H1 H2 T1 T2 D F G G1 C
25H 1/4" 6.35 3.18 3.30 5.00 5.80 1.00 1.00 2.30 4.50 5.10 --- --- 560 0.16
50H 5/8" 15.875 9.53 10.16 13.00 14.80 2.40 2.40 5.06 10.90 12.40 12.90 --- 3100 1.12
50H-2 5/8" 15.875 9.53 10.16 13.00 14.80 2.40 2.40 5.06 20.65 22.25 22.75 --- 6200 2.25
60H 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 14.10 15.70 16.60 --- 4400 1.81
60H-2 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 27.20 28.80 29.70 26.11 8800 3.57
60H-3 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 40.20 41.80 42.70 26.11 13200 5.16
80H 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 17.90 --- 20.80 --- 8000 2.95
80H-2 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 34.20 --- 37.10 32.59 16000 5.85
80H-3 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 50.50 --- 53.40 32.59 24000 8.32
100H 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 21.70 --- 24.90 --- 12000 4.45
100H-2 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 41.25 --- 44.45 39.09 24000 8.34
100H-3 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 60.80 --- 64.00 39.09 36000 12.03
120H 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 26.98 --- 30.57 --- 16000 6.78
120H-2 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 51.40 --- 55.05 48.90 32000 13.45

120H-3

1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 75.90 --- 79.45 48.90 48000 20.13

140H

1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 28.90 --- 33.10 --- 21500 8.12

140H-2

1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 55.15 --- 59.05 52.20 43000 16.10

140H-3

1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 81.1 --- 85.30 52.20 64500 24.02

160H

2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 34.15 --- 38.85 --- 27500 10.87

160H-2

2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 65.10 --- 69.80 61.90 55000 20.85

160H-3

2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 96.05 --- 100.75 61.90 82500 30.83

180H

2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 38.10 --- 43.80 --- 36000 15.20

180H-2

2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 72.68 --- 78.38 69.16 72000 30.10

180H-3

2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 107.26 --- 112.96 69.16 108000 45.00

200H

2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 42.75 --- 50.05 --- 52000 17.8

200H-2

2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 81.91 --- 89.20 78.31 104000 35.20

200H-3

2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 121.06 --- 128.36 78.31 156000 52.50

Heavy type chain
CHAIN NO. Pitch Width Roller Plate Pin

Average
Ultimate
Strength
kgf

Approx Weight
kg/m

P W Dia Height Thickness Dia Lengths

inch

mm

mm R H1 H2 T1 T2 D F G
08BH

0.5"

12.70

7.75 8.50 11.20 12.20 2.00 2.00 4.44 9.30 10.70

2400

0.85

10BH

0.625""

15.875

9.65 10.16 13.00 14.60 2.00 2.00 5.06 10.10 11.65

3100

1.01

12BH

0.75"

19.05

11.68 12.07 16.00 16.00 2.40 2.40 6.12 12.30 13.80 4500 1.42
