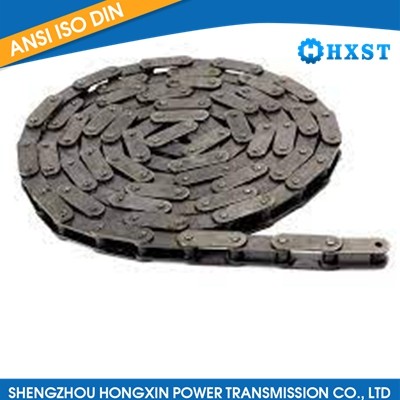

Double Pitch Roller Chain

Product Item:HXPT-285

Model:Double Pitch Roller Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Double pitch roller chain

Double pitch roller chain, also referred as extended pitch conveyor roller chains, are built in accordance with ANSI B29.4. Products with attachments are widely used in conveyor applications when loads are low and speeds are moderate. Available variations include larger diameter rollers and hollow pin design. These chains can also be supplied in stainless steel, nickel-plated or zinc-plated versions (oversized ROLLER CHAIN can be steel or engineering plastics).The main specification includes C2040,C2042,C2050,C2052,C2060H,C2062H,C2080,C2082,C2080H,C2082H etc.

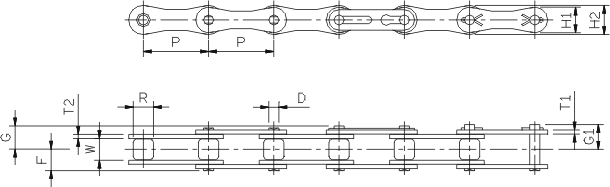

CHAIN NO.
(ANSI) Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf Approx Weight
kg/m

P
W Dia
Height

Thickness
Dia
Lengths

inch

mm
mm R H1 H2 T1 T2 D F G G1

A2040 1" 25.40 7.94 7.92 10.10 11.70 1.50 1.50 3.96 8.20 9.35 10.10 1850 0.40

A2050 1-1/4" 31.75 9.53 10.16 12.60 14.60 2.00 2.00 5.06 10.10 11.65 12.60 3100 0.66

A2060 1-1/2" 38.10 12.70 11.91 15.00 17.10 2.40 2.40 5.95 12.50 14.15 15.40 4400 0.93

CHAIN NO.
(ANSI) Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf Approx Weight
kg/m

P W Dia
Height
Thickness Dia Lengths

inch mm mm R H T1 T2 D F G G1

C2040 1" 25.40 7.94 7.92 11.70 1.50 1.50 3.96 8.20 9.35 10.10 1850 0.49

C2050 1-1/4" 31.75 9.53 10.16 14.60 2.00 2.00 5.06 10.10 11.65 12.60 3100 0.84

C2060H 1-1/2" 38.10 12.70 11.91 17.10 3.10 3.10 5.95 14.10 15.70 16.60 4400 1.45

C2080H 2" 50.80 15.88 15.88 23.00 3.90 3.90 7.94 17.90 --- 20.80 8000 2.41

C2100H 2-1/2" 63.50 19.05 19.05 28.90 4.70 4.70 9.52 21.70 --- 24.90 12000 3.50

C2120H 3" 76.20 25.40 22.20 35.00 5.60 5.60 11.10 26.98 --- 30.57 16000 6.00

C2160H 4" 101.60 31.75 28.58 48.00 7.20 7.20 14.28 34.15 --- 38.85 27500 8.90

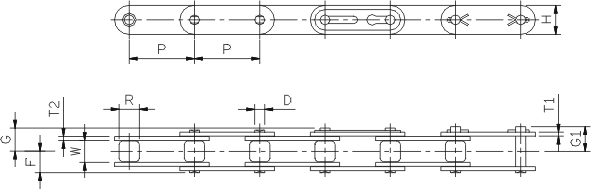

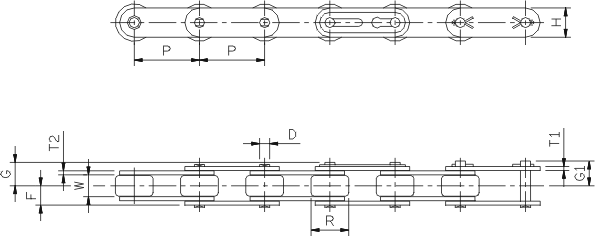

DOUBLE PITCH Roller Chain （OVERSIZED ROLLER）

CHAIN NO.
(ANSI) >Pitch Width Roller Plate Pin
Average
Ultimate
Strength
kgf

Approx Weight
kg/m

P
W Dia Height Thickness Dia Lengths

inch mm mm R H T1 T2 D F G G1

C2042 1" 25.40 7.94 15.88 11.70 1.50 1.50 3.96 8.20 9.35 10.10 1850 0.86

C2052 1-1/4" 31.75 9.53 19.05 14.60 2.00 2.00 5.06 10.10 11.65 12.60 3100 1.32

C2062H 1-1/2" 38.10 12.70 22.23 17.10 3.10 3.10 5.95 14.10 15.70 16.60 4400 2.17

C2082H 2" 50.80 15.88 28.58 23.00 3.90 3.90 7.94 17.90 --- 20.80 8000 2.87

C2102H 2-1/2" 63.50 19.05 39.67 28.90 4.70 4.70 9.52 21.70 --- 24.90 12000 4.68

C2122H 3" 76.20 25.40 44.45 35.00 5.60 5.60 11.10 26.98 --- 30.57 16000 8.00

C2162H 4" 101.60 31.75 57.15 48.00 7.20 7.20 14.28 34.15 --- 38.85 27500 13.6

CHAIN NO. (ANSI)	Pitch		Width	Roller	Plate				Pin				Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height		Thickness		Dia	Lengths
	inch	mm	mm	R	H1	H2	T1	T2	D	F	G	G1
A2040	1"	25.40	7.94	7.92	10.10	11.70	1.50	1.50	3.96	8.20	9.35	10.10	1850	0.40
A2050	1-1/4"	31.75	9.53	10.16	12.60	14.60	2.00	2.00	5.06	10.10	11.65	12.60	3100	0.66
A2060	1-1/2"	38.10	12.70	11.91	15.00	17.10	2.40	2.40	5.95	12.50	14.15	15.40	4400	0.93

CHAIN NO. (ANSI)	>Pitch		Width	Roller	Plate			Pin				Average Ultimate Strength kgf	Approx Weight kg/m
	P		W	Dia	Height	Thickness		Dia	Lengths
	inch	mm	mm	R	H	T1	T2	D	F	G	G1
C2042	1"	25.40	7.94	15.88	11.70	1.50	1.50	3.96	8.20	9.35	10.10	1850	0.86
C2052	1-1/4"	31.75	9.53	19.05	14.60	2.00	2.00	5.06	10.10	11.65	12.60	3100	1.32
C2062H	1-1/2"	38.10	12.70	22.23	17.10	3.10	3.10	5.95	14.10	15.70	16.60	4400	2.17
C2082H	2"	50.80	15.88	28.58	23.00	3.90	3.90	7.94	17.90	---	20.80	8000	2.87
C2102H	2-1/2"	63.50	19.05	39.67	28.90	4.70	4.70	9.52	21.70	---	24.90	12000	4.68
C2122H	3"	76.20	25.40	44.45	35.00	5.60	5.60	11.10	26.98	---	30.57	16000	8.00
C2162H	4"	101.60	31.75	57.15	48.00	7.20	7.20	14.28	34.15	---	38.85	27500	13.6
