Product Item:HXST-341

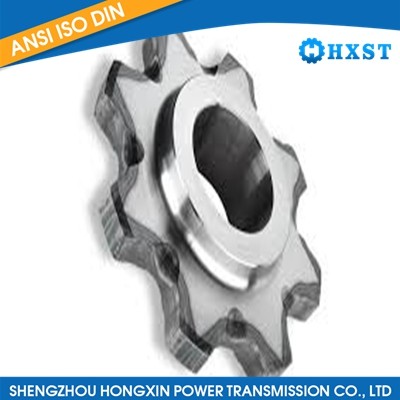

Model：Conveyor Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.

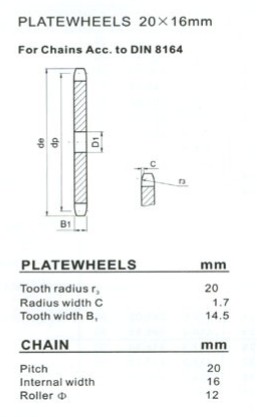

Conveyor sprocket is also reffered as sprocket or platewheel for the Conveyor Chain.It include platewheels 20*16mm, Platewheels P50/P75, Platewheels P.100.In the follow form,we have given the datas of the conveyor sprocket for 20*16mm.
| Z | De | Dp | S/D1 |
|
12 14 15 16 17 19 20 21 23 26 27 35 38 39 40 |
85.7 98.3 104.6 110.9 117.2 129.9 136.2 142.6 155.3 174.3 180.7 231.5 250.6 256.9 263.3 |
77.28 89.88 96.18 102.52 108.82 121.52 127.84 134.18 146.88 165.92 172.27 223.12 242.18 248.54 254.92 |
14 14 14 16 16 16 16 20 20 20 20 20 25 25 25 |
