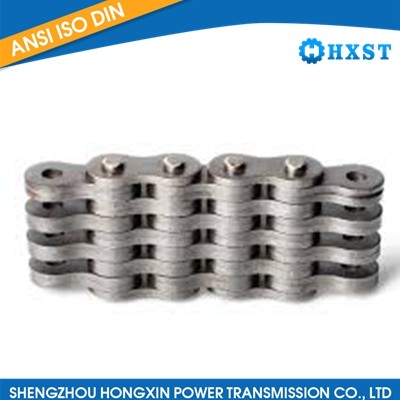

BL Leaf Chain

Product Item:HXPT-307

Model: BL Leaf Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

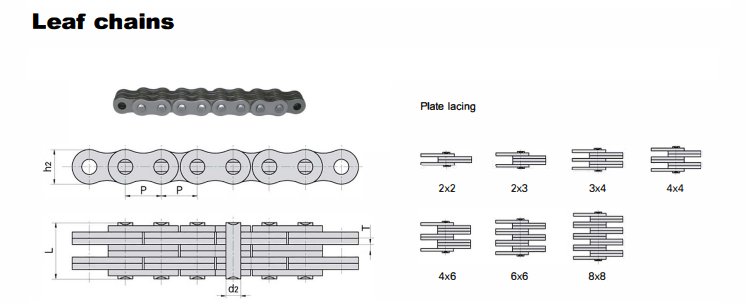

CHAIN NO.	ISO/DIN	Lacing	Pitch P		Plate			Pin		verage Ultimate Strength kgf	Approx Weight kg/m
			Pitch P		Height	Hole	Thickness	Dia	Lengths
			inch	mm	H	E(min)	T	D	L
BL422	LH0822	2 x 2	1/2"	12.70	12.00	5.12	2.00	5.06	10.60	3000	0.69
BL423	LH0823	2 x 3							12.60	3000	0.77
BL434	LH0834	3 x 4							16.80	4500	1.07
BL444	LH0844	4 x 4							18.90	6000	1.19
BL446	LH0846	4 x 6							23.10	6000	1.48
BL466	LH0866	6 x 6							27.20	9000	1.80
BL523	LH1023	2 x 3	5/8"	15.875	14.85	5.98	2.40	5.95	14.85	4400	1.13
BL534	LH1034	3 x 4							19.60	6600	1.56
BL544	LH1044	4 x 4							22.30	8800	1.78
BL546	LH1046	4 x 6							27.30	8800	2.22
BL566	LH1066	6 x 6							32.25	13200	2.74
BL623	LH1223	2 x 3	3/4"	19.05	17.90	7.96	3.15	7.94	19.35	7000	1.82
BL634	LH1234	3 x 4							25.95	10500	2.52
BL644	LH1244	4 x 4							29.50	14000	2.87
BL646	LH1246	4 x 6							36.00	14000	3.57
BL666	LH1266	6 x 6							42.35	21000	4.27
BL822	LH1622	2 x 2	1"	25.40	24.00	9.56	3.90	9.52	21.11	11500	2.30
BL823	LH1623	2 x 3							25.25	11500	3.15
BL834	LH1634	3 x 4							33.53	17250	4.37
BL844	LH1644	4 x 4							37.67	23000	4.98
BL846	LH1646	4 x 6							45.95	23000	6.20
BL866	LH1666	6 x 6							54.23	34500	7.50
BL1023	LH2023	2 x 3	1-1/4"	31.75	30.10	11.14	4.70	11.10	29.70	15500	3.85
BL1034	LH2034	3 x 4							39.50	23250	5.84
BL1044	LH2044	4 x 4							44.40	31000	7.20
BL1046	LH2046	4 x 6							54.20	31000	8.24
BL1066	LH2066	6 x 6							64.00	46500	10.63
BL1222	LH2422	2 x 2	1-1/2"	38.10	35.00	12.74	5.60	12.70	29.05	20500	4.83
BL1223	LH2423	2 x 3							34.85	20500	6.54
BL1234	LH2434	3 x 4							46.50	30750	9.10
BL1244	LH2444	4 x 4							52.30	41000	10.39
BL1246	LH2446	4 x 6							63.95	41000	12.01
BL1266	LH2466	6 x 6							75.60	61500	14.58

Any other enquiry than above spec. is welcomed

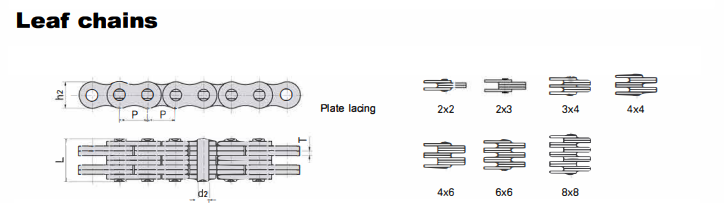

CHAIN NO.	ISO/DIN	Lacing	Pitch P		Plate			Pin		verage Ultimate Strength kgf	Approx Weight kg/m
			Pitch P		Height	Hole	Thickness	Dia	Lengths
			inch	mm	H	E(min)	T	D	L
BL1422	LH2822	2 x 2	1-3/4"	44.45		14.31	6.40	14.28	32.90	23000	7.20
BL1423	LH2823	2 x 3							39.40	23000	9.05
BL1434	LH2834	3 x 4							52.60	38000	12.60
BL1444	LH2844	4 x 4							59.30	46000	14.41
BL1446	LH2846	4 x 6							72.40	46000	17.98
BL1466T	LH2866	6 x 6							85.70	69000	21.52
BL1488T	LH2888	8 x 8							112.00	92000	28.59
BL1622	LH3222	2 x 2	2"	50.80	48.00	17.49	7.20	17.45	36.40	35000	9.72
BL1623	LH3223	2 x 3							43.90	35000	12.11
BL1634	LH3234	3 x 4							59.10	55000	16.86
BL1644	LH3244	4 x 4							66.60	70000	19.22
BL1646	LH3246	4 x 6							81.70	70000	23.92
BL1666T	LH3266	6 x 6							95.80	105000	28.71
BL1688T	LH3288	8 x 8							125.60	140000	38.19
